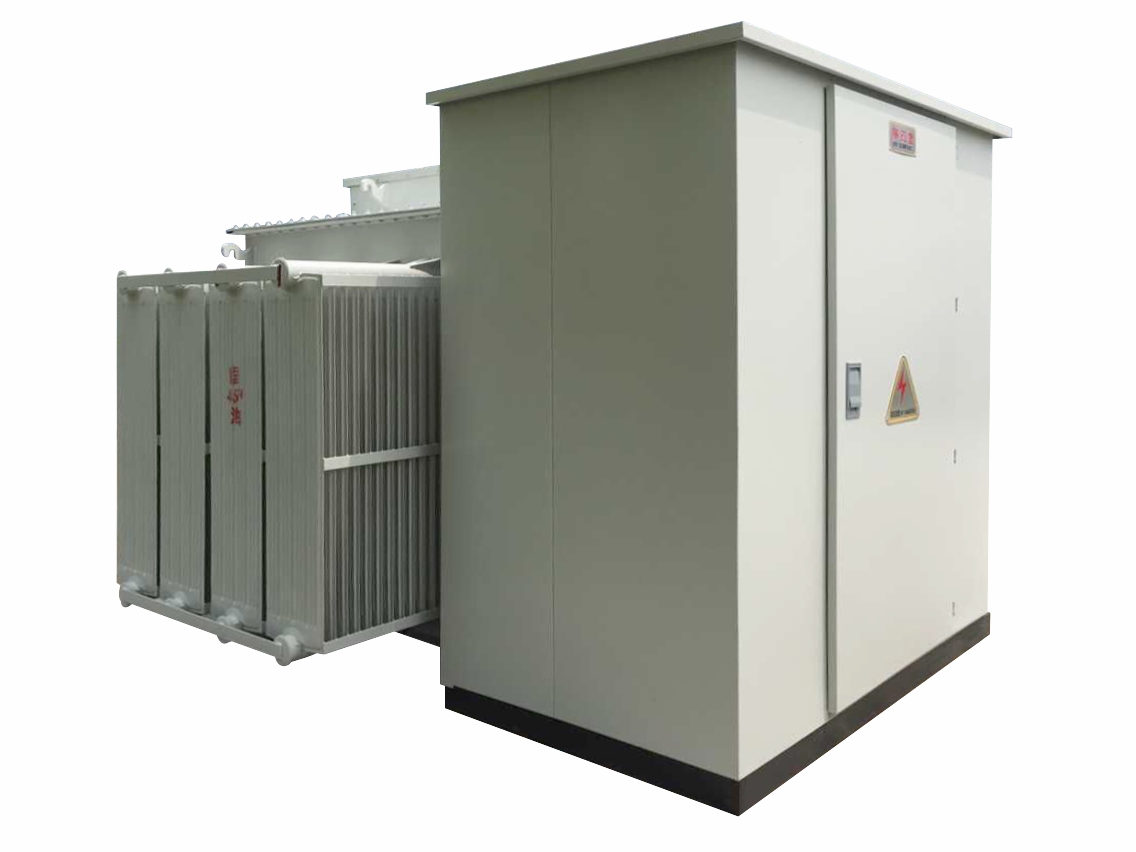

1600kva Box Type Power Substation Transformer

Product Characteristic

All the SGOB 1600kva Box Type Power Substation Transformer made in China is integrated and assembled in the factory at one time, including design, manufacturing, assembly and wiring.  After strict debugging by the manufacturer and factory testing and inspection, it is delivered to ensure perfect delivery to the customer.

1600kva Compact Box Type Power Prefabricated Substation Transformer  has a compact structure and strong adaptability.  Its floor space is only 30% to 40% of that of traditional substations.  It supports various foundation forms and is suitable for space-constrained scenarios such as cities and industrial zones.

This SGOB 1600kva Compact Box Type Power Substation Transformer fully enclosed structure features dust-proof, moisture-proof, anti-corrosion and heat insulation performance, with a protection level of IP54 or above, meeting the requirements for long-term stable outdoor operation.

It is safe and intelligent, featuring complete electrical interlock and protection functions. This Three phase 1600kva Box Type Power Substation Transformer can be optionally equipped with an intelligent monitoring system that supports remote status monitoring and fault early warning.

Support flexible customization and provide cost-effective solutions.  Support the configuration of transformer types (oil-immersed/dry), incoming and outgoing line methods, and casing materials according to user requirements, reducing the overall investment and operation and maintenance costs.

What’s the compositions of 1600kva Box Type Power Substation Transformer ?

1. High-voltage switch unit

SGOB 1600kva Box Type Power Substation Transformer serves as the power inlet of the substation and is typically equipped with fully insulated SF6 or solid-insulated ring main units.  The core components include load switches, high-voltage fuses and disconnectors, which can achieve standard power supply modes of dual power ring networks or single power terminals. The unit is equipped with a complete "five-prevention" interlock function and can be expanded with electric operation and monitoring interfaces, providing basic conditions for remote control and intelligent management.

2. Transformer unit

This unit is the core of electrical energy conversion and can be equipped with a 1600kVA oil-immersed or dry-type transformer according to project requirements. Oil-immersed transformers have good economy and high heat dissipation efficiency, making them a universal choice for outdoor applications.

3. Low-voltage distribution unit

This unit is responsible for the distribution, protection and management of electrical energy.  The main circuit is provided with overall protection by frame circuit breakers, and multiple branch circuits are equipped with molded case circuit breakers to achieve separate control. The unit is equipped with an intelligent reactive power compensation device as standard, which can automatically adjust the power factor of the system. At the same time, multi-functional meters are installed to monitor data such as current, voltage, power and energy consumption in real time, providing a basis for operation management.

4. Overall box structure

The box body adopts a "eye" shaped standardized module design, physically isolating and integrating the above three functional units into a sturdy household shell. The shell is usually made of anti-corrosion steel plates or non-metallic materials. Each compartment is independently sealed, and the overall protection level can reach IP54 or above, effectively resisting the erosion of wind, rain, dust and salt spray. The appearance design is compact, and the color and material can be customized according to the installation environment.
