SGOB 160kva Oil Immersed Transformer offers several other benefits. For instance, its oil-immersed construction provides excellent noise reduction, making it suitable for use in noise-sensitive environments. The transformer's oil also acts as a natural barrier against environmental contaminants, such as dust and moisture, further enhancing its durability and reliability.

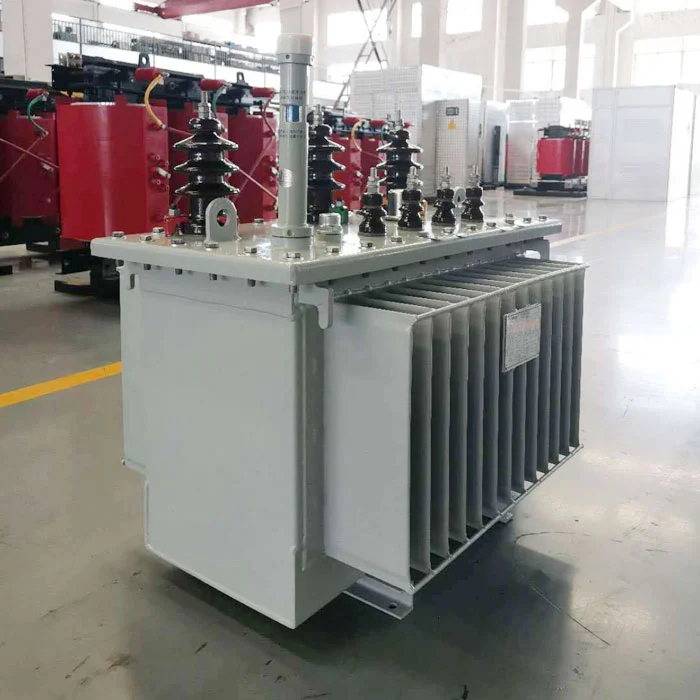

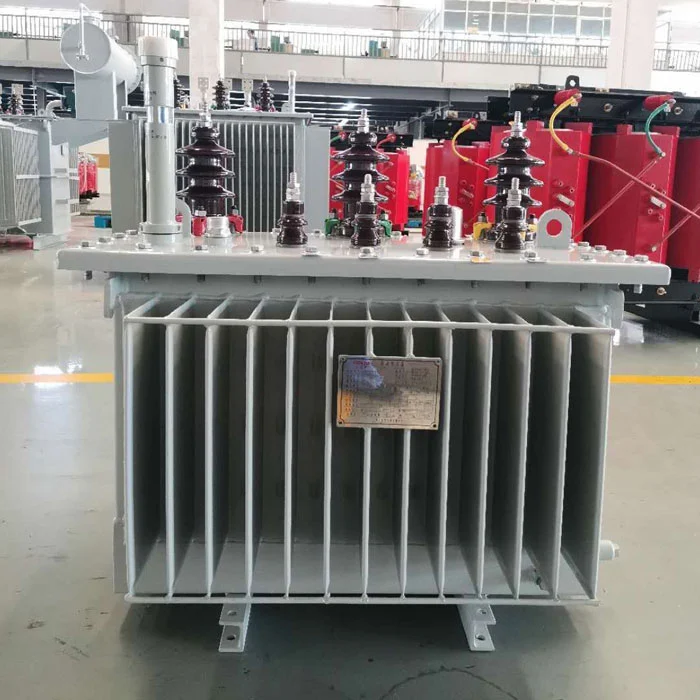

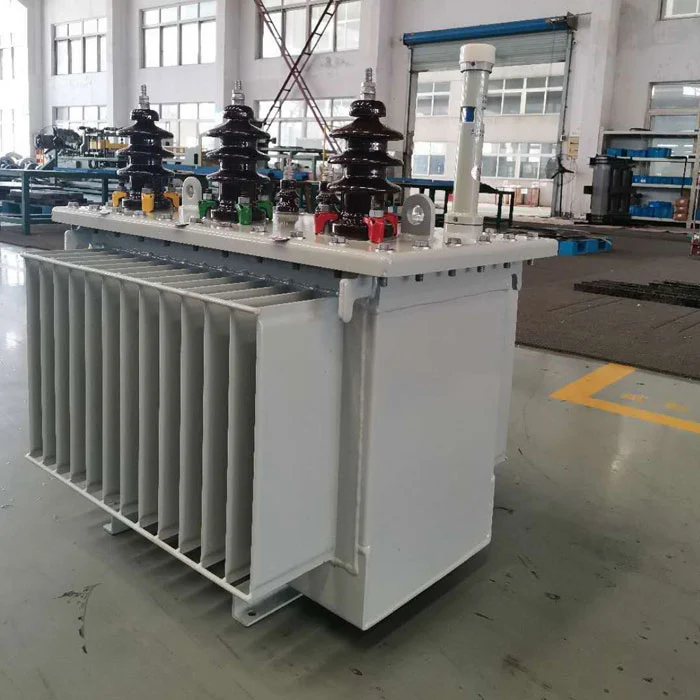

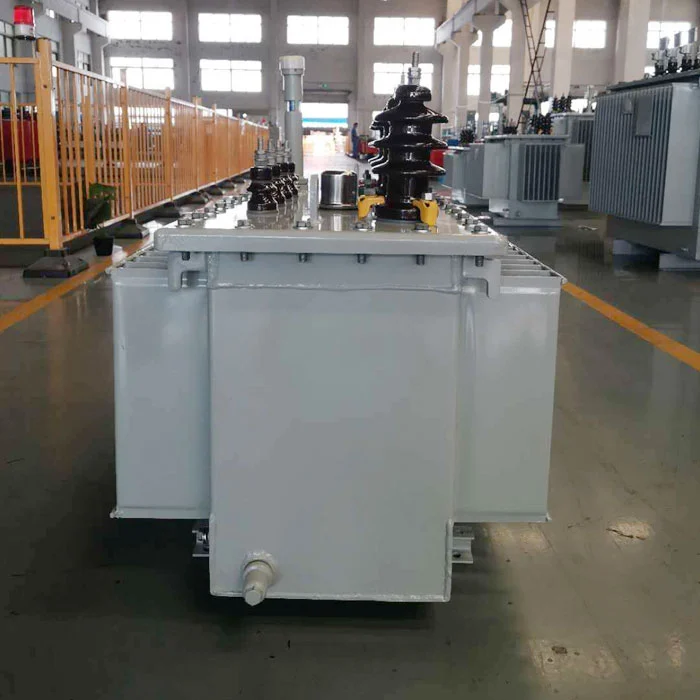

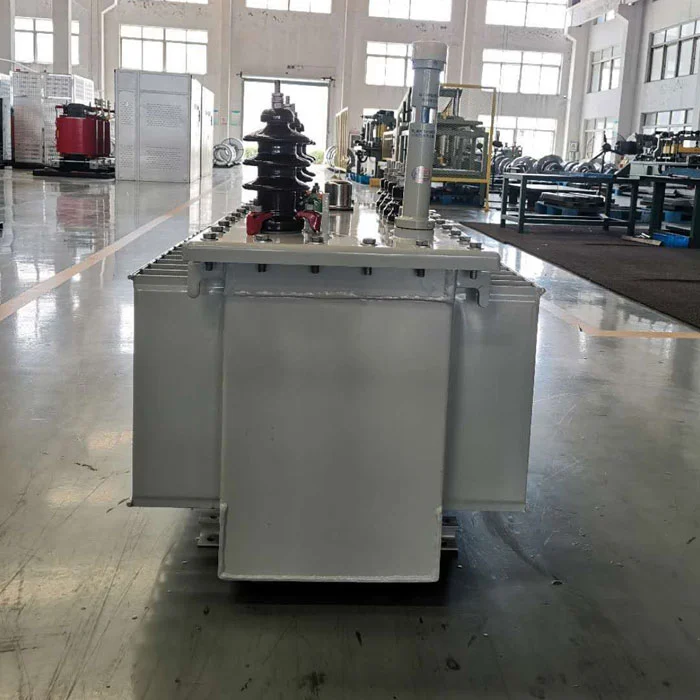

In the vast landscape of electrical equipment, transformers play a pivotal role in the distribution and regulation of electrical power. Among the myriad of transformer models available, the SGOB 160kva Oil Immersed Transformer stands out as a reliable and efficient solution for a wide range of applications.
Oil-immersed transformers, like the SGOB 160kva model, are designed with a core and windings that are submerged in transformer oil. This oil serves as both a coolant and an insulator, effectively dissipating heat generated during operation and protecting the transformer's internal components from electrical arcs and short circuits. The result is a transformer that is not only durable but also capable of maintaining stable performance under varying loads and environmental conditions.
The SGOB 160kva Oil Immersed Transformer is particularly suited for medium-voltage applications, where it can be used to step down high-voltage power from the grid to a lower voltage suitable for distribution to homes, businesses, and industrial facilities. Its 160kva capacity makes it ideal for a variety of settings, from small commercial buildings to larger residential complexes and light industrial operations.
In addition to its robust design and efficient performance, the SGOB 160kva Oil Immersed Transformer offers several other benefits. For instance, its oil-immersed construction provides excellent noise reduction, making it suitable for use in noise-sensitive environments. The transformer's oil also acts as a natural barrier against environmental contaminants, such as dust and moisture, further enhancing its durability and reliability.
Moreover, the SGOB 160kva Oil Immersed Transformer is designed with safety and ease of maintenance in mind. It features a robust housing that protects the internal components from physical damage and unauthorized access. Additionally, the transformer's oil-filled design allows for easy monitoring and maintenance of the oil level and quality, ensuring optimal performance and prolonging the transformer's lifespan.
As the demand for electrical power continues to grow, transformers like the SGOB 160kva Oil Immersed Transformer will play an increasingly critical role in the stable and efficient distribution of power. With their combination of durability, efficiency, and safety features, these transformers are poised to remain a staple in the electrical industry for years to come.
PRODUCT FEATURES
Our company's three-phase oil-diffused distribution transformer boasts a novel insulation structure that enhances its short-circuit resistance. The iron core is crafted from premium cold-rolled silicon steel sheets, while the high-voltage winding employs high-quality oxygen-free copper wire in a multi-layered cylindrical configuration. Furthermore, all fasteners undergo a specialized anti-loosening treatment to ensure secure assembly.
The 160kva Oil-Immersed Transformer is characterized by its high efficiency and low loss, significantly reducing power consumption and operational costs. This transformer offers notable social benefits and is a high-tech product actively promoted by the government.
Produced by a leading Chinese manufacturer, the SGOB 160kva Oil-Immersed Transformer represents a pinnacle of electrical engineering, designed to meet the stringent demands of contemporary power distribution systems. These transformers are crafted with precision and incorporate cutting-edge technology, renowned for their exceptional durability, efficiency, and reliability. As a trusted supplier in China, the manufacturer provides a comprehensive range of 160kva Oil-Immersed Transformers tailored to various applications, ensuring optimal performance and long-term value for customers globally.
RELIABLE STRUCTURE
Based on the traditional structure and mature technology,our company has made many improvements.
◆ The spiral coil with longitudinal oil passage has better internal heat dissipation
◆ The effective support of coil end face is improved,and the ability of short-circuit current resistance is stronger;
◆ New hoisting structure and body positioning structure are adopted to ensure more reliable in long-distance transportation and operate or
◆ We also have many unique and reliable structures to serve you;
◆ The transformer with higher performance level will have higher technical content.
HIGH QUALITY MATERIALS
A series of additional surface treatment,this smoother and has no burr Sharp angle,so that he load loss of transformer is lower and the electric.
With the improvement of performance level,the silicon steel sheet with lower unit loss is used to reduce the no-load loss of transformer.
Choose high quality laminated wood insulation,never crack,even under the action of short-circuit current.
High quality rubber sealing material is selected to effectively prevent
All raw materials have passed the quality inspection,and all raw material manufacturers have passed the strict examination according to the national standard IS09000.
OUR THREE PHASE OIL IMMERSED TRANSFORMERS
● New insulating structure to improve the anti-short circuit ability
● High-quality cold-rolled silicon steel iron core
● Selected high-quality oxygen-free copper wire
● Multi-layer cylindrical structure high-voltage windings
● Special anti-loose treatment for all of the fasteners.
PARAMETERS
| MODEL |
CAPACITY (KVA) |
HV (KV) |
LV (KV) |
NO LOAD LOSS (KW) |
IMPENDENCE (%) |
WEIGHT (KG) |
DIMENSION (L*W*H MM) |
| S11-M-30/10 | 30 | 6-20 | 0.2-0.4 | 0.10 | 4 | 325 | 750*470*930 |
| S11-M-50/10 | 50 | 0.13 | 4 | 420 | 800*490*1000 | ||
| S11-M-630/10 | 63 | 0.15 | 4 | 470 | 840*500*1010 | ||
| S11-M-80/10 | 80 | 0.18 | 4 | 540 | 870*510*1130 | ||
| S11-M-100/10 | 100 | 0.20 | 4 | 605 | 890*520*1140 | ||
| S11-M-125/10 | 125 | 0.24 | 4 | 680 | 920*590*1150 | ||
| S11-M-160/10 | 160 | 0.27 | 4 | 790 | 1110*580*1170 | ||
| S11-M-200/10 | 200 | 0.33 | 4 | 930 | 1160*620*1225 | ||
| S11-M-250/10 | 250 | 0.40 | 4 | 1100 | 1230*660*1270 | ||
| S11-M-315/10 | 315 | 0.48 | 4 | 1250 | 1250*680*1300 | ||
| S11-M-400/10 | 400 | 0.57 | 4 | 1550 | 1380*750*1380 | ||
| S11-M-500/10 | 500 | 0.68 | 4 | 1820 | 1430*770*1420 | ||
| S11-M-630/10 | 630 | 0.81 | 4.5 | 2065 | 1560*865*1480 | ||
| S11-M-800/10 | 800 | 0.98 | 4.5 | 2510 | 1620*880*1520 | ||
| S11-M-1000/10 | 1000 | 1.15 | 4.5 | 2890 | 1830*1070*1540 | ||
| S11-M-1250/10 | 1250 | 1.36 | 4.5 | 3425 | 1850*1100*1660 | ||
| S11-M-1600/10 | 1600 | 1.64 | 4.5 | 4175 | 1950*1290*1730 | ||
| S11-M-2000/10 | 2000 | 2.05 | 4.5 | 4510 | 2090*1290*1760 | ||
| S11-M-2500/10 | 2500 | 2.50 | 5.5 | 5730 | 2140*1340*1910 | ||
| S11-M-3150/10 | 3150 | 2.80 | 5.5 | 7060 | 2980*2050*2400 |
COMPANY PROFILE
Shanghai Industry Transformers Co., Ltd (SGOB) is a full-range supplier of electrical distribution equipment. Our products include:
● Oil-immersed transformers
● 35KV oil-immersed transformers
● Expoxy resin insulation dry-type power transformers
● Amorphous alloy distribution transformers
● Photovoltaic transformers
● Wind power transformers
● Box-style substation transformers
Our company was founded in 2007 and today has a 40,000sqm workshop and more than 200 employees. Our products are widely used in a broad range of industries such as power generation and distribution, coal production, metallurgy, oil and gas, chemicals, construction, ports, airports, railway and municipal infrastructure.
We also produce related equipment such as electrical cabinets and enclosures, switchgear boxes Currently, we are expanding our product line into other power-related areas like hot shrink connectors, electrical cables and associated mechanical equipment etc. Our goal is to build a one-stop electrical equipment and parts supply platform for our global customer base.
We rely on our strict quality control system to deliver the highest quality products. Of our 200 employees, 46 are engineers experience. Our quality system includes qualifications for:
● National Transformers Quality Supervision Center of China
● ISO-9001:2008 Quality Management System
● ISO-14001:2004 Environmental Management System
● OHSMS18000 Health and Safety System
Our Patents:
Our production and quality testing capabilities include:
● Automatic foil winding
● Digital silicone steel sheeting and slitting
● Fully automatic vacuum drying oven and varnish line
● HAEFLY partial discharge tester
● HAEFLY power analyzer
● HAEFLY harmonic analyzer
The result is a superior product of high efficiency, lower power dissipation and low noise to maximize your infrastructure investment.
