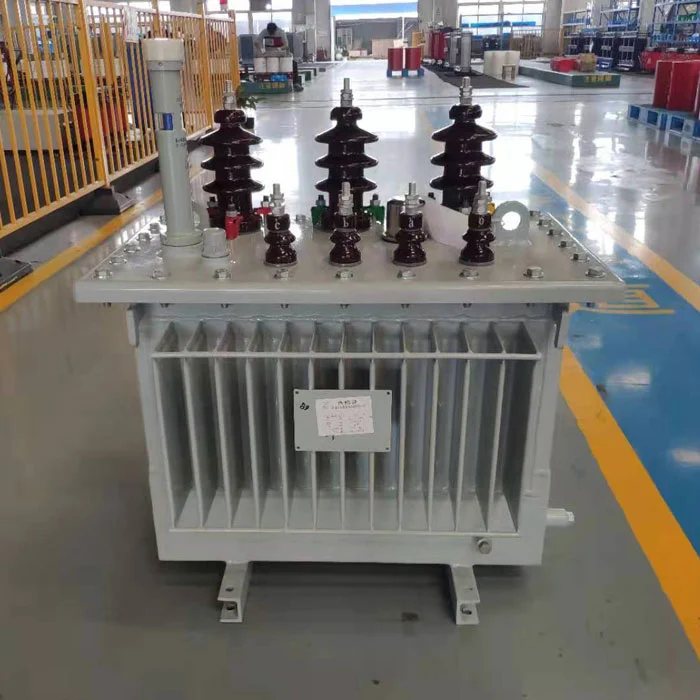

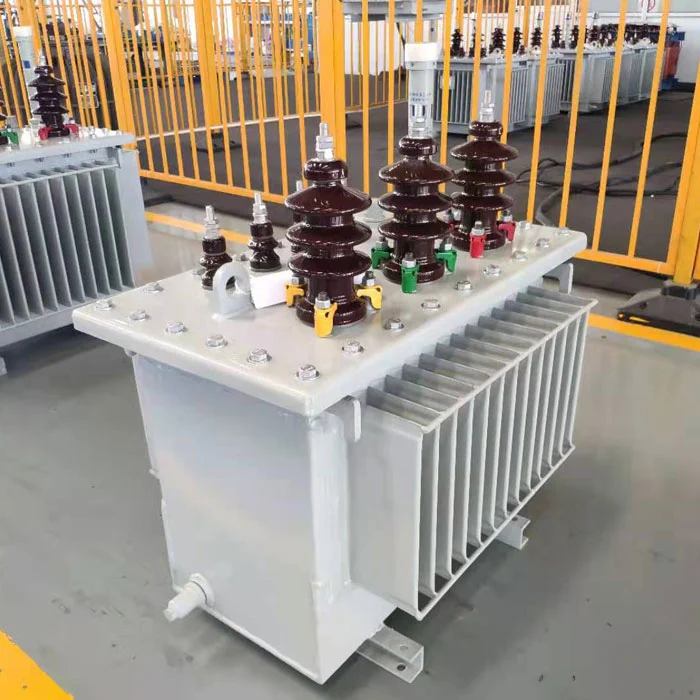

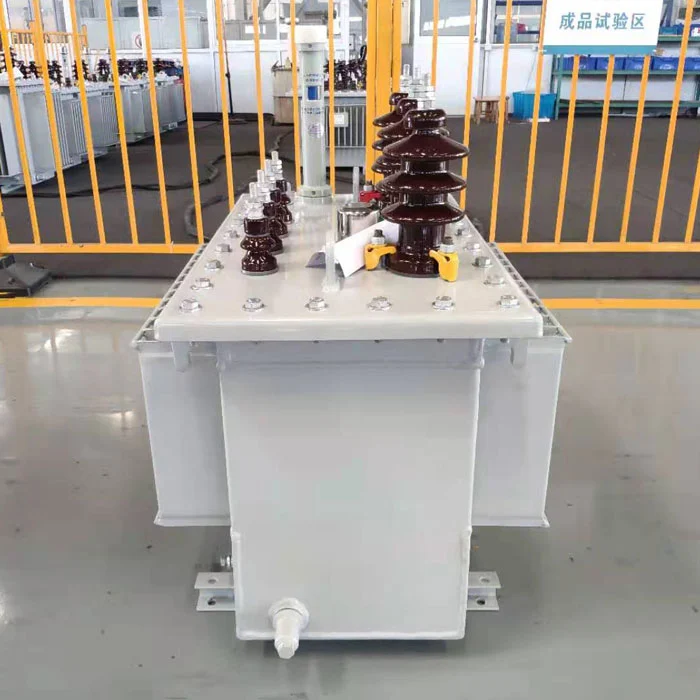

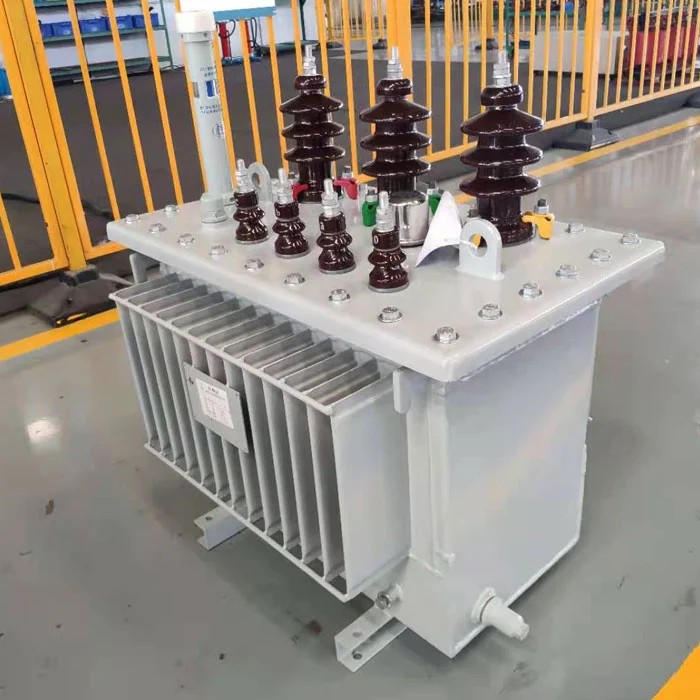

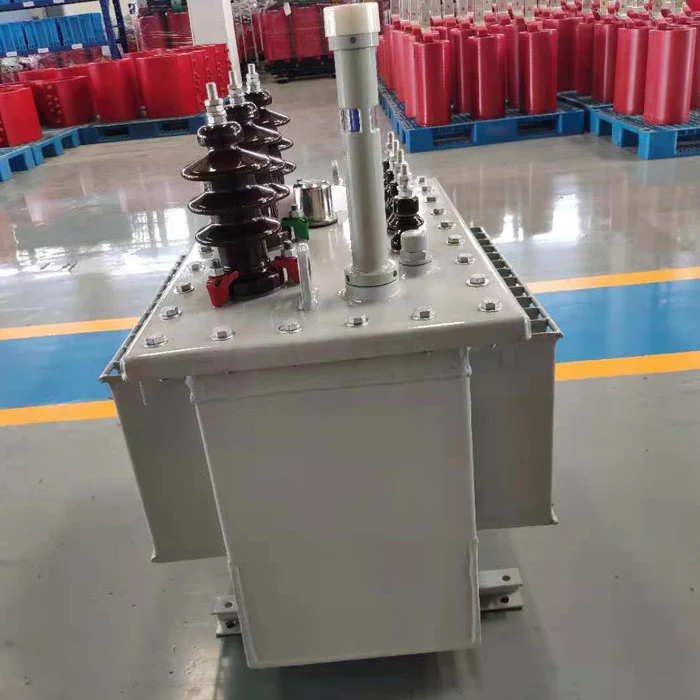

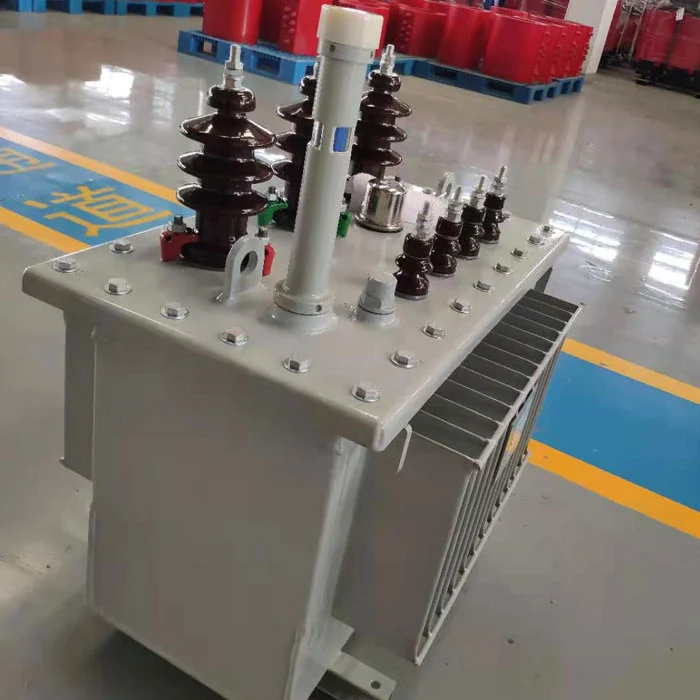

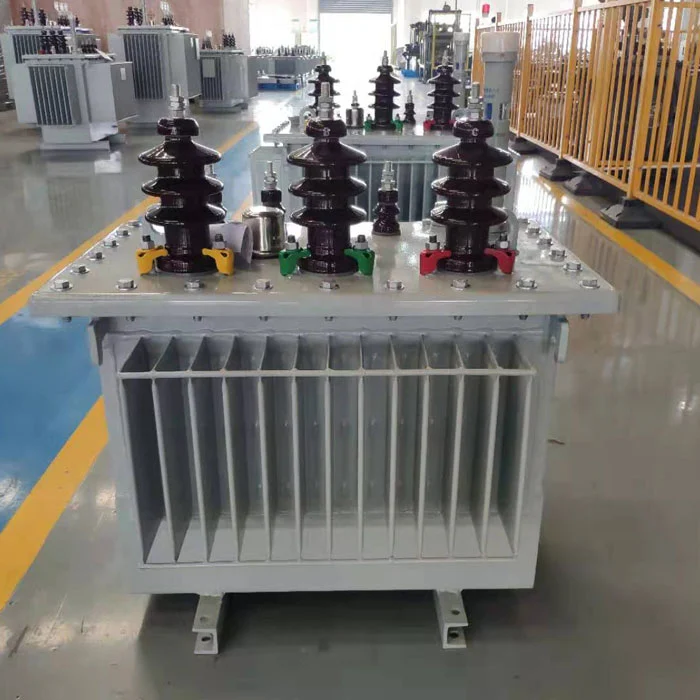

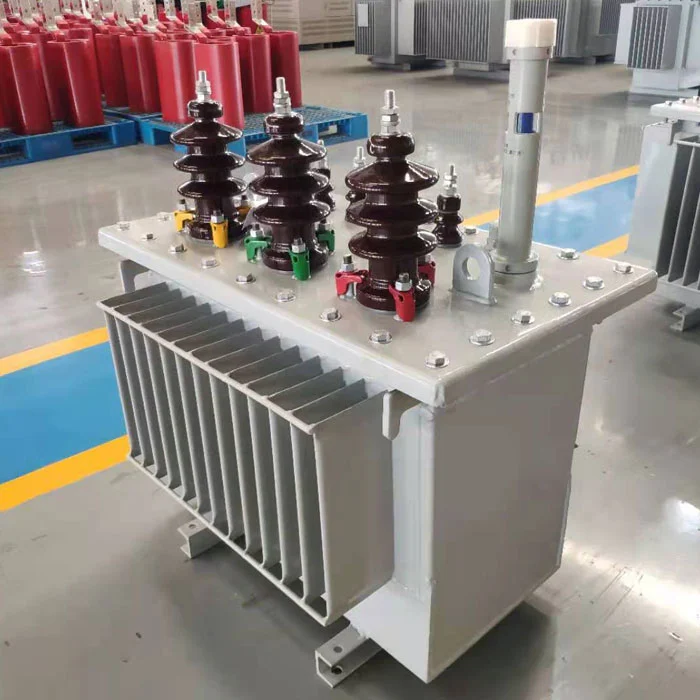

The SGOB 50kva Oil Immersed Transformer stands out in this industry due to its robust design and reliable performance. With a rated capacity of 50 kilovolt-amperes (kva), this transformer is suitable for various industrial applications that require a stable and efficient power supply.
The SGOB 50kva Oil Immersed Transformer belongs to the electrical equipment industry, specifically within the transformer manufacturing sector. Below is an introduction to this product within its industry:
Oil-immersed transformers are a crucial component in the electrical power distribution and transmission systems. These transformers utilize mineral oil as a cooling and insulating medium, enhancing their efficiency and durability. The oil helps dissipate the heat generated during the transformation of electrical energy, thereby prolonging the transformer's lifespan and reducing maintenance costs.
The SGOB 50kva Oil Immersed Transformer stands out in this industry due to its robust design and reliable performance. With a rated capacity of 50 kilovolt-amperes (kva), this transformer is suitable for various industrial applications that require a stable and efficient power supply.
Manufactured by companies like Shanghai Dingzhan (One-Stop) Electrical Equipment Co., Ltd., the SGOB 50kva transformer adheres to international standards such as IEC60076 and GB1094, ensuring its quality and safety. It is certified with ISO9001-2015, ISO14001-2004, and OHSMS18000, which further validates its compliance with quality, environmental, and occupational health and safety management systems.
The SGOB 50kva Oil Immersed Transformer, produced by a reputable manufacturer and supplier in China , represent the pinnacle of electrical engineering excellence. These transformers are engineered with precision and cutting-edge technology to provide robust, efficient, and long-lasting power solutions. As a leading manufacturer and supplier in the industry, the company guarantees the highest standards of quality control, ensuring that each SGOB 50kva Oil Immersed Transformer meets or exceeds international specifications and client expectations. Suitable for a wide range of applications, these transformers are designed to enhance the reliability and efficiency of power distribution systems globally.
PRODUCT FEATURES
The three-phase oil-diffused distribution transformers produced by our company incorporate an innovative insulation structure that enhances their short-circuit resistance. The iron core is crafted from premium-quality cold-rolled silicon steel sheets, while the high-voltage winding utilizes high-grade oxygen-free copper wire in a multi-layered cylindrical configuration. All fasteners undergo a specialized anti-loosening treatment to ensure secure assembly.
The 50kva Oil-Immersed Transformer boasts high efficiency and low loss characteristics, leading to substantial reductions in power consumption and operational costs. This transformer offers significant social benefits and is recognized as a state-promoted high-tech product.
Produced and supplied by a renowned Chinese manufacturer, the SGOB 50kva Oil-Immersed Transformer represents the pinnacle of electrical engineering. These advanced transformers are meticulously crafted to meet the stringent demands of contemporary power distribution systems. Leveraging cutting-edge technology, they are renowned for their unparalleled durability, efficiency, and reliability. As a trusted supplier in China, our manufacturer offers a diverse range of 50kva Oil-Immersed Transformers tailored to suit various applications, ensuring optimal performance and delivering long-term value to customers across the globe.
RELIABLE STRUCTURE
Based on the traditional structure and mature technology,our company has made many improvements.
◆ The spiral coil with longitudinal oil passage has better internal heat dissipation
◆ The effective support of coil end face is improved,and the ability of short-circuit current resistance is stronger;
◆ New hoisting structure and body positioning structure are adopted to ensure more reliable in long-distance transportation and operate or
◆ We also have many unique and reliable structures to serve you;
◆ The transformer with higher performance level will have higher technical content.
HIGH QUALITY MATERIALS
A series of additional surface treatments are employed to ensure a smoother finish with no sharp edges, which contributes to reducing the transformer's load loss and enhancing its electrical performance.
As performance standards continue to rise, silicon steel sheets with lower unit losses are utilized to minimize the transformer's no-load losses.
High-quality laminated wood insulation is chosen for its durability, ensuring it never cracks, even under the stress of short-circuit currents.
We have selected premium rubber sealing material to effectively prevent leakage and ensure tightness.
All raw materials have undergone rigorous quality inspections, and their manufacturers have been thoroughly examined in accordance with the national IS09000 standard.
OUR THREE PHASE OIL IMMERSED TRANSFORMERS
● New insulating structure to improve the anti-short circuit ability
● High-quality cold-rolled silicon steel iron core
● Selected high-quality oxygen-free copper wire
● Multi-layer cylindrical structure high-voltage windings
● Special anti-loose treatment for all of the fasteners.
PARAMETERS
| MODEL |
CAPACITY (KVA) |
HV (KV) |
LV (KV) |
NO LOAD LOSS (KW) |
IMPENDENCE (%) |
WEIGHT (KG) |
DIMENSION (L*W*H MM) |
| S11-M-30/10 | 30 | 6-20 | 0.2-0.4 | 0.10 | 4 | 325 | 750*470*930 |
| S11-M-50/10 | 50 | 0.13 | 4 | 420 | 800*490*1000 | ||
| S11-M-630/10 | 63 | 0.15 | 4 | 470 | 840*500*1010 | ||
| S11-M-80/10 | 80 | 0.18 | 4 | 540 | 870*510*1130 | ||
| S11-M-100/10 | 100 | 0.20 | 4 | 605 | 890*520*1140 | ||
| S11-M-125/10 | 125 | 0.24 | 4 | 680 | 920*590*1150 | ||
| S11-M-160/10 | 160 | 0.27 | 4 | 790 | 1110*580*1170 | ||
| S11-M-200/10 | 200 | 0.33 | 4 | 930 | 1160*620*1225 | ||
| S11-M-250/10 | 250 | 0.40 | 4 | 1100 | 1230*660*1270 | ||
| S11-M-315/10 | 315 | 0.48 | 4 | 1250 | 1250*680*1300 | ||
| S11-M-400/10 | 400 | 0.57 | 4 | 1550 | 1380*750*1380 | ||
| S11-M-500/10 | 500 | 0.68 | 4 | 1820 | 1430*770*1420 | ||
| S11-M-630/10 | 630 | 0.81 | 4.5 | 2065 | 1560*865*1480 | ||
| S11-M-800/10 | 800 | 0.98 | 4.5 | 2510 | 1620*880*1520 | ||
| S11-M-1000/10 | 1000 | 1.15 | 4.5 | 2890 | 1830*1070*1540 | ||
| S11-M-1250/10 | 1250 | 1.36 | 4.5 | 3425 | 1850*1100*1660 | ||
| S11-M-1600/10 | 1600 | 1.64 | 4.5 | 4175 | 1950*1290*1730 | ||
| S11-M-2000/10 | 2000 | 2.05 | 4.5 | 4510 | 2090*1290*1760 | ||
| S11-M-2500/10 | 2500 | 2.50 | 5.5 | 5730 | 2140*1340*1910 | ||
| S11-M-3150/10 | 3150 | 2.80 | 5.5 | 7060 | 2980*2050*2400 |
COMPANY PROFILE
Shanghai Industry Transformers Co., Ltd (SGOB) is a full-range supplier of electrical distribution equipment. Our products include:
● Oil-immersed transformers
● 35KV oil-immersed transformers
● Expoxy resin insulation dry-type power transformers
● Amorphous alloy distribution transformers
● Photovoltaic transformers
● Wind power transformers
● Box-style substation transformers
Our company was founded in 2007 and today has a 40,000sqm workshop and more than 200 employees. Our products are widely used in a broad range of industries such as power generation and distribution, coal production, metallurgy, oil and gas, chemicals, construction, ports, airports, railway and municipal infrastructure.
We also produce related equipment such as electrical cabinets and enclosures, switchgear boxes Currently, we are expanding our product line into other power-related areas like hot shrink connectors, electrical cables and associated mechanical equipment etc. Our goal is to build a one-stop electrical equipment and parts supply platform for our global customer base.
We rely on our strict quality control system to deliver the highest quality products. Of our 200 employees, 46 are engineers experience. Our quality system includes qualifications for:
● National Transformers Quality Supervision Center of China
● ISO-9001:2008 Quality Management System
● ISO-14001:2004 Environmental Management System
● OHSMS18000 Health and Safety System
Our Patents:
Our production and quality testing capabilities include:
● Automatic foil winding
● Digital silicone steel sheeting and slitting
● Fully automatic vacuum drying oven and varnish line
● HAEFLY partial discharge tester
● HAEFLY power analyzer
● HAEFLY harmonic analyzer
The result is a superior product of high efficiency, lower power dissipation and low noise to maximize your infrastructure investment.
