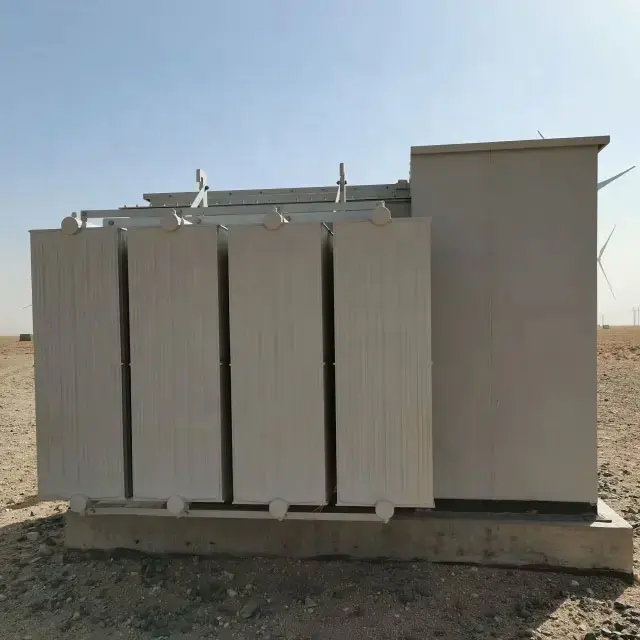

I’ve been in this industry for a long time, and if there’s one question I hear from wind farm operators and project managers more than any other, it’s this: how can we squeeze every last kilowatt of efficiency from our assets? It’s the constant pursuit of a better return on investment. Over the years, I've seen that while much focus is on blade design and turbine technology, a critical component often sits quietly in the nacelle or at the base of the turbine, holding immense potential for performance gains: the Wind Power Transformer. The right Wind Power Transformer isn't just a piece of equipment; it's the heartbeat of your energy conversion process. Today, I want to pull back the curtain and explain exactly how a technologically advanced SGOB Wind Power Transformer is engineered to be a cornerstone of your project's efficiency.
At its heart, a transformer's job is to step up voltage for transmission with minimal losses. But not all transformers are created equal. The journey to superior efficiency is won or lost in the details of its design and construction. The efficiency of a Wind Power Transformer boils down to how effectively it manages its two primary sources of energy loss: load losses and no-load losses. At SGOB, we’ve dedicated our research to attacking these losses at their source.
The key design features we implement are
Advanced Core Material: We use state-of-the-art amorphous metal or high-grade, cold-rolled, grain-oriented (CRGO) silicon steel. This meticulously engineered core reduces hysteresis and eddy current losses, which are the main culprits of no-load losses—the energy consumed even when the turbine isn't spinning.
Precision Engineered Windings: Our low-resistance, oxygen-free copper windings are designed to minimize �2� losses (load losses) that occur under operational load. The precise geometry of the windings ensures optimal magnetic flux distribution.
Advanced Cooling Technology: Heat is the enemy of efficiency and longevity. Our transformers employ optimized cooling ducts and, in our larger models, forced air or liquid cooling systems to maintain an ideal operational temperature, ensuring performance doesn't dip during peak output.
Let’s look at how these design choices translate into tangible performance metrics that directly impact your bottom line.
It's one thing to talk about advanced materials; it's another to see the hard data. When you're evaluating a Wind Power Transformer, you need to look at the specification sheet. It tells you everything about the unit's potential for efficiency and reliability. At SGOB, we believe in transparency. The following table outlines the key performance parameters of our flagship Wind Power Transformer model, the SGOB-HVWT-5000.
Key Performance Indicators of the SGOB-HVWT-5000
| Parameter | SGOB-HVWT-5000 Specification | Industry Standard Average |
|---|---|---|
| Efficiency at Rated Load | > 99.7% | 99.4% - 99.6% |
| No-Load Loss (P<sub>0</sub>) | < 3.5 kW | 5.0 - 6.5 kW |
| Load Loss (P<sub>k</sub>) | < 45 kW | 50 - 55 kW |
| Impedance Voltage | 8.5% (Customizable) | 7.5% - 9.5% |
| Sound Level | < 65 dB | 70 - 75 dB |
But what do these numbers mean over the 20+ year lifespan of a wind turbine? Let's break it down into operational savings. The next table compares the cumulative no-load losses of our model against a standard transformer. This is energy wasted 24/7, regardless of whether the wind is blowing.
Cumulative No-Load Loss Cost Over 20 Years (Assuming $0.08/kWh)
| Year | SGOB-HVWT-5000 (Cumulative Cost) | Standard Transformer (Cumulative Cost) |
|---|---|---|
| 1 | $2,454 | $4,380 |
| 5 | $12,270 | $21,900 |
| 10 | $24,540 | $43,800 |
| 20 | $49,080 | $87,600 |
As you can see, the superior core technology in an SGOB Wind Power Transformer can save you nearly $40,000 in wasted energy on no-load losses alone over two decades. That’s a significant direct contribution to your profitability.
In my two decades, I've had countless conversations with engineers and operators. Their questions are always sharp and to the point. Here are some of the most frequent ones I get about our Wind Power Transformer units.
What is the expected operational lifespan of an SGOB Wind Power Transformer
We design and build our transformers for a minimum operational lifespan of 25 to 30 years, aligning with the typical life cycle of a modern wind turbine. This is achieved through rigorous design standards, the use of top-tier materials that resist thermal aging, and a robust sealing system that protects the core and windings from moisture and corrosive elements, which is crucial for both onshore and offshore applications.
How does the SGOB transformer handle the highly variable load profile of a wind turbine
This is a critical point. Wind turbines don't operate at a constant load, and the transformer must be able to handle these rapid fluctuations without sustaining damage or losing efficiency. Our SGOB Wind Power Transformer is specifically engineered with a high-grade core and a specialized dielectric fluid (in liquid-filled models) that provides superior thermal stability. This allows it to manage frequent thermal cycling, preventing the degradation of insulation materials that can lead to premature failure in less robust units.
What kind of maintenance and monitoring support does SGOB offer
We believe a transformer should be a "fit and forget" component, and our design philosophy makes that a reality. All our units come equipped with pre-wired ports for integrated condition monitoring systems. We can provide real-time data on dissolved gas analysis, moisture levels, and temperature hotspots. Furthermore, our proactive maintenance support team can help you interpret this data to schedule maintenance on your terms, not during an unplanned outage, maximizing your turbine's availability.
The data doesn't lie. The choice of your Wind Power Transformer is a long-term strategic decision with millions of dollars in operational efficiency on the line. It’s not just a component; it’s a 25-year commitment to performance and profitability. The engineering embedded in every SGOB unit is specifically tailored to meet the unique, harsh, and variable demands of wind power generation. Don't let an inefficient transformer be the hidden leak in your revenue stream.
The conversation about efficiency starts with a single step. Contact us today to speak with one of our application engineers. We can provide a customized efficiency analysis for your specific project and show you precisely how an SGOB Wind Power Transformer can secure your investment for the long haul.
