A 100kVA oil immersed transformer is a widely used power distribution device designed to deliver stable voltage, reliable performance, and long-term operational safety in medium- and low-voltage electrical systems. Whether for industrial plants, commercial buildings, infrastructure projects, or utility networks, this transformer capacity is often considered a practical balance between power output, cost, and installation flexibility.
In this in-depth guide, we explore how a 100kVA oil immersed transformer works, why it remains a preferred solution in many industries, how to select the right model, and what common challenges buyers face during procurement and operation. Drawing on manufacturing and application experience from Shanghai Industrial Transformer Co., Ltd., this article is designed to help decision-makers make confident, informed choices.
This article explains the core principles, structure, advantages, and real-world applications of the 100kVA oil immersed transformer. It also addresses customer pain points such as energy efficiency, maintenance, lifespan, installation requirements, and cost control. Practical selection guidance and frequently asked questions are included to support engineers, project managers, and procurement professionals.

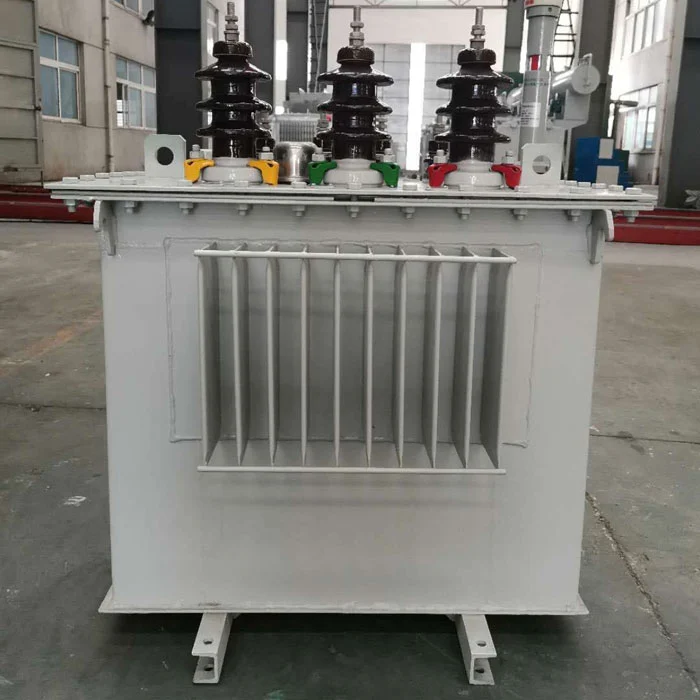

A 100kVA oil immersed transformer is a power transformer that uses insulating oil as both a cooling medium and an electrical insulation material. The transformer core and windings are fully submerged in mineral oil or environmentally friendly insulating oil, allowing efficient heat dissipation and enhanced dielectric strength.
The 100kVA rating indicates the apparent power capacity, making this transformer suitable for moderate loads such as factories, residential complexes, agricultural systems, and commercial facilities. Manufacturers like Shanghai Industrial Transformer Co., Ltd. design these units to comply with international standards while adapting to diverse voltage levels and environmental conditions.
The working principle of a 100kVA oil immersed transformer is based on electromagnetic induction. When alternating current flows through the primary winding, it creates a magnetic field in the laminated steel core. This magnetic flux induces a voltage in the secondary winding, transforming the input voltage to the required output level.
The insulating oil plays several critical roles:
This oil-based system allows stable operation even under continuous load or fluctuating environmental conditions, which is why oil immersed transformers remain dominant in many outdoor and industrial installations.
Understanding the internal structure helps buyers evaluate quality and reliability. A typical 100kVA oil immersed transformer consists of the following components:
| Component | Function |
|---|---|
| Core | Provides a low-loss magnetic path for flux |
| Primary & Secondary Windings | Conduct electrical energy and enable voltage transformation |
| Insulating Oil | Cooling and electrical insulation |
| Transformer Tank | Encloses and protects internal components |
| Conservator (optional) | Compensates oil volume changes |
| Bushings | Insulated terminals for external connections |
At Shanghai Industrial Transformer Co., Ltd., optimized tank design and oil circulation paths are engineered to improve cooling efficiency and extend service life.
While specifications may vary by application and regional standards, the table below shows typical parameters for a 100kVA oil immersed transformer:
| Parameter | Typical Value |
|---|---|
| Rated Capacity | 100 kVA |
| Primary Voltage | 6kV / 10kV / 11kV (customizable) |
| Secondary Voltage | 400V / 415V / 380V |
| Frequency | 50Hz / 60Hz |
| Cooling Method | ONAN (Oil Natural Air Natural) |
| Insulation Class | Class A |
| Standards | IEC, ANSI, or regional standards |
Precise customization ensures that transformers from Shanghai Industrial Transformer Co., Ltd. meet project-specific electrical and environmental requirements.
Many buyers ask whether an oil immersed transformer is still a good choice compared with dry-type alternatives. For a 100kVA rating, oil immersed transformers offer several clear advantages:
These benefits make the 100kVA oil immersed transformer especially suitable for outdoor substations, industrial zones, and rural power distribution networks.
A 100kVA oil immersed transformer is widely applied across multiple sectors:
With decades of project experience, Shanghai Industrial Transformer Co., Ltd. supplies tailored solutions for both standard and complex applications worldwide.
Buyers often face several challenges when sourcing a 100kVA oil immersed transformer:
These issues can be addressed by selecting optimized core materials, high-quality insulating oil, compact tank designs, and professional technical support. Working with an experienced manufacturer like Shanghai Industrial Transformer Co., Ltd. significantly reduces long-term risk.
When selecting a transformer, consider the following factors:
A detailed technical consultation before purchase helps ensure the transformer performs reliably throughout its lifecycle.
Proper installation and routine inspection are essential for safe operation. Recommended practices include:
With correct maintenance, a 100kVA oil immersed transformer can operate efficiently for decades.
Shanghai Industrial Transformer Co., Ltd. specializes in the design, manufacturing, and supply of oil immersed transformers for global markets. The company combines advanced production technology with strict quality control to deliver reliable and durable power solutions.
From standard models to customized engineering solutions, Shanghai Industrial Transformer Co., Ltd. supports customers throughout the entire project lifecycle, from consultation to commissioning.
Is a 100kVA oil immersed transformer suitable for outdoor installation?
Yes, it is specifically designed for outdoor environments and offers excellent resistance to weather and temperature variations.
How long does a 100kVA oil immersed transformer last?
With proper maintenance, service life can exceed 25–30 years.
What maintenance does it require?
Routine oil inspection, temperature monitoring, and periodic electrical testing are usually sufficient.
Can the transformer be customized?
Yes, voltage levels, tap changers, and enclosure designs can be customized by manufacturers like Shanghai Industrial Transformer Co., Ltd.
A 100kVA oil immersed transformer remains a reliable, cost-effective, and versatile solution for a wide range of power distribution needs. Understanding its structure, advantages, and application scenarios allows buyers to maximize performance and minimize long-term costs.
If you are planning a new project or upgrading your power system, Shanghai Industrial Transformer Co., Ltd. is ready to provide professional guidance and high-quality transformer solutions. Contact us today to discuss your requirements and find the right power solution for your application.
