Oil-immersed transformers are critical components in electrical power distribution systems, as they play an important role in increasing or decreasing voltage levels for power transmission and distribution. While these transformers are made up of several components, one of the most significant is the oil used for insulation and cooling. But what precisely does the oil do, and why is it so important to the operation of the transformer? In this article, we'll look at the key functions of oil in an oil-immersed transformer and why it's essential for the device's performance.
1. Cooling the Transformer
One of the main functions of oil in an oil-immersed transformer is cooling. When electrical power is passed through the transformer, electrical losses in the form of heat occur due to the resistance of the windings and core. If not properly managed, this heat can cause damage to the transformer’s components and reduce its efficiency or lifespan.
The oil circulates through the transformer, absorbing the heat generated by the electrical losses. It then dissipates the heat through the transformer tank’s outer surfaces, where it can be cooled by natural or forced air circulation. The oil essentially acts as a heat sink, preventing the transformer from overheating and ensuring it operates within the optimal temperature range.
This cooling mechanism is especially vital for larger transformers, which handle higher voltages and currents, and as a result, generate more heat.
2. Providing Electrical Insulation
Oil also serves as an insulating medium in an oil-immersed transformer. The high voltage running through the windings and core could lead to electrical arcing or breakdown if proper insulation is not in place. The oil acts as an electrical insulator, preventing electrical arcing between components, especially when the voltage difference between different parts of the transformer becomes significant.
The insulating properties of transformer oil ensure that the transformer can operate at high voltages without risk of electrical short circuits or other electrical faults that might occur due to contact between the conductors.
3. Preventing Oxidation and Contamination
In addition to its cooling and insulating properties, oil also helps in preventing oxidation and contamination of the transformer’s components. The oil forms a protective barrier around the windings and core, keeping moisture and air away. Exposure to air, particularly oxygen, can cause oxidation of metallic parts, leading to the degradation of the transformer’s materials and shortening its lifespan.
By preventing the entry of air and moisture, the oil also helps to maintain the integrity of the transformer’s insulation system, ensuring that the insulation does not degrade over time due to environmental factors.
4. Enhancing Transformer Efficiency
The cooling and insulating effects of oil directly contribute to the overall efficiency of the transformer. When the oil effectively manages heat and prevents electrical faults, the transformer is able to operate at its maximum potential. This means less downtime for maintenance, fewer repairs, and lower operational costs.
Moreover, proper oil management also helps maintain the transformer’s stability. By keeping the transformer’s internal environment stable, the oil ensures that the transformer can handle fluctuations in electrical load and continue to function efficiently.
5. Improving Heat Dissipation in Large Transformers.

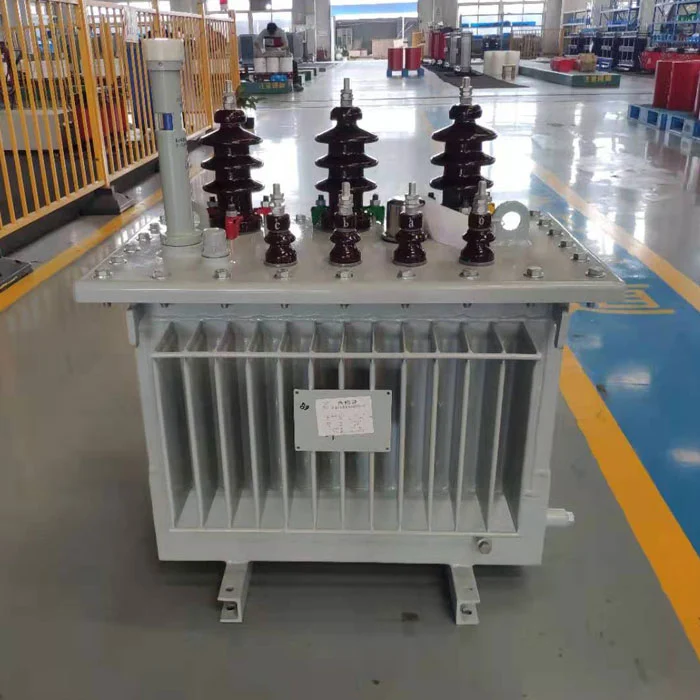

For huge oil-immersed transformers operating at extremely high voltages, the role of oil in heat dissipation is even more crucial. Transformers are constructed with oil-filled radiators or cooling fins to maximize heat transfer surface area. The oil circulates through these structures, transferring heat away from the core and windings, allowing the transformer to operate at an acceptable temperature even under difficult conditions.
This heat dissipation is particularly critical in power plants, substations, and other facilities where transformers must operate constantly under high loads.
6. Ensuring Transformer Integrity Under Extreme Conditions
Oil in oil-immersed transformers has an important role in maintaining structural integrity in harsh situations. The oil works as a buffer against unexpected voltage spikes, protecting the transformer's internal components from the damaging effects of electrical surges. In the event of a fault, the oil absorbs excess energy, thereby preventing catastrophic damage to the transformer.
Furthermore, the oil has a self-healing property, in which any minor electrical discharge or arc within the transformer induces a chemical reaction in the oil, reducing further damage. This makes oil-immersed transformers more resistant to operating stress, extending their lifespan.
7. Ensuring safe operation.
Safety is a major problem in any electrical system, including oil-immersed transformers. The oil promotes safe operation by lowering the risk of electrical fires. When transformer oil is well-maintained and kept at the proper levels, it considerably decreases the risk of overheating, which could otherwise result in dangerous circumstances such as electrical fires or explosions.
Regular oil checks are part of routine maintenance to ensure that the oil is clean, free of impurities, and at the proper level for peak performance.
Oil has a complex and critical function in the operation of oil-immersed transformers. It provides cooling, electrical insulation, oxidation protection, and increased efficiency, all of which help the transformer operate safely, reliably, and efficiently. Transformers would not be able to perform as effectively or safely without oil, reducing their lifespan dramatically.
Understanding the role of oil in transformers is critical for ensuring their long-term functioning and reducing the dangers connected with electrical power systems. Regular maintenance, including checking oil levels and quality, is critical for keeping these powerful electrical devices in peak operating condition and meeting the demands of contemporary power transmission.
