A 125kVA dry transformer is a widely used medium-capacity power distribution solution designed for commercial buildings, industrial facilities, infrastructure projects, and renewable energy systems. Unlike oil-filled transformers, dry-type transformers use air or solid insulation systems, making them safer, cleaner, and easier to maintain in indoor and sensitive environments. This article explores the structure, working principle, advantages, selection criteria, installation considerations, and real-world applications of a 125kVA dry transformer. It also addresses common customer challenges such as overheating, noise, energy loss, and lifecycle cost. By the end, readers will have a complete understanding of how to choose and apply this transformer efficiently for stable and safe power distribution.

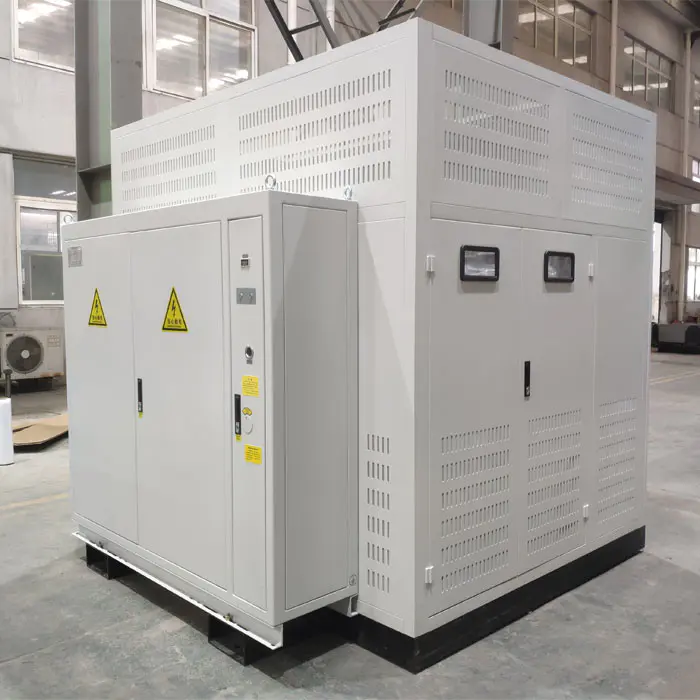

A 125kVA dry transformer is a static electrical device designed to transfer electrical energy between circuits while stepping voltage up or down without using liquid coolant. The “125kVA” rating indicates its capacity to handle up to 125 kilovolt-amperes of load, making it suitable for medium-scale commercial and industrial applications.
Dry-type transformers rely on air cooling and solid insulation materials such as epoxy resin. This eliminates the need for oil, reducing fire hazards and environmental risks. As urban infrastructure becomes denser, these transformers are increasingly preferred for indoor installations such as shopping malls, hospitals, data centers, and office buildings.
In modern electrical systems, stability, safety, and efficiency are critical. The 125kVA rating is particularly popular because it balances compact size with sufficient power capacity for mid-sized energy demands.
The working principle of a 125kVA dry transformer is based on electromagnetic induction. When alternating current flows through the primary winding, it creates a magnetic field that induces voltage in the secondary winding.
Unlike oil-filled transformers, the dry-type version uses air circulation and epoxy encapsulation to manage heat and insulation. The absence of oil significantly reduces maintenance complexity and fire risks.
Key components include:
Heat generated during operation is dissipated through natural convection or fans, ensuring stable performance even under continuous load conditions.
The 125kVA dry transformer offers several engineering and operational advantages that make it highly attractive for modern electrical infrastructure.
These features make it especially suitable for environments where safety regulations are strict and reliability is essential.
| Feature | 125kVA Dry Transformer | Oil-Immersed Transformer |
|---|---|---|
| Cooling Method | Air / Resin insulation | Mineral oil cooling |
| Fire Risk | Very low | Higher due to oil |
| Maintenance | Low | Medium to high |
| Environmental Impact | Eco-friendly | Risk of oil leakage |
| Installation Location | Indoor suitable | Mainly outdoor or dedicated rooms |
| Cost | Slightly higher initial cost | Lower initial cost |
Although oil transformers are still widely used in heavy-duty outdoor applications, dry-type transformers dominate indoor and environmentally sensitive installations due to their safety profile and low maintenance demands.
A 125kVA dry transformer is versatile and widely deployed across multiple sectors. Its balance of capacity and compact design makes it ideal for distributed power systems.
In these environments, uninterrupted power supply and safety compliance are critical. The dry transformer ensures stable voltage regulation while minimizing operational risks.
Choosing the right transformer requires careful evaluation of electrical demand, installation environment, and future expansion needs.
Key selection factors include:
Engineers should also consider harmonic distortion in modern power systems, especially in facilities with heavy electronic loads such as data centers.
Working with experienced manufacturers like Shanghai Industrial Transformer Co., Ltd. ensures proper customization and compliance with international standards.
Proper installation is essential for ensuring long service life and optimal performance of a 125kVA dry transformer.
Installation guidelines:
Maintenance recommendations:
Although maintenance requirements are low, periodic inspection ensures reliability and prevents unexpected downtime.
Even high-quality transformers may encounter operational challenges. Understanding these issues helps improve system reliability.
Common issues include:
Solutions:
| Parameter | Typical Value (125kVA Dry Transformer) |
|---|---|
| Rated Capacity | 125 kVA |
| Primary Voltage | 6kV / 10kV / 11kV (customizable) |
| Secondary Voltage | 400V / 415V |
| Frequency | 50Hz / 60Hz |
| Cooling Method | AN / AF (Air Natural / Air Forced) |
| Insulation Class | F / H Class |
| Efficiency | Up to 98%+ |
| Noise Level | ≤ 55 dB (typical) |
These parameters may vary depending on customization and application requirements.
Q1: What makes a 125kVA dry transformer different from other capacities?
It is optimized for medium-scale applications where balanced power distribution is needed without excessive footprint or cost.
Q2: Can it be used outdoors?
It is primarily designed for indoor use, but can be installed outdoors with proper protective enclosures.
Q3: How long is its service life?
Typically 20–30 years with proper maintenance and operating conditions.
Q4: Is it energy efficient?
Yes, modern designs achieve high efficiency with low no-load and load losses.
Q5: Does it require frequent maintenance?
No, only periodic inspection and basic cleaning are required.
The 125kVA dry transformer has become a cornerstone of modern electrical distribution systems due to its safety, efficiency, and adaptability. It is especially suitable for indoor environments where reliability and environmental protection are critical. By understanding its working principle, selection criteria, and operational considerations, users can significantly improve system stability and reduce long-term operational costs.
As power systems continue to evolve toward smarter and safer infrastructure, dry-type transformers will remain an essential component in ensuring efficient energy distribution across industries.
