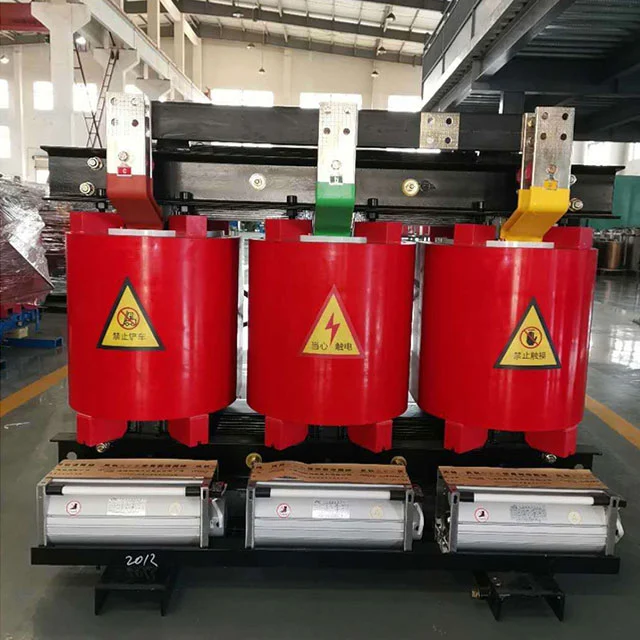

SGOB is a China quality China 1000kva Dry Transformer supplier. It is a top-tier electrical device designed to meet the high-power demands of modern industrial, commercial, and institutional settings. With a robust power rating of 1000 kilovolt-amperes (kva), this transformer offers unparalleled reliability, efficiency, and durability, making it a versatile power solution for a diverse range of applications.
PRODUCT DESCRIPTION
SGOB 1000kva Dry Transformer is very safe product. It can be directly installed in the load center. It works well in the 100% humidity environment without pre-drying. It has been widely used in the constructions field, commercial center, airport, station, port, subway, factory, underground power distribution station, offshore oil drilling platform, power plant etc.
Product Advantages
SGOB High-Performance 1000kva Durable Resin Dry Type Transformers is designed in a dry-type configuration, eliminating the need for oil, thereby significantly reducing the risk of leakage and the possibility of environmental pollution. This environmental-friendly feature aligns with global sustainable development efforts, facilitating the promotion of cleaner energy solutions and reducing carbon emissions. The SGOB 1000kva dry-type transformer is compact in design, structurally robust, and highly suitable for installation in spaces with limited space. Its sturdy construction ensures long-term reliability and smooth operation, even in the most demanding industrial environments.
This High-Efficiency 1000kva Dry Type Transformer can handle large loads, making it an excellent choice for applications where continuous and critical power demand is required. Whether it's manufacturing plants, data centers, medical institutions, or educational institutions, the SGOB 1000kva dry-type transformer can provide reliable power supply when needed.
In addition to its powerful power handling capacity, this transformer also has excellent energy efficiency. It minimizes energy loss, thereby maximizing power delivery to the load and reducing operating costs. This makes it an ideal choice for enterprises that wish to optimize energy consumption and reduce their carbon footprint.
Furthermore, the SGOB 1000kva dry-type transformer also features advanced features such as noise reduction and heat dissipation. These features ensure that the transformer operates more quietly and at a lower temperature, enhancing the user experience and extending the transformer's lifespan.
The SGOB 1000kva dry-type transformer is a high-performance, reliable, and environmentally friendly power solution. Its compact design, sturdy structure, and advanced features make it an ideal choice for a wide range of applications. Whether you need to supply power to manufacturing plants, data centers, or medical institutions, the SGOB 1000kva dry-type transformer can provide the power you need when you need it.
Main materials and features
This coil uses F-class insulated copper wire as the conductor and glass fiber and epoxy resin composite materials as the insulating material. Its expansion coefficient is similar to that of copper conductors, and it has excellent impact resistance, temperature change resistance, and crack resistance. All components of glass fiber and epoxy resin have self-extinguishing properties and will not continue to burn. Meanwhile, the high-voltage coil is cast with epoxy resin under a 1-millibar vacuum state, and there are no bubbles inside the coil, ensuring that the local discharge of the coil is small. At the same time, the transformer's loss has been effectively reduced.
The transformer's core is made of 30EH120 series high magnetic permeability cold-rolled silicon steel sheets imported from Nippon Steel of Japan. These silicon steel sheets have an ordered grain arrangement, are connected in a 45° full chamfered manner, and are stacked in four layers. The surface of the core is coated with insulating resin paint to prevent moisture and rust, and the two clamps and fasteners also have anti-corrosion protection layers. The entire core adopts a non-stacked yoke and steel pull plate structure, which effectively reduces no-load loss, no-load current, and core noise.
For low-voltage high-current coils, when a short circuit occurs, the short-circuit stress is large, while low-voltage coils have fewer turns. The larger the low-voltage current, the more obvious the problem of unstable current when using the coil winding method. Heat dissipation issues also need to be considered. At this time, low-voltage coils wound with foil can better solve the above problems. Firstly, foil products have no axial turns and axial winding helix angle. The current turns of high-voltage and low-voltage windings are balanced, and the axial stress of the transformer is small when a short circuit occurs. Secondly, due to its thin insulation, multiple layers of air channels can be set freely during processing, and the heat dissipation problem is also better solved. The internal welding of the coil is carried out on a fully automatic foil winding machine using xenon gas protection welding, which has high precision, low welding resistance, and no external welding process. Between the winding layers, DMD insulation is used, and the ends are sealed and cured with resin after winding.
A cross-flow top air-cooling fan is adopted. This fan has the advantages of low noise, high wind pressure, and good appearance, and improves the overload capacity of the transformer. Temperature control uses an intelligent temperature controller to improve the safety and reliability of the transformer operation.
PRODUCT FEATURES
The 1000kVA Epoxy Resin Cast Mount Insulation Dry Type Power Distribution Transformer produced by Shanghai Industrial Transformer Co., Ltd. is developed and designed in cooperation with Shenyang Transformer Research Institute by introducing advanced foreign technology. The product reliability index has reached the international advanced level.
SGOB 1000kva Dry Transformer is safe, flame-retardant and fire-proof, pollution-free, and can be directly installed in the load center. It is maintenance-free, easy to install, has low comprehensive operating cost, low loss, good moisture-proof performance, can operate normally at 100% humidity, and can be put into operation without pre-drying after shutdown. It has low partial discharge, low noise, strong heat dissipation function, and can operate at 150% rated load under forced air cooling conditions.
SGOB 1000kva Dry Transformer are now widely used in high-rise buildings, commercial centers, airports, stations, docks, subways, factories, underground distribution stations, offshore oil drilling platforms, power plants and other places with harsh environments and use conditions.
PRODUCT FEATURES
● Fire-resistant
● Moisture resistance
● Easy maintenance and installation
● Running well during rough environment conditions
● Non-polluting product
● Low loss during the comprehensive operation
PARAMETERS
| MODEL |
NO LOAD LOSS (W) |
LOAD LOSS (120%) |
IMPENDENCE (%) |
NOLOAD CURRENT (%) |
NOISE LEVEL (Lpa) dB |
WEIGHT (KG) |
| SC(B)10-30/10 | 205 | 750 | 4 | 2.3 | 57 | 290 |
| SC(B)10-50/10 | 285 | 1060 | 2.2 | 57 | 360 | |
| SC(B)10-80/10 | 380 | 1460 | 1.7 | 59 | 590 | |
| SC(B)10-100/10 | 410 | 1670 | 1.7 | 59 | 640 | |
| SC(B)10-125/10 | 470 | 1960 | 1.5 | 60 | 670 | |
| SC(B)10-160/10 | 550 | 2250 | 1.5 | 60 | 870 | |
| SC(B)10-200/10 | 650 | 2680 | 1.3 | 61 | 1040 | |
| SC(B)10-250/10 | 740 | 2920 | 1.3 | 61 | 1220 | |
| SC(B)10-315/10 | 880 | 3670 | 1.1 | 63 | 1470 | |
| SC(B)10-400/10 | 1000 | 4220 | 1.1 | 63 | 1760 | |
| SC(B)10-500/10 | 1180 | 5170 | 1.1 | 64 | 2050 | |
| SC(B)10-630/10 | 1300 | 6310 | 6 | 0.9 | 65 | 2360 |
| SC(B)10-800/10 | 1540 | 7360 | 0.9 | 65 | 2730 | |
| SC(B)10-1000/10 | 1750 | 8610 | 0.9 | 65 | 3270 | |
| SC(B)10-1250/10 | 2030 | 10260 | 0.9 | 67 | 3840 | |
| SC(B)10-1600/10 | 2700 | 12400 | 0.9 | 68 | 4920 | |
| SC(B)10-2000/10 | 3000 | 15300 | 0.7 | 70 | 5780 | |
| SC(B)10-2500/10 | 3500 | 18180 | 0.7 | 71 | 6600 | |
| SC(B)10-3150/10 | 4000 | 18800 | 0.5 | 71 | 7800 | |
| SC(B)10-4000/10 | 4700 | 22000 | 0.5 | 76 | 10000 |
| MODEL | DIMENSION(MM) | |||||||||
| a | b | c | d | e | f | g | h | K1 | K2 | |
| SC(Z)(B) 10-30/10 | 1120 | 850 | 1100 | 400 | 750 | 640 | 290 | 260 | 270 | 135 |
| SC(Z)(B) 10-50/10 | 1170 | 850 | 1160 | 400 | 810 | 700 | 310 | 270 | 290 | 145 |
| SC(Z)(B)10-80/10 | 1210 | 900 | 1240 | 450 | 890 | 760 | 320 | 280 | 290 | 145 |
| SC(Z)(B)10-100/10 | 1240 | 900 | 1280 | 450 | 940 | 880 | 320 | 275 | 295 | 142.5 |
| SC(Z)(B)10-125/10 | 1270 | 950 | 1330 | 550 | 980 | 920 | 325 | 280 | 310 | 155 |
| SC(Z)(B)10-160/10 | 1310 | 1100 | 1360 | 550 | 1010 | 960 | 305 | 260 | 315 | 157.5 |
| SC(Z)(B)10-200/10 | 1350 | 1140 | 1400 | 660 | 1050 | 980 | 310 | 265 | 340 | 170 |
| SC(Z)(B)10-250/10 | 1420 | 1210 | 1430 | 660 | 1075 | 1010 | 300 | 255 | 355 | 177.5 |
| SC(Z)(B)10-315/10 | 1460 | 1250 | 1460 | 660 | 1100 | 1050 | 305 | 260 | 365 | 182.5 |
| SC(Z)(B)10-400/10 | 1520 | 1280 | 1520 | 660 | 1165 | 1090 | 315 | 270 | 375 | 187.5 |
| SC(Z)(B)10-500/10 | 1530 | 1320 | 1580 | 660 | 1205 | 1150 | 320 | 275 | 385 | 182.5 |
| SC(Z)(B)10-630/10 | 1670 | 1350 | 1630 | 660 | 1280 | 1200 | 325 | 280 | 430 | 215 |
| SC(Z)(B)10-800/10 | 1680 | 1350 | 1650 | 820 | 1300 | 1220 | 340 | 295 | 445 | 222.5 |
| SC(Z)(B)10-1000/10 | 1770 | 1420 | 1750 | 820 | 1390 | 1310 | 345 | 300 | 465 | 232.5 |
| SC(Z)(B)10-1250/10 | 1880 | 1530 | 1790 | 820 | 1430 | 1350 | 355 | 310 | 485 | 242.5 |
| SC(Z)(B)10-1600/10 | 1960 | 1530 | 1860 | 1070 | 1520 | 1420 | 375 | 330 | 510 | 255 |
| SC(Z)(B)10-2000/10 | 2000 | 1620 | 1960 | 1070 | 1600 | 1500 | 395 | 350 | 510 | 255 |
| SC(Z)(B)10-2500/10 | 2100 | 1680 | 2040 | 1070 | 1680 | 1560 | 425 | 380 | 550 | 275 |
| SC(Z)(B)10-3150/10 | 2240 | 1750 | 2150 | 1070 | 1800 | 1660 | 460 | 410 | 580 | 290 |
| SC(Z)(B) 10-4000/10 | 2370 | 1840 | 2310 | 1070 | 1960 | 1800 | 500 | 450 | 630 | 315 |
| MODEL | CAPACITY (KVA) |
LENGTH (MM) |
WIDTH (MM) |
HEIGHT (MM) |
LONGITUDINAL (MM) | HORIZONTAL (MM) | WEIGHT (KG) |
| SC(Z)(B) 10-30/10 | 30 | 770 | 500 | 750 | 400 | 450 | 285 |
| SC(Z)(B) 10-50/10 | 50 | 820 | 500 | 810 | 400 | 450 | 330 |
| SC(Z)(B)10-80/10 | 80 | 860 | 550 | 890 | 450 | 500 | 465 |
| SC(Z)(B)10-100/10 | 100 | 890 | 650 | 940 | 450 | 600 | 530 |
| SC(Z)(B)10-125/10 | 125 | 920 | 650 | 980 | 550 | 600 | 640 |
| SC(Z)(B)10-160/10 | 160 | 960 | 800 | 1010 | 550 | 750 | 760 |
| SC(Z)(B)10-200/10 | 200 | 1000 | 800 | 1050 | 660 | 750 | 905 |
| SC(Z)(B)10-250/10 | 250 | 1070 | 900 | 1075 | 660 | 850 | 1085 |
| SC(Z)(B)10-315/10 | 315 | 1110 | 900 | 1100 | 660 | 850 | 1175 |
| SC(Z)(B)10-400/10 | 400 | 1170 | 900 | 1165 | 660 | 850 | 1460 |
| SC(Z)(B) 10-500/10 | 500 | 1180 | 970 | 1205 | 660 | 920 | 1670 |
| SC(Z)(B) 10-630/10 | 630 | 1320 | 1000 | 1280 | 660 | 950 | 1890 |
| SC(Z)(B)10-800/10 | 800 | 1325 | 1000 | 1300 | 820 | 950 | 2320 |
| SC(Z)(B)10-1000/10 | 1000 | 1420 | 1180 | 1390 | 820 | 950 | 2800 |
| SC(Z)(B)10-1250/10 | 1250 | 1530 | 1320 | 1430 | 820 | 1270 | 3255 |
| SC(Z)(B)10-1600/10 | 1600 | 1610 | 1320 | 1520 | 1070 | 1270 | 4115 |
| SC(Z)(B) 10-2000/10 | 2000 | 1650 | 1500 | 1600 | 1070 | 1450 | 4690 |
| SC(Z)(B)10-2500/10 | 2500 | 1750 | 1550 | 1680 | 1070 | 1500 | 5620 |
| SC(Z)(B) 10-3150/10 | 3150 | 1890 | 1550 | 1800 | 1070 | 1500 | 6850 |
| SC(Z)(B) 10-4000/10 | 4000 | 2020 | 1630 | 1960 | 1070 | 1580 | 8110 |
COMPANY PROFILE
Shanghai Industry Transformers Co., Ltd (SGOB) is a full-range supplier of electrical distribution equipment. Our products include:
● Oil-immersed transformers
● 35KV oil-immersed transformers
● Expoxy resin insulation dry-type power transformers
● Amorphous alloy distribution transformers
● Photovoltaic transformers
● Wind power transformers
● Box-style substation transformers
Our company was founded in 2007 and today has a 40,000sqm workshop and more than 200 employees. Our products are widely used in a broad range of industries such as power generation and distribution, coal production, metallurgy, oil and gas, chemicals, construction, ports, airports, railway and municipal infrastructure.
We also produce related equipment such as electrical cabinets and enclosures, switchgear boxes Currently, we are expanding our product line into other power-related areas like hot shrink connectors, electrical cables and associated mechanical equipment etc. Our goal is to build a one-stop electrical equipment and parts supply platform for our global customer base.
We rely on our strict quality control system to deliver the highest quality products. Of our 200 employees, 46 are engineers experience. Our quality system includes qualifications for:
● National Transformers Quality Supervision Center of China
● ISO-9001:2008 Quality Management System
● ISO-14001:2004 Environmental Management System
● OHSMS18000 Health and Safety System
Our Patents:
Our production and quality testing capabilities include:
● Automatic foil winding
● Digital silicone steel sheeting and slitting
● Fully automatic vacuum drying oven and varnish line
● HAEFLY partial discharge tester
● HAEFLY power analyzer
● HAEFLY harmonic analyzer
The result is a superior product of high efficiency, lower power dissipation and low noise to maximize your infrastructure investment.
