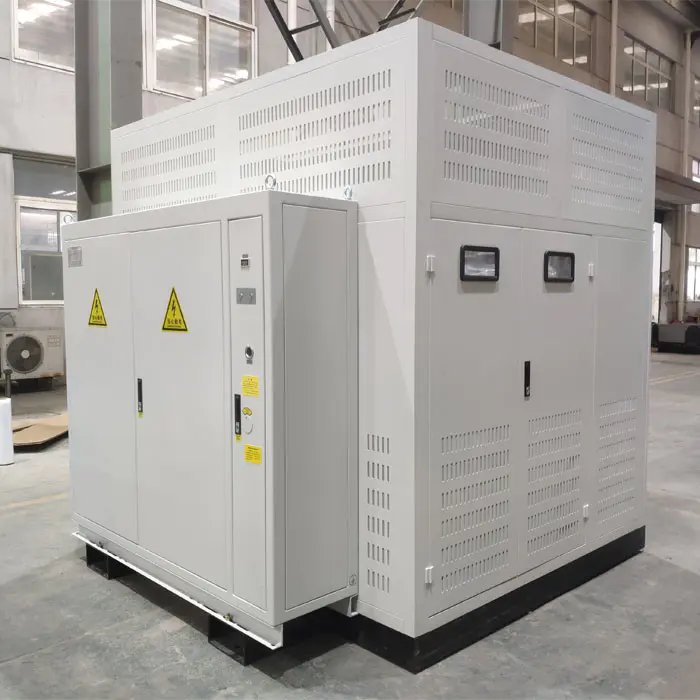

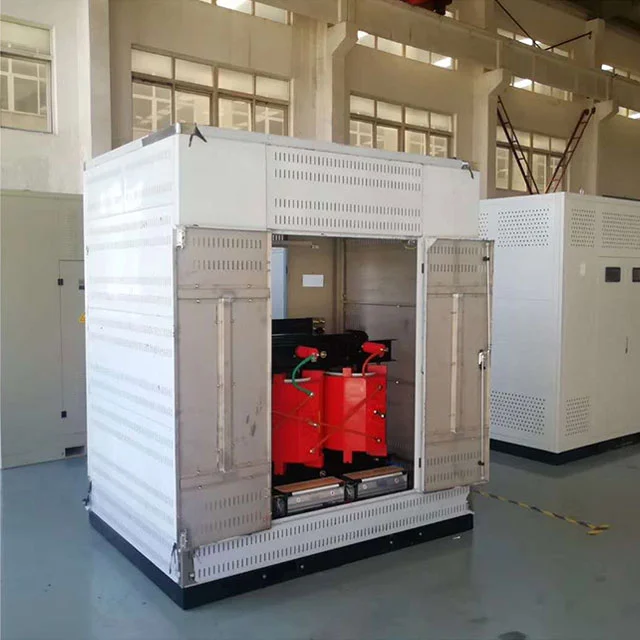

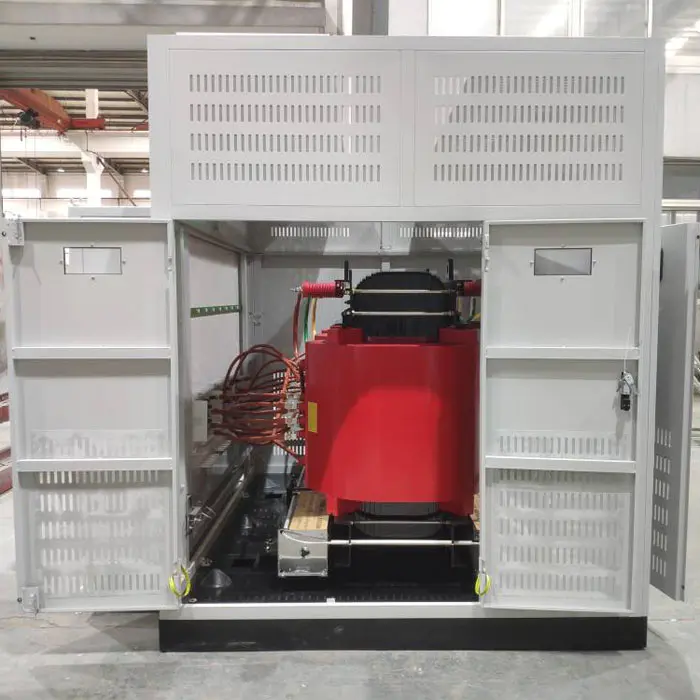

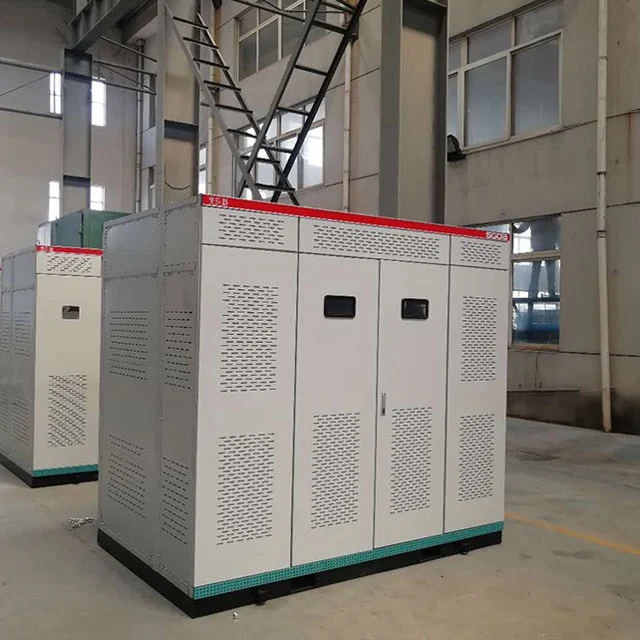

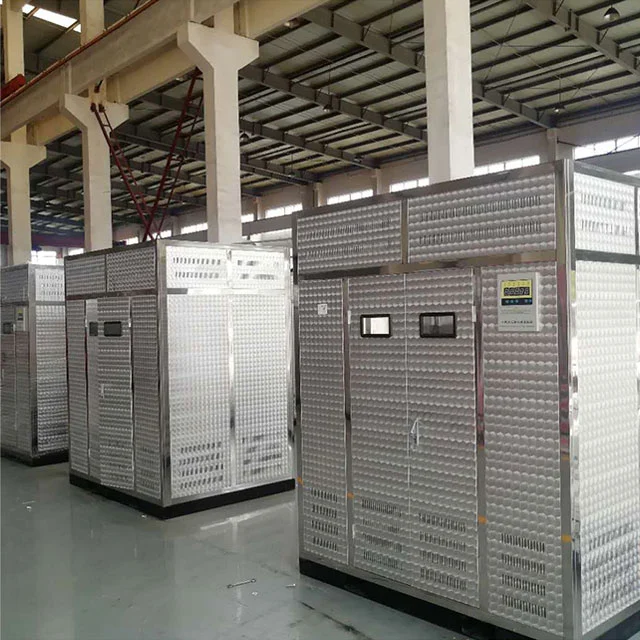

The SGOB 30kva Dry Transformer is a versatile and reliable power transformation solution designed to meet the diverse needs of modern industrial, commercial, and residential settings. Its dry-type construction, high efficiency, compact design, and advanced protection systems make it an ideal choice for applications where space is constrained and safety is paramount. With customizable options and robust construction, the transformer ensures long-term reliability and performance, making it a valuable addition to any electrical infrastructure.
The SGOB 30kva Dry Transformer is a high-performance, compact, and reliable power transformation solution designed for a wide range of applications where space is a constraint and safety is paramount. With a rated power capacity of 30 kilovolt-amperes (kva), this transformer is specifically engineered to meet the demands of modern industrial, commercial, and residential settings.
Key Features
Dry-Type Construction:
The transformer's core and windings are encapsulated in a flame-retardant, moisture-resistant, and environmentally friendly material, eliminating the need for insulating oil.
This dry-type construction makes the transformer safer to operate and easier to maintain, as it eliminates the risk of oil leaks and fires.
High Efficiency:
The SGOB 30kva Dry Transformer is designed to minimize energy losses during power transfer, ensuring that it operates at high efficiency levels.
This contributes to cost savings on electricity bills and reduces the environmental footprint of the end-user.
Compact Design:
With its sleek and compact design, the transformer occupies minimal space, making it ideal for installations in confined areas.
This design also facilitates easy transportation and installation, reducing overall installation costs and time.
Advanced Protection Systems:
Equipped with a range of protective devices, including overcurrent, overvoltage, and temperature relays, the transformer provides comprehensive protection against faults and anomalies.
These features ensure the safety of personnel and equipment, and prevent potential downtime and damage.
Durability and Reliability:
Built with high-quality materials and precision engineering, the transformer is designed to withstand the rigors of industrial and commercial environments.
Its robust construction ensures long-term reliability and performance, minimizing the need for maintenance and repairs.
Customizable Options:
The SGOB 30kva Dry Transformer can be customized to meet specific power requirements and application needs.
This includes options for various voltage levels, input and output connections, and mounting configurations, ensuring that the transformer seamlessly integrates into the end-user's existing electrical infrastructure.
Applications
The SGOB 30kva Dry Transformer is suitable for a wide range of applications, including:
Commercial Buildings: Provides reliable power for lighting, HVAC systems, and other electrical equipment in office buildings, retail stores, and other commercial spaces.
Industrial Settings: Supports the operation of machinery, equipment, and production lines in manufacturing, refining, and other industrial environments.
Residential Use: Offers a safe and efficient power solution for homes and small businesses, ensuring a stable and reliable power supply for everyday needs.
Specialty Applications: Suitable for use in marine, mining, and other specialty environments where space is limited and safety is a top priority.
PRODUCT FEATURES
The epoxy resin cast 30kva Dry Transformer produced by Shanghai Industrial Transformer Co., Ltd. is developed and designed in cooperation with Shenyang Transformer Research Institute by introducing advanced foreign technology. The product reliability index has reached the international advanced level.
SGOB 30kva Dry Transformer is safe, flame-retardant and fire-proof, pollution-free, and can be directly installed in the load center. It is maintenance-free, easy to install, has low comprehensive operating cost, low loss, good moisture-proof performance, can operate normally at 100% humidity, and can be put into operation without pre-drying after shutdown. It has low partial discharge, low noise, strong heat dissipation function, and can operate at 150% rated load under forced air cooling conditions.

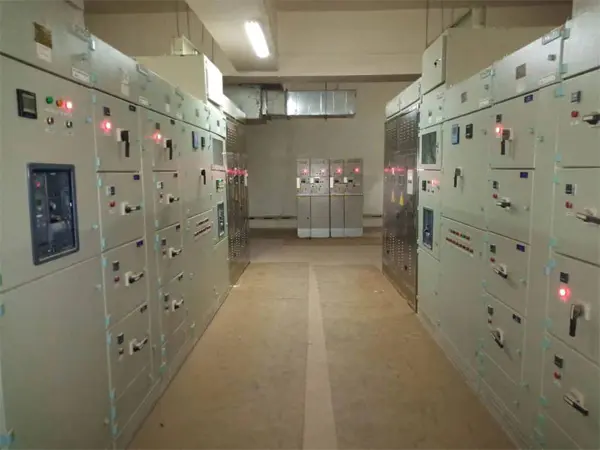

SGOB 30kva Dry Transformer are now widely used in high-rise buildings, commercial centers, airports, stations, docks, subways, factories, underground distribution stations, offshore oil drilling platforms, power plants and other places with harsh environments and use conditions.
Main materials and features

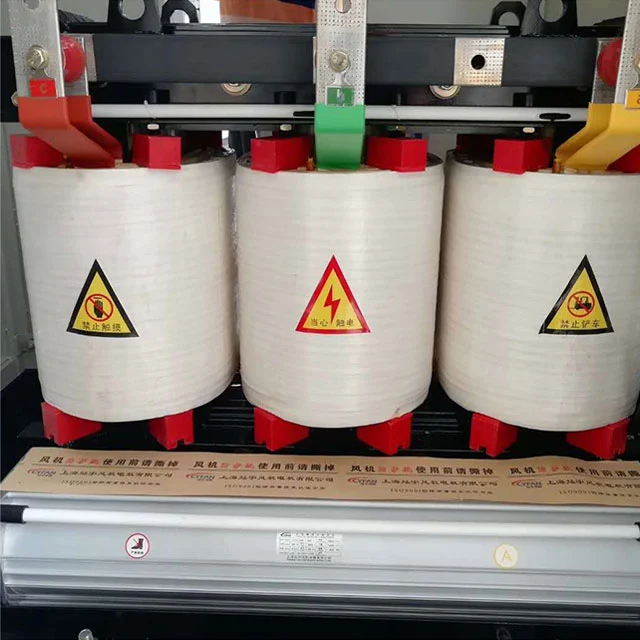

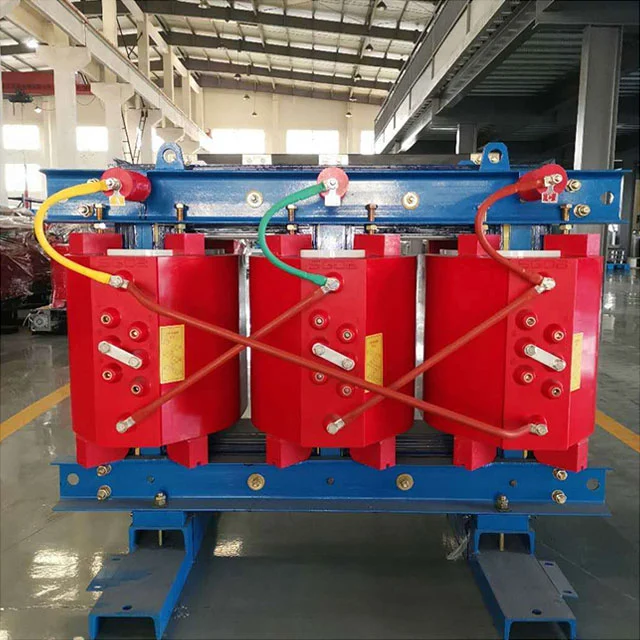

The coil uses F-class insulated copper wire as conductor and glass fiber and epoxy resin composite material as insulation. Its expansion coefficient is close to that of copper conductor and has good impact resistance, temperature change resistance and crack resistance. All components of glass fiber and epoxy resin are self-extinguishing and will not continue to burn. At the same time, the high-voltage coil is cast with epoxy resin under 1mbar vacuum state, and there are no bubbles inside the coil, ensuring that the partial discharge of the coil is small. At the same time, the loss of the transformer is effectively reduced.
The iron core of the transformer is made of 30EH120 series of high-permeability cold-rolled silicon steel sheets with orderly grain orientation imported from Nippon Steel, Japan, with 45° full-bevel joints and four-level step-by-step stacking. The surface of the iron core is sealed with insulating resin paint to prevent moisture and rust, and the two clamps and fasteners have anti-corrosion protective layers. The entire iron core adopts a non-stacked iron yoke and steel pull plate structure, which effectively reduces no-load loss, no-load current and iron core noise.
For low voltage and high current coils, the short circuit stress is large when short circuit occurs, and the number of low voltage turns is small. The larger the low voltage current is, the more prominent the problem of unstable ampere-turns will be when the wire winding type is used. The heat dissipation problem also needs to be considered. At this time, the use of foil winding for low voltage can better solve the above problems. First of all, foil products do not have axial turns and axial winding spiral angles. The ampere-turns of high and low voltage windings are balanced, and the axial stress of the transformer is small when short circuit occurs. Secondly, due to its thin insulation, multi-layer air ducts can be set at will in the process, and the heat dissipation problem is also better solved. The internal welding of the coil adopts xenon protection welding on the fully automatic foil winding machine, which has high precision, low welding resistance, and no external welding process. DMD insulation is used between the winding layers, and the ends are sealed and cured with resin after winding.

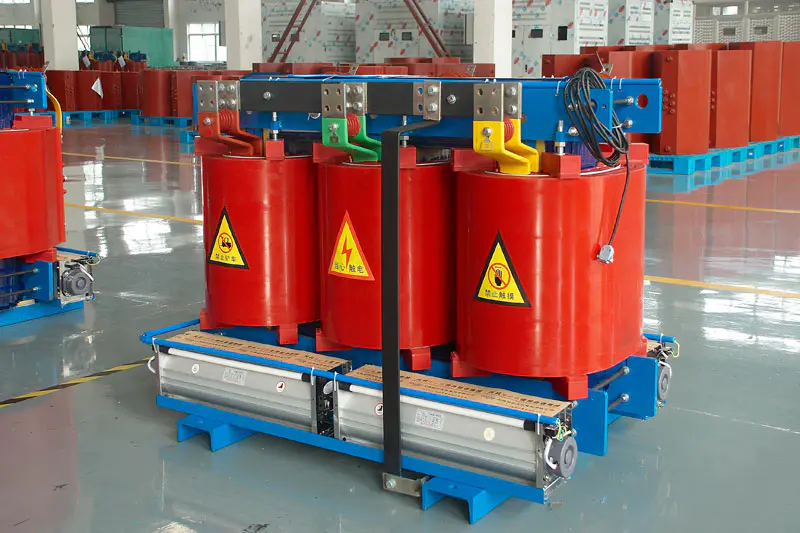

The cross-flow top-blowing cooling fan is adopted, which has the characteristics of low noise, high wind pressure, beautiful appearance, etc., and enhances the overload capacity of the transformer. The temperature control adopts an intelligent temperature controller to improve the safety and reliability of the transformer operation.
PRODUCT DESCRIPTION
Epoxy resin insulated dry type transformer is very safe product. It can be directly installed in the load center. It works well in the 100% humidity environment without pre-drying. It has been widely used in the constructions field, commercial center, airport, station, port, subway, factory, underground power distribution station, offshore oil drilling platform, power plant etc.
PRODUCT FEATURES
● Fire-resistant
● Moisture resistance
● Easy maintenance and installation
● Running well during rough environment conditions
● Non-polluting product
● Low loss during the comprehensive operation
PARAMETERS
| MODEL |
NO LOAD LOSS (W) |
LOAD LOSS (120%) |
IMPENDENCE (%) |
NOLOAD CURRENT (%) |
NOISE LEVEL (Lpa) dB |
WEIGHT (KG) |
| SC(B)10-30/10 | 205 | 750 | 4 | 2.3 | 57 | 290 |
| SC(B)10-50/10 | 285 | 1060 | 2.2 | 57 | 360 | |
| SC(B)10-80/10 | 380 | 1460 | 1.7 | 59 | 590 | |
| SC(B)10-100/10 | 410 | 1670 | 1.7 | 59 | 640 | |
| SC(B)10-125/10 | 470 | 1960 | 1.5 | 60 | 670 | |
| SC(B)10-160/10 | 550 | 2250 | 1.5 | 60 | 870 | |
| SC(B)10-200/10 | 650 | 2680 | 1.3 | 61 | 1040 | |
| SC(B)10-250/10 | 740 | 2920 | 1.3 | 61 | 1220 | |
| SC(B)10-315/10 | 880 | 3670 | 1.1 | 63 | 1470 | |
| SC(B)10-400/10 | 1000 | 4220 | 1.1 | 63 | 1760 | |
| SC(B)10-500/10 | 1180 | 5170 | 1.1 | 64 | 2050 | |
| SC(B)10-630/10 | 1300 | 6310 | 6 | 0.9 | 65 | 2360 |
| SC(B)10-800/10 | 1540 | 7360 | 0.9 | 65 | 2730 | |
| SC(B)10-1000/10 | 1750 | 8610 | 0.9 | 65 | 3270 | |
| SC(B)10-1250/10 | 2030 | 10260 | 0.9 | 67 | 3840 | |
| SC(B)10-1600/10 | 2700 | 12400 | 0.9 | 68 | 4920 | |
| SC(B)10-2000/10 | 3000 | 15300 | 0.7 | 70 | 5780 | |
| SC(B)10-2500/10 | 3500 | 18180 | 0.7 | 71 | 6600 | |
| SC(B)10-3150/10 | 4000 | 18800 | 0.5 | 71 | 7800 | |
| SC(B)10-4000/10 | 4700 | 22000 | 0.5 | 76 | 10000 |

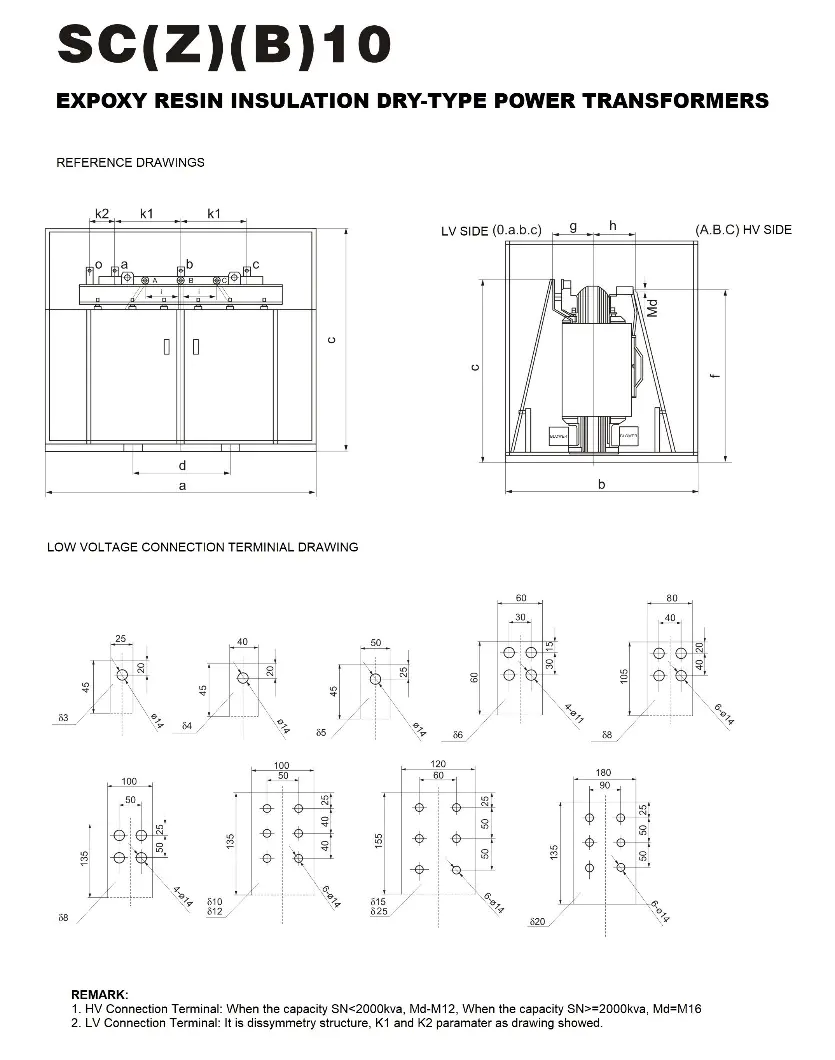

| MODEL | DIMENSION(MM) | |||||||||
| a | b | c | d | e | f | g | h | K1 | K2 | |
| SC(Z)(B) 10-30/10 | 1120 | 850 | 1100 | 400 | 750 | 640 | 290 | 260 | 270 | 135 |
| SC(Z)(B) 10-50/10 | 1170 | 850 | 1160 | 400 | 810 | 700 | 310 | 270 | 290 | 145 |
| SC(Z)(B)10-80/10 | 1210 | 900 | 1240 | 450 | 890 | 760 | 320 | 280 | 290 | 145 |
| SC(Z)(B)10-100/10 | 1240 | 900 | 1280 | 450 | 940 | 880 | 320 | 275 | 295 | 142.5 |
| SC(Z)(B)10-125/10 | 1270 | 950 | 1330 | 550 | 980 | 920 | 325 | 280 | 310 | 155 |
| SC(Z)(B)10-160/10 | 1310 | 1100 | 1360 | 550 | 1010 | 960 | 305 | 260 | 315 | 157.5 |
| SC(Z)(B)10-200/10 | 1350 | 1140 | 1400 | 660 | 1050 | 980 | 310 | 265 | 340 | 170 |
| SC(Z)(B)10-250/10 | 1420 | 1210 | 1430 | 660 | 1075 | 1010 | 300 | 255 | 355 | 177.5 |
| SC(Z)(B)10-315/10 | 1460 | 1250 | 1460 | 660 | 1100 | 1050 | 305 | 260 | 365 | 182.5 |
| SC(Z)(B)10-400/10 | 1520 | 1280 | 1520 | 660 | 1165 | 1090 | 315 | 270 | 375 | 187.5 |
| SC(Z)(B)10-500/10 | 1530 | 1320 | 1580 | 660 | 1205 | 1150 | 320 | 275 | 385 | 182.5 |
| SC(Z)(B)10-630/10 | 1670 | 1350 | 1630 | 660 | 1280 | 1200 | 325 | 280 | 430 | 215 |
| SC(Z)(B)10-800/10 | 1680 | 1350 | 1650 | 820 | 1300 | 1220 | 340 | 295 | 445 | 222.5 |
| SC(Z)(B)10-1000/10 | 1770 | 1420 | 1750 | 820 | 1390 | 1310 | 345 | 300 | 465 | 232.5 |
| SC(Z)(B)10-1250/10 | 1880 | 1530 | 1790 | 820 | 1430 | 1350 | 355 | 310 | 485 | 242.5 |
| SC(Z)(B)10-1600/10 | 1960 | 1530 | 1860 | 1070 | 1520 | 1420 | 375 | 330 | 510 | 255 |
| SC(Z)(B)10-2000/10 | 2000 | 1620 | 1960 | 1070 | 1600 | 1500 | 395 | 350 | 510 | 255 |
| SC(Z)(B)10-2500/10 | 2100 | 1680 | 2040 | 1070 | 1680 | 1560 | 425 | 380 | 550 | 275 |
| SC(Z)(B)10-3150/10 | 2240 | 1750 | 2150 | 1070 | 1800 | 1660 | 460 | 410 | 580 | 290 |
| SC(Z)(B) 10-4000/10 | 2370 | 1840 | 2310 | 1070 | 1960 | 1800 | 500 | 450 | 630 | 315 |
| MODEL | CAPACITY (KVA) |
LENGTH (MM) |
WIDTH (MM) |
HEIGHT (MM) |
LONGITUDINAL (MM) | HORIZONTAL (MM) | WEIGHT (KG) |
| SC(Z)(B) 10-30/10 | 30 | 770 | 500 | 750 | 400 | 450 | 285 |
| SC(Z)(B) 10-50/10 | 50 | 820 | 500 | 810 | 400 | 450 | 330 |
| SC(Z)(B)10-80/10 | 80 | 860 | 550 | 890 | 450 | 500 | 465 |
| SC(Z)(B)10-100/10 | 100 | 890 | 650 | 940 | 450 | 600 | 530 |
| SC(Z)(B)10-125/10 | 125 | 920 | 650 | 980 | 550 | 600 | 640 |
| SC(Z)(B)10-160/10 | 160 | 960 | 800 | 1010 | 550 | 750 | 760 |
| SC(Z)(B)10-200/10 | 200 | 1000 | 800 | 1050 | 660 | 750 | 905 |
| SC(Z)(B)10-250/10 | 250 | 1070 | 900 | 1075 | 660 | 850 | 1085 |
| SC(Z)(B)10-315/10 | 315 | 1110 | 900 | 1100 | 660 | 850 | 1175 |
| SC(Z)(B)10-400/10 | 400 | 1170 | 900 | 1165 | 660 | 850 | 1460 |
| SC(Z)(B) 10-500/10 | 500 | 1180 | 970 | 1205 | 660 | 920 | 1670 |
| SC(Z)(B) 10-630/10 | 630 | 1320 | 1000 | 1280 | 660 | 950 | 1890 |
| SC(Z)(B)10-800/10 | 800 | 1325 | 1000 | 1300 | 820 | 950 | 2320 |
| SC(Z)(B)10-1000/10 | 1000 | 1420 | 1180 | 1390 | 820 | 950 | 2800 |
| SC(Z)(B)10-1250/10 | 1250 | 1530 | 1320 | 1430 | 820 | 1270 | 3255 |
| SC(Z)(B)10-1600/10 | 1600 | 1610 | 1320 | 1520 | 1070 | 1270 | 4115 |
| SC(Z)(B) 10-2000/10 | 2000 | 1650 | 1500 | 1600 | 1070 | 1450 | 4690 |
| SC(Z)(B)10-2500/10 | 2500 | 1750 | 1550 | 1680 | 1070 | 1500 | 5620 |
| SC(Z)(B) 10-3150/10 | 3150 | 1890 | 1550 | 1800 | 1070 | 1500 | 6850 |
| SC(Z)(B) 10-4000/10 | 4000 | 2020 | 1630 | 1960 | 1070 | 1580 | 8110 |
COMPANY PROFILE
Shanghai Industry Transformers Co., Ltd (SGOB) is a full-range supplier of electrical distribution equipment. Our products include:
● Oil-immersed transformers
● 35KV oil-immersed transformers
● Expoxy resin insulation dry-type power transformers
● Amorphous alloy distribution transformers
● Photovoltaic transformers
● Wind power transformers
● Box-style substation transformers
Our company was founded in 2007 and today has a 40,000sqm workshop and more than 200 employees. Our products are widely used in a broad range of industries such as power generation and distribution, coal production, metallurgy, oil and gas, chemicals, construction, ports, airports, railway and municipal infrastructure.
We also produce related equipment such as electrical cabinets and enclosures, switchgear boxes Currently, we are expanding our product line into other power-related areas like hot shrink connectors, electrical cables and associated mechanical equipment etc. Our goal is to build a one-stop electrical equipment and parts supply platform for our global customer base.
We rely on our strict quality control system to deliver the highest quality products. Of our 200 employees, 46 are engineers experience. Our quality system includes qualifications for:
● National Transformers Quality Supervision Center of China
● ISO-9001:2008 Quality Management System
● ISO-14001:2004 Environmental Management System
● OHSMS18000 Health and Safety System
Our Patents:

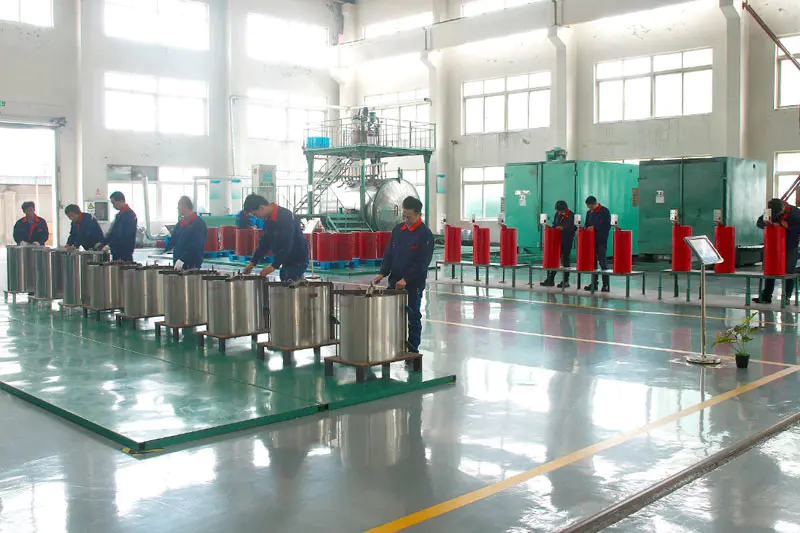

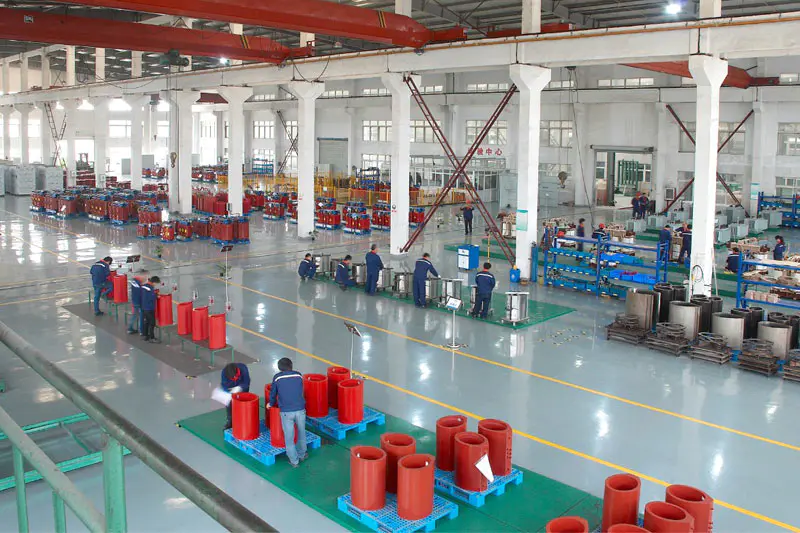

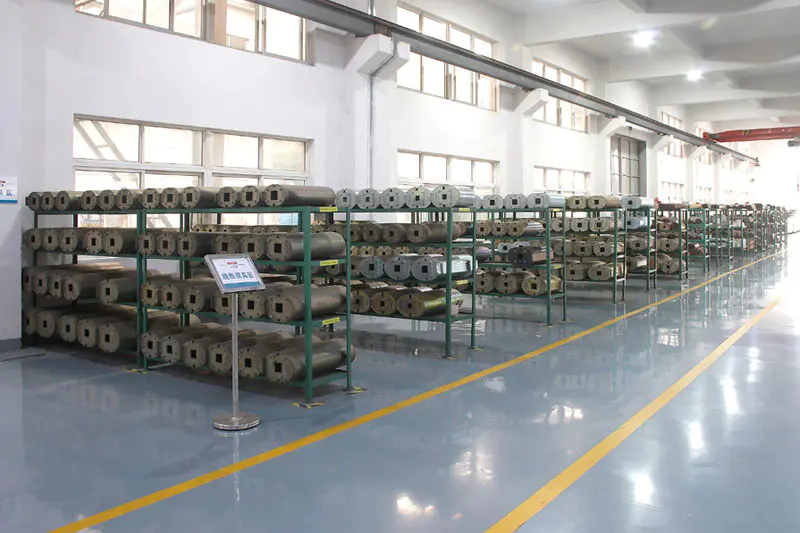

Our production and quality testing capabilities include:
● Automatic foil winding
● Digital silicone steel sheeting and slitting
● Fully automatic vacuum drying oven and varnish line
● HAEFLY partial discharge tester
● HAEFLY power analyzer
● HAEFLY harmonic analyzer
The result is a superior product of high efficiency, lower power dissipation and low noise to maximize your infrastructure investment.
