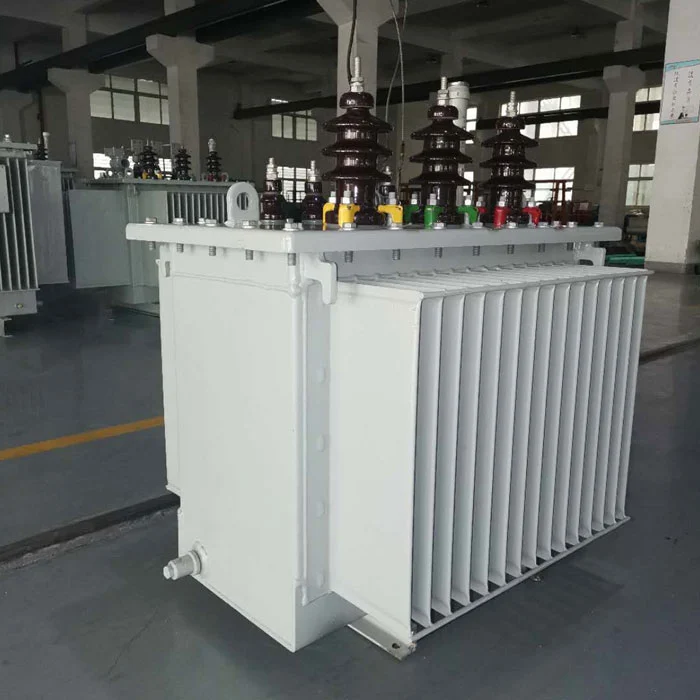

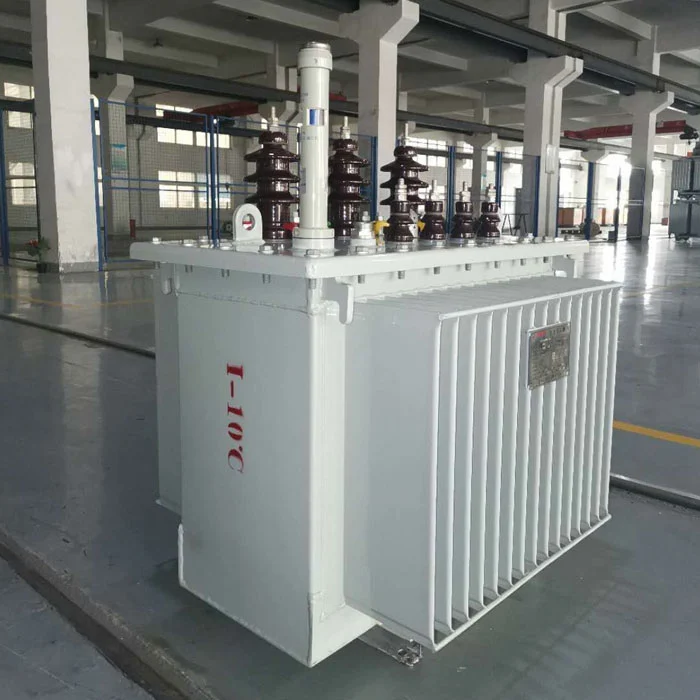

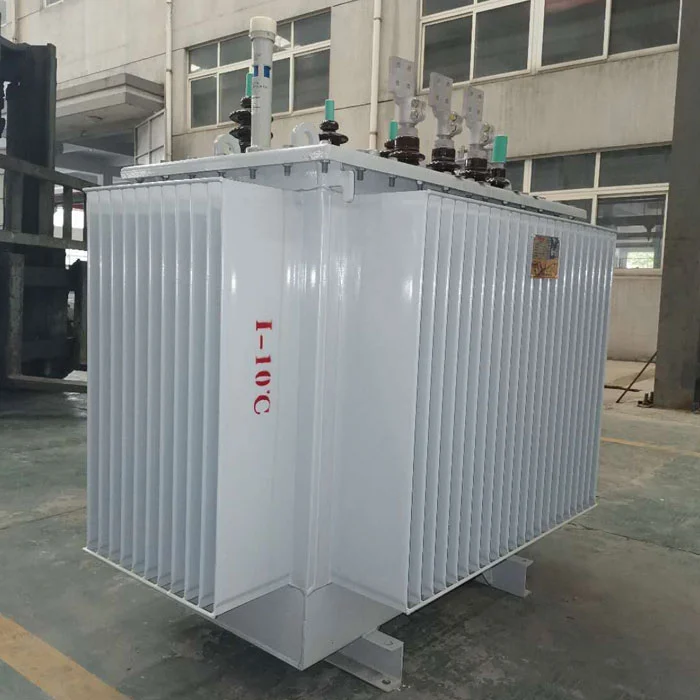

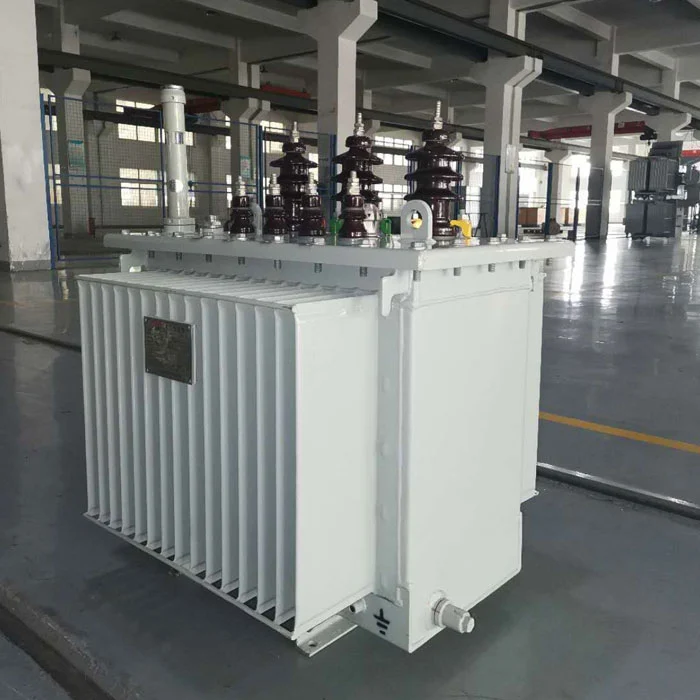

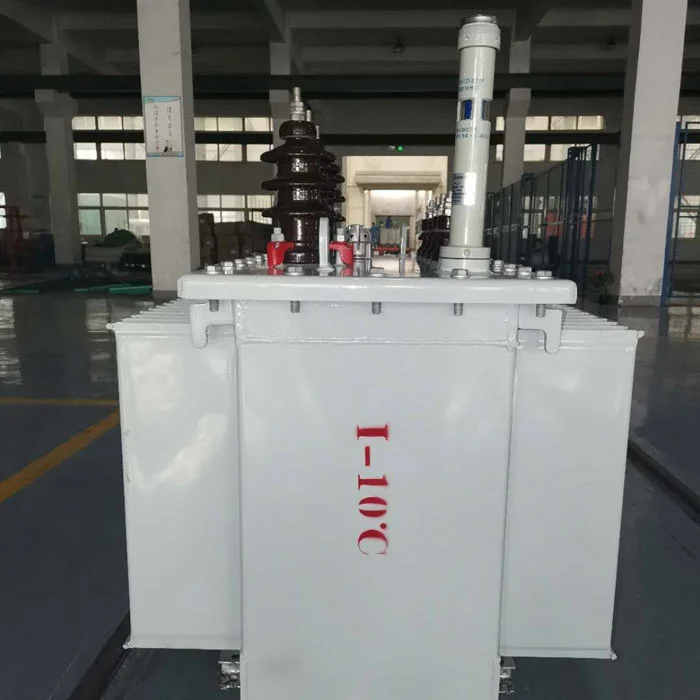

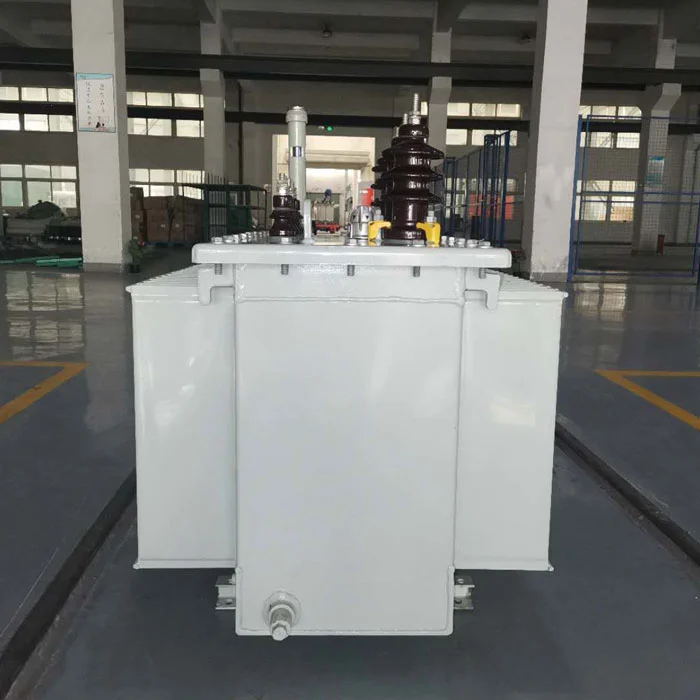

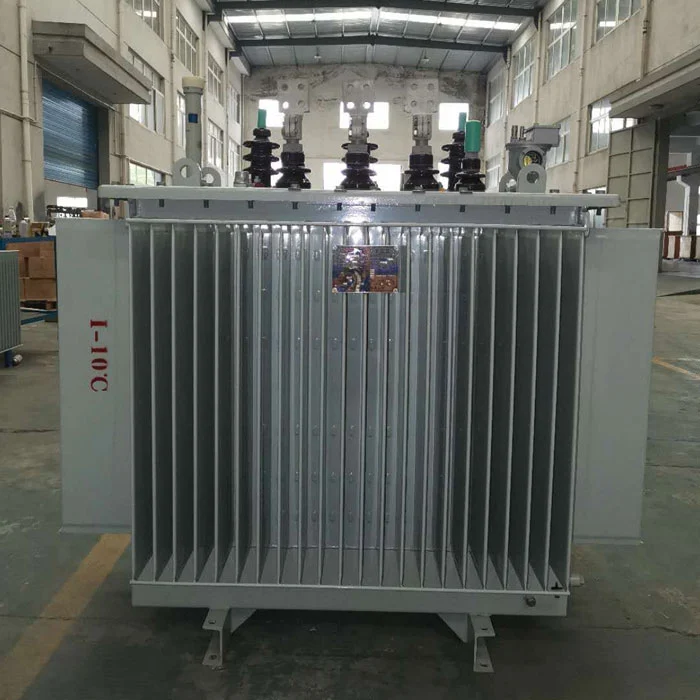

SGOB is a China high-quality 1000kva Oil Immersed Transformer manufacturer. It is a type of power transformer in which the iron core and windings are immersed in insulating oil with premium quality materials,including precision-cut silicon steel laminations for the core and high-conductivity copper wire for the windings, the SGOB 1000kva Oil Immersed Power Distribution Transformer is built to last. Its sturdy construction ensures durability and reliability, even in harsh industrial environments and demanding operational conditions.
What's Oil Immersed Transformer?
The 1000kva Oil Type Power Distribution Transformer is a type of power transformer with Rated power 1000kva in which the iron core and windings are immersed in insulating oil. Taking SGOB 1000kva 1000kva Oil Immersed Transformer as an example, its main body is sealed within a sturdy welded steel oil tank, and the tank is filled with transformer oil. This oil simultaneously performs both insulation and cooling functions: During operation, the heat generated by the electromagnetic components is first transferred to the insulating oil, and then the heat is dissipated to the surrounding environment through the natural convection of the oil or additional cooling devices, achieving efficient heat dissipation and temperature control, ensuring the long-term stable operation of the equipment under the rated capacity. This 1000kva Hermetically Sealed Oil-Immersed Distribution Transformer have a sturdy structure, strong overload capacity, and a long maintenance cycle, and are typical choices for high-load nodes in industrial power distribution, infrastructure, and power systems.
Product Advantages
The SGOB 1000kva Oil Immersed Type Transformer is a robust and reliable power distribution solution, widely used in various industries due to its high efficiency and large capacity. With a rated power of 1000 kVA, this transformer is specifically designed to meet the huge energy demands of large industrial operations, commercial facilities, and utility systems.
The compact design and easy installation of the SGOB 1000 kVA transformer make it a versatile option suitable for various applications. Whether integrated into large manufacturing plants, busy commercial buildings, or critical utility infrastructure, this transformer can seamlessly adapt to various setups and environments.
This transformer is manufactured with high-quality materials, including precisely cut silicon steel sheets for the core and high-conductivity copper wires for the windings. Its design is intended to be durable. The sturdy structure ensures its durability and reliability, even in harsh industrial environments and demanding operating conditions.
The 1000kva High Frequency Oil Immersed transformer 's oil-immersed design of the SGOB 1000 kVA transformer is crucial for its operational performance. By immersing the transformer's core and windings in transformer oil, the equipment can effectively control heat dissipation and ensure excellent insulation performance, which is essential for maintaining high efficiency and preventing electrical failures.
In addition, this transformer is equipped with advanced protection features, enhancing safety and minimizing downtime risks. Overload and short-circuit protection, as well as a thermal monitoring system, provide comprehensive safety guarantees for potential hazards, ensuring the transformer always operates within safe parameters.
Apart from its outstanding technical performance, the SGOB 1000 kVA oil-immersed transformer also takes sustainability into consideration. It uses non-toxic and biodegradable transformer oil, minimizing its environmental impact, while its long-lasting design reduces the need for frequent replacements, further enhancing its environmental image.
What's the component of 1000kva Oil Filled Distribution Transformer?
●Oil Level Gauge
●High Voltage Terminal
●Low Voltage Terminal
●The Fuel Tank
●Heat Sinks Screw
●Oil Drain Valve
●Installaion Foot
PRODUCT FEATURES
The 1000kva Three Phase Electrical Oil Immersed Transformer produced by our company adopts a new insulation structure to improve the short-circuit resistance;the iron core is made of high-quality cold-rolled silicon steel sheet; the high-voltage winding is made of high-quality oxygen free copper wire and adopts multi-layer cylindrical structure;all fasteners are treated with special anti loosening treatment.
1000kva Oil Immersed Transformer has the characteristics of high efficiency and low loss which can several of power consumption and operation cost,and has significant social benefits.It is a high-tech product promoted by the state.
The SGOB 1000kva Oil Immersed Transformer , manufactured and supplied by a leading Chinese manufacturer, are highly advanced electrical devices engineered to meet the rigorous demands of modern power distribution systems. Crafted with precision and utilizing cutting-edge technology, these transformers are renowned for their exceptional durability, efficiency, and reliability. As a trusted supplier in China, the manufacturer offers a comprehensive range of 1000kva Oil Immersed Transformer tailored to suit various applications, ensuring optimal performance and long-term value to customers worldwide.
RELIABLE STRUCTURE
Based on the traditional structure and mature technology,our company has made many improvements.
◆ The spiral coil with longitudinal oil passage has better internal heat dissipation
◆ The effective support of coil end face is improved,and the ability of short-circuit current resistance is stronger;
◆ New hoisting structure and body positioning structure are adopted to ensure more reliable in long-distance transportation and operate or
◆ We also have many unique and reliable structures to serve you;
◆ The transformer with higher performance level will have higher technical content.
HIGH QUALITY MATERIALS
A series of additional surface treatment,this smoother and has no burr Sharp angle,so that he load loss of transformer is lower and the electric.
With the improvement of performance level,the silicon steel sheet with lower unit loss is used to reduce the no-load loss of transformer.
Choose high quality laminated wood insulation,never crack,even under the action of short-circuit current.
High quality rubber sealing material is selected to effectively prevent
All raw materials have passed the quality inspection,and all raw material manufacturers have passed the strict examination according to the national standard IS09000.
OUR THREE PHASE OIL IMMERSED TRANSFORMERS
● New insulating structure to improve the anti-short circuit ability
● High-quality cold-rolled silicon steel iron core
● Selected high-quality oxygen-free copper wire
● Multi-layer cylindrical structure high-voltage windings
● Special anti-loose treatment for all of the fasteners.
PARAMETERS
| MODEL |
CAPACITY (KVA) |
HV (KV) |
LV (KV) |
NO LOAD LOSS (KW) |
IMPENDENCE (%) |
WEIGHT (KG) |
DIMENSION (L*W*H MM) |
| S11-M-30/10 | 30 | 6-20 | 0.2-0.4 | 0.10 | 4 | 325 | 750*470*930 |
| S11-M-50/10 | 50 | 0.13 | 4 | 420 | 800*490*1000 | ||
| S11-M-630/10 | 63 | 0.15 | 4 | 470 | 840*500*1010 | ||
| S11-M-80/10 | 80 | 0.18 | 4 | 540 | 870*510*1130 | ||
| S11-M-100/10 | 100 | 0.20 | 4 | 605 | 890*520*1140 | ||
| S11-M-125/10 | 125 | 0.24 | 4 | 680 | 920*590*1150 | ||
| S11-M-160/10 | 160 | 0.27 | 4 | 790 | 1110*580*1170 | ||
| S11-M-200/10 | 200 | 0.33 | 4 | 930 | 1160*620*1225 | ||
| S11-M-250/10 | 250 | 0.40 | 4 | 1100 | 1230*660*1270 | ||
| S11-M-315/10 | 315 | 0.48 | 4 | 1250 | 1250*680*1300 | ||
| S11-M-400/10 | 400 | 0.57 | 4 | 1550 | 1380*750*1380 | ||
| S11-M-500/10 | 500 | 0.68 | 4 | 1820 | 1430*770*1420 | ||
| S11-M-630/10 | 630 | 0.81 | 4.5 | 2065 | 1560*865*1480 | ||
| S11-M-800/10 | 800 | 0.98 | 4.5 | 2510 | 1620*880*1520 | ||
| S11-M-1000/10 | 1000 | 1.15 | 4.5 | 2890 | 1830*1070*1540 | ||
| S11-M-1250/10 | 1250 | 1.36 | 4.5 | 3425 | 1850*1100*1660 | ||
| S11-M-1600/10 | 1600 | 1.64 | 4.5 | 4175 | 1950*1290*1730 | ||
| S11-M-2000/10 | 2000 | 2.05 | 4.5 | 4510 | 2090*1290*1760 | ||
| S11-M-2500/10 | 2500 | 2.50 | 5.5 | 5730 | 2140*1340*1910 | ||
| S11-M-3150/10 | 3150 | 2.80 | 5.5 | 7060 | 2980*2050*2400 |
COMPANY PROFILE
Shanghai Industry Transformers Co., Ltd (SGOB) is a full-range supplier of electrical distribution equipment. Our products include:
● Oil-immersed transformers
● 35KV oil-immersed transformers
● Expoxy resin insulation dry-type power transformers
● Amorphous alloy distribution transformers
● Photovoltaic transformers
● Wind power transformers
● Box-style substation transformers
Our company was founded in 2007 and today has a 40,000sqm workshop and more than 200 employees. Our products are widely used in a broad range of industries such as power generation and distribution, coal production, metallurgy, oil and gas, chemicals, construction, ports, airports, railway and municipal infrastructure.
We also produce related equipment such as electrical cabinets and enclosures, switchgear boxes Currently, we are expanding our product line into other power-related areas like hot shrink connectors, electrical cables and associated mechanical equipment etc. Our goal is to build a one-stop electrical equipment and parts supply platform for our global customer base.
We rely on our strict quality control system to deliver the highest quality products. Of our 200 employees, 46 are engineers experience. Our quality system includes qualifications for:
● National Transformers Quality Supervision Center of China
● ISO-9001:2008 Quality Management System
● ISO-14001:2004 Environmental Management System
● OHSMS18000 Health and Safety System
Our Patents:
Our production and quality testing capabilities include:
● Automatic foil winding
● Digital silicone steel sheeting and slitting
● Fully automatic vacuum drying oven and varnish line
● HAEFLY partial discharge tester
● HAEFLY power analyzer
● HAEFLY harmonic analyzer
The result is a superior product of high efficiency, lower power dissipation and low noise to maximize your infrastructure investment.
