As a professional manufacturer in China, SGOB is committed to providing you with high-quality 300kva Three Phase Oil Immersed Transformers, which are designed with advanced technology to ensure efficient and reliable power distribution for various application scenarios. As a trusted manufacturer and supplier, we provide customized services to ensure that each product has high quality and good durability.

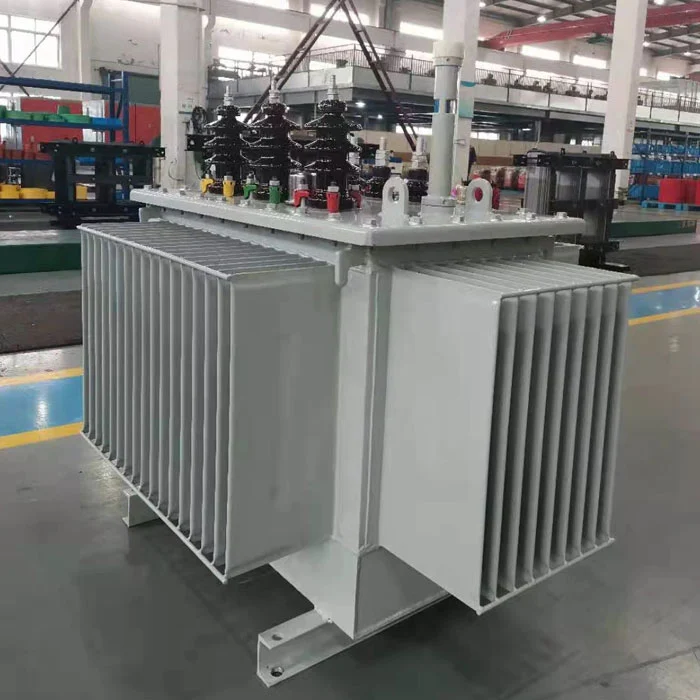

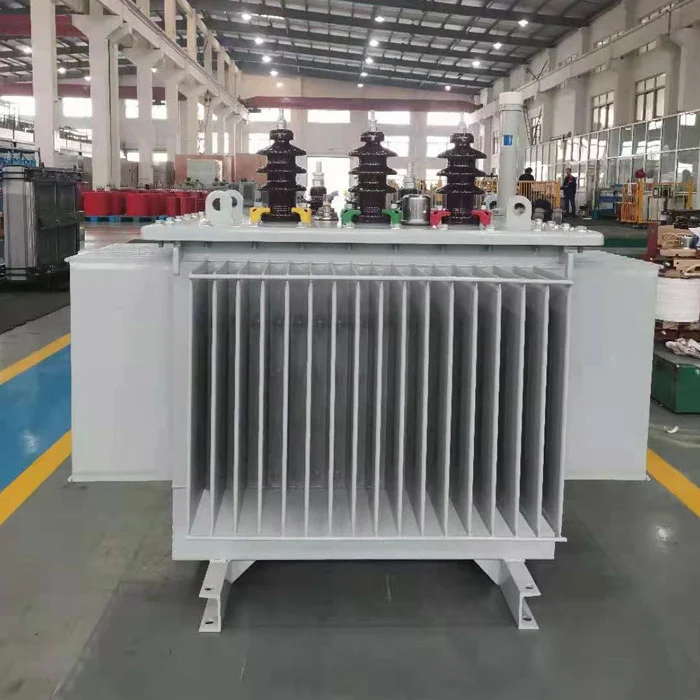

SGOB high quality 300kva Three Phase Oil Immersed Transformer safely and stably converts the high voltage of the grid to the low voltage required by your equipment. It is the core equipment for ensuring smooth power flow in daily operation.
High efficiency and low operating costs: We use high-performance cold-rolled silicon steel sheet iron core and high-quality oxygen-free copper wire winding to reduce no-load loss and load loss to a minimum. This means that over a long life cycle, the 300kva Three Phase Oil Immersed Transformer can provide you with significant savings in electricity bills, reduced energy waste, and a win-win situation for both economic and environmental benefits.
High environmental adaptability: oil-immersed design is its natural advantage. Insulating oil not only provides stable heat dissipation performance, but more importantly, it provides excellent insulation, moisture and dust protection for the internal core and coil like a layer of "protective armor". This allows our transformers to withstand moisture, salt spray and dust in environments such as outdoors and industrial areas, ensuring stable operation under harsh conditions and greatly reducing the risk of failure due to environmental factors.
Structural reinforcement for long-term stability: We have made several practical improvements to our proven traditional structure. For example, the design of spiral coil and longitudinal oil duct enhances the internal heat dissipation effect; the coil end is effectively supported to enhance the ability to resist short-circuit current impact; and the new hoisting and body positioning structure ensures that the internal structure remains stable after long-distance transportation. These details are all about one goal: delivering a durable device with a longer life and lower maintenance requirements.
| MODEL |
CAPACITY (KVA) |
HV (KV) |
LV (KV) |
NO LOAD LOSS (KW) |
IMPENDENCE (%) |
WEIGHT (KG) |
DIMENSION (L*W*H MM) |
| S11-M-30/10 | 30 | 6-20 | 0.2-0.4 | 0.10 | 4 | 325 | 750*470*930 |
| S11-M-50/10 | 50 | 0.13 | 4 | 420 | 800*490*1000 | ||
| S11-M-630/10 | 63 | 0.15 | 4 | 470 | 840*500*1010 | ||
| S11-M-80/10 | 80 | 0.18 | 4 | 540 | 870*510*1130 | ||
| S11-M-100/10 | 100 | 0.20 | 4 | 605 | 890*520*1140 | ||
| S11-M-125/10 | 125 | 0.24 | 4 | 680 | 920*590*1150 | ||
| S11-M-160/10 | 160 | 0.27 | 4 | 790 | 1110*580*1170 | ||
| S11-M-200/10 | 200 | 0.33 | 4 | 930 | 1160*620*1225 | ||
| S11-M-250/10 | 250 | 0.40 | 4 | 1100 | 1230*660*1270 | ||
| S11-M-315/10 | 315 | 0.48 | 4 | 1250 | 1250*680*1300 | ||
| S11-M-400/10 | 400 | 0.57 | 4 | 1550 | 1380*750*1380 | ||
| S11-M-500/10 | 500 | 0.68 | 4 | 1820 | 1430*770*1420 | ||
| S11-M-630/10 | 630 | 0.81 | 4.5 | 2065 | 1560*865*1480 | ||
| S11-M-800/10 | 800 | 0.98 | 4.5 | 2510 | 1620*880*1520 | ||
| S11-M-1000/10 | 1000 | 1.15 | 4.5 | 2890 | 1830*1070*1540 | ||
| S11-M-1250/10 | 1250 | 1.36 | 4.5 | 3425 | 1850*1100*1660 | ||
| S11-M-1600/10 | 1600 | 1.64 | 4.5 | 4175 | 1950*1290*1730 | ||
| S11-M-2000/10 | 2000 | 2.05 | 4.5 | 4510 | 2090*1290*1760 | ||
| S11-M-2500/10 | 2500 | 2.50 | 5.5 | 5730 | 2140*1340*1910 | ||
| S11-M-3150/10 | 3150 | 2.80 | 5.5 | 7060 | 2980*2050*2400 |
Selected materials: From low-loss silicon steel sheet, non-cracking laminated wood insulation, to high-quality rubber sealing materials, all raw materials have passed strict quality inspection, suppliers have passed ISO9000 system audit.
Precision manufacturing: All fasteners on the 300kva Three Phase Oil Immersed Transformer are specially anti-loose; the coil adopts multi-layer cylindrical structure; the core surface is specially treated to be smooth and burr-free, further reducing losses.
Authoritative certification: Our production system has passed ISO9001 quality management system, ISO14001 environmental management system certification, products also meet the standards of the National Transformer Quality Supervision and Inspection Center, quality has evidence to follow.
Industrial and commercial power supply: Small factories, workshops, shopping malls, office buildings distribution system.
Infrastructure construction: Basic power supply of street lamp system, pumping station and communication base station.
Agriculture and rural: Farm irrigation systems, terminal distribution of rural community power grids.
Project Package: As the core component of the box-type substation, the 300kva Three Phase Oil Immersed Transformer can supply power to various temporary or permanent construction sites.
