The versatility of the SGOB 3150kva Oil Immersed Transformer makes it suitable for a wide range of applications. From large manufacturing plants and refining operations to hospitals, data centers, and utility substations, this transformer is capable of meeting the unique power needs of various industries. Its ability to provide consistent and reliable power is crucial in maintaining operational efficiency, ensuring the safety and functionality of critical infrastructure, and supporting the growth and development of modern society.
In the dynamic landscape of electrical engineering and power distribution, the SGOB 3150kva Oil Immersed Transformer emerges as a formidable solution tailored for high-capacity power requirements. This transformer, with its robust construction and advanced design, is engineered to deliver reliable and efficient power to a variety of industrial, commercial, and utility applications.

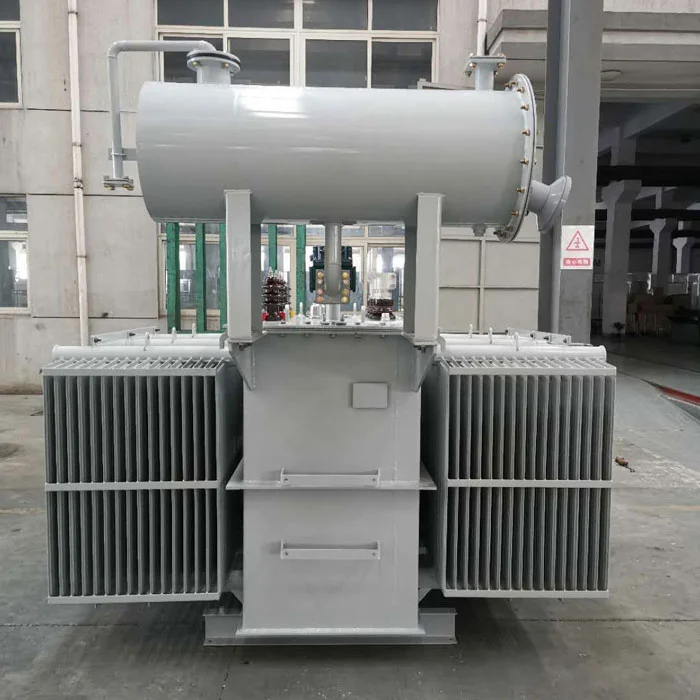

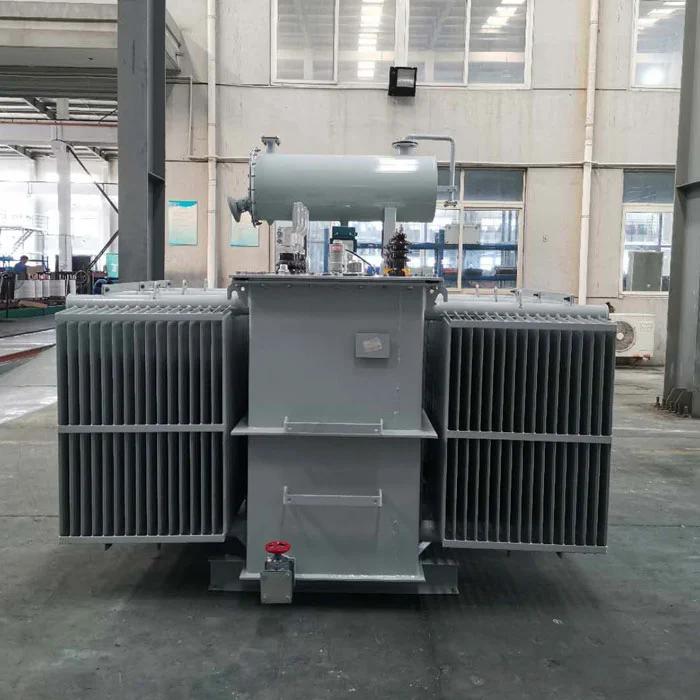

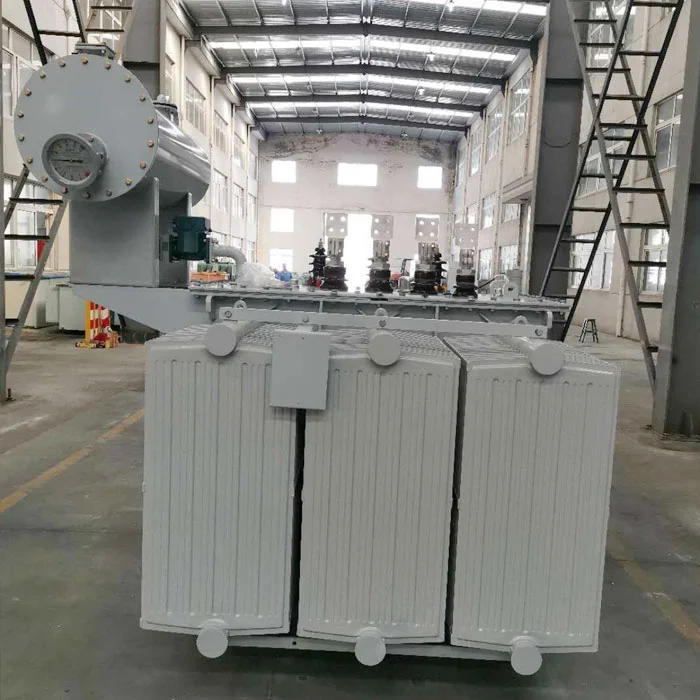

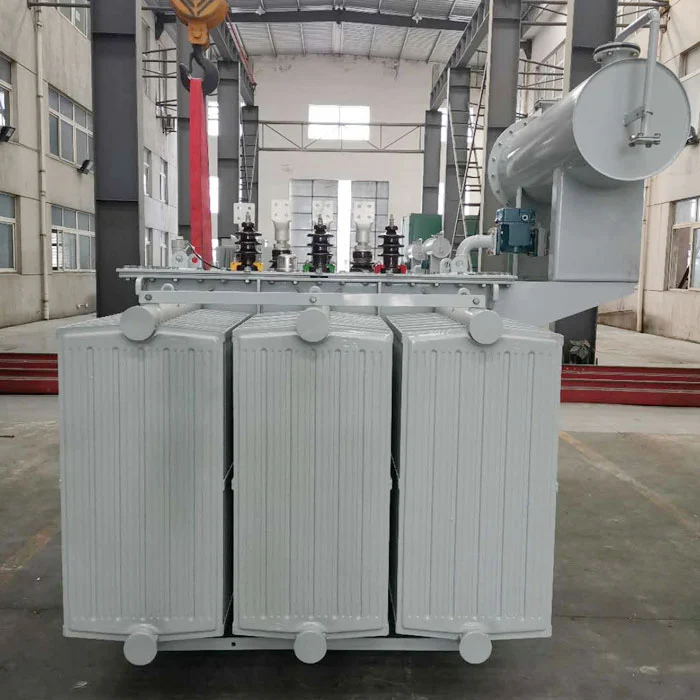

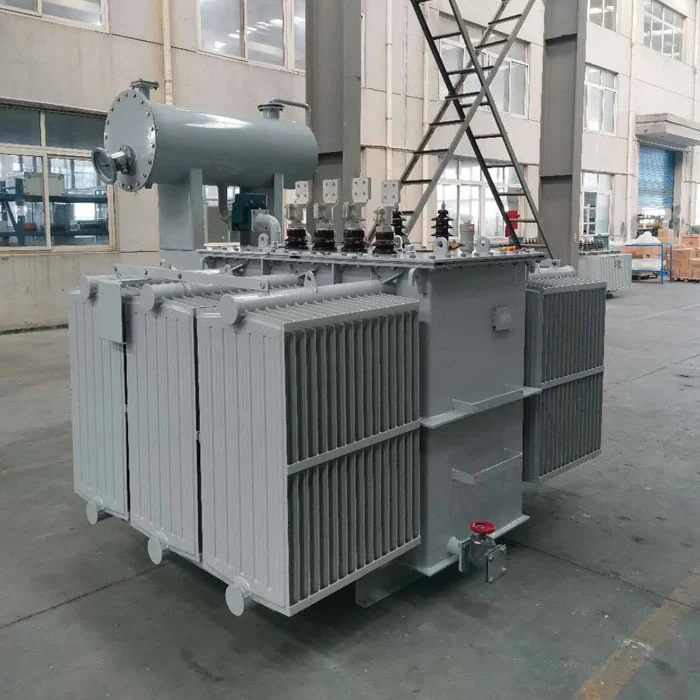

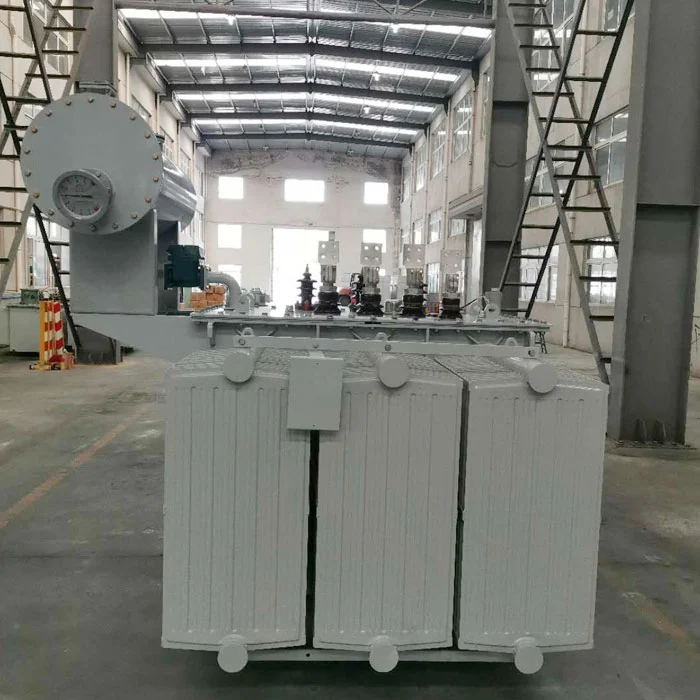

The SGOB 3150kva Oil Immersed Transformer boasts a rated capacity of 3150 kilovolt-amperes (kva), making it an ideal choice for large-scale operations that demand significant electrical loads. Its oil-immersed cooling system is a hallmark of its design, providing superior thermal management and insulation properties. This ensures that the transformer operates within safe temperature limits, even under heavy loads and in harsh environmental conditions.
The oil in the transformer serves as both a coolant and a dielectric medium, effectively dissipating heat while maintaining electrical isolation between the transformer's core and windings. This dual functionality contributes to the transformer's overall reliability and longevity, reducing the risk of thermal overload and electrical faults.
In addition to its cooling capabilities, the SGOB 3150kva Oil Immersed Transformer offers a range of advanced features that enhance its performance and safety.
PRODUCT FEATURES
The three-phase oil diffused distribution transformer produced by our company adopts a new insulation structure to improve the short-circuit resistance;the iron core is made of high-quality cold-rolled silicon steel sheet; the high-voltage winding is made of high-quality oxygen free copper wire and adopts multi-layer cylindrical structure;all fasteners are treated with special anti loosening treatment.
3150kva Oil Immersed Transformer has the characteristics of high efficiency and low loss which can several of power consumption and operation cost,and has significant social benefits.It is a high-tech product promoted by the state.
The SGOB 3150kva Oil Immersed Transformer , manufactured and supplied by a leading Chinese manufacturer, are highly advanced electrical devices engineered to meet the rigorous demands of modern power distribution systems. Crafted with precision and utilizing cutting-edge technology, these transformers are renowned for their exceptional durability, efficiency, and reliability. As a trusted supplier in China, the manufacturer offers a comprehensive range of 3150kva Oil Immersed Transformer tailored to suit various applications, ensuring optimal performance and long-term value to customers worldwide.
RELIABLE STRUCTURE
Based on the traditional structure and mature technology,our company has made many improvements.
◆ The spiral coil with longitudinal oil passage has better internal heat dissipation
◆ The effective support of coil end face is improved,and the ability of short-circuit current resistance is stronger;
◆ New hoisting structure and body positioning structure are adopted to ensure more reliable in long-distance transportation and operate or
◆ We also have many unique and reliable structures to serve you;
◆ The transformer with higher performance level will have higher technical content.
HIGH QUALITY MATERIALS
A series of additional surface treatment,this smoother and has no burr Sharp angle,so that he load loss of transformer is lower and the electric.
With the improvement of performance level,the silicon steel sheet with lower unit loss is used to reduce the no-load loss of transformer.
Choose high quality laminated wood insulation,never crack,even under the action of short-circuit current.
High quality rubber sealing material is selected to effectively prevent
All raw materials have passed the quality inspection,and all raw material manufacturers have passed the strict examination according to the national standard IS09000.
OUR THREE PHASE OIL IMMERSED TRANSFORMERS
● New insulating structure to improve the anti-short circuit ability
● High-quality cold-rolled silicon steel iron core
● Selected high-quality oxygen-free copper wire
● Multi-layer cylindrical structure high-voltage windings
● Special anti-loose treatment for all of the fasteners.
PARAMETERS
| MODEL |
CAPACITY (KVA) |
HV (KV) |
LV (KV) |
NO LOAD LOSS (KW) |
IMPENDENCE (%) |
WEIGHT (KG) |
DIMENSION (L*W*H MM) |
| S11-M-30/10 | 30 | 6-20 | 0.2-0.4 | 0.10 | 4 | 325 | 750*470*930 |
| S11-M-50/10 | 50 | 0.13 | 4 | 420 | 800*490*1000 | ||
| S11-M-630/10 | 63 | 0.15 | 4 | 470 | 840*500*1010 | ||
| S11-M-80/10 | 80 | 0.18 | 4 | 540 | 870*510*1130 | ||
| S11-M-100/10 | 100 | 0.20 | 4 | 605 | 890*520*1140 | ||
| S11-M-125/10 | 125 | 0.24 | 4 | 680 | 920*590*1150 | ||
| S11-M-160/10 | 160 | 0.27 | 4 | 790 | 1110*580*1170 | ||
| S11-M-200/10 | 200 | 0.33 | 4 | 930 | 1160*620*1225 | ||
| S11-M-250/10 | 250 | 0.40 | 4 | 1100 | 1230*660*1270 | ||
| S11-M-315/10 | 315 | 0.48 | 4 | 1250 | 1250*680*1300 | ||
| S11-M-400/10 | 400 | 0.57 | 4 | 1550 | 1380*750*1380 | ||
| S11-M-500/10 | 500 | 0.68 | 4 | 1820 | 1430*770*1420 | ||
| S11-M-630/10 | 630 | 0.81 | 4.5 | 2065 | 1560*865*1480 | ||
| S11-M-800/10 | 800 | 0.98 | 4.5 | 2510 | 1620*880*1520 | ||
| S11-M-1000/10 | 1000 | 1.15 | 4.5 | 2890 | 1830*1070*1540 | ||
| S11-M-1250/10 | 1250 | 1.36 | 4.5 | 3425 | 1850*1100*1660 | ||
| S11-M-1600/10 | 1600 | 1.64 | 4.5 | 4175 | 1950*1290*1730 | ||
| S11-M-2000/10 | 2000 | 2.05 | 4.5 | 4510 | 2090*1290*1760 | ||
| S11-M-2500/10 | 2500 | 2.50 | 5.5 | 5730 | 2140*1340*1910 | ||
| S11-M-3150/10 | 3150 | 2.80 | 5.5 | 7060 | 2980*2050*2400 |
COMPANY PROFILE
Shanghai Industry Transformers Co., Ltd (SGOB) is a full-range supplier of electrical distribution equipment. Our products include:
● Oil-immersed transformers
● 35KV oil-immersed transformers
● Expoxy resin insulation dry-type power transformers
● Amorphous alloy distribution transformers
● Photovoltaic transformers
● Wind power transformers
● Box-style substation transformers
Our company was founded in 2007 and today has a 40,000sqm workshop and more than 200 employees. Our products are widely used in a broad range of industries such as power generation and distribution, coal production, metallurgy, oil and gas, chemicals, construction, ports, airports, railway and municipal infrastructure.
We also produce related equipment such as electrical cabinets and enclosures, switchgear boxes Currently, we are expanding our product line into other power-related areas like hot shrink connectors, electrical cables and associated mechanical equipment etc. Our goal is to build a one-stop electrical equipment and parts supply platform for our global customer base.
We rely on our strict quality control system to deliver the highest quality products. Of our 200 employees, 46 are engineers experience. Our quality system includes qualifications for:
● National Transformers Quality Supervision Center of China
● ISO-9001:2008 Quality Management System
● ISO-14001:2004 Environmental Management System
● OHSMS18000 Health and Safety System
Our Patents:
Our production and quality testing capabilities include:
● Automatic foil winding
● Digital silicone steel sheeting and slitting
● Fully automatic vacuum drying oven and varnish line
● HAEFLY partial discharge tester
● HAEFLY power analyzer
● HAEFLY harmonic analyzer
The result is a superior product of high efficiency, lower power dissipation and low noise to maximize your infrastructure investment.
