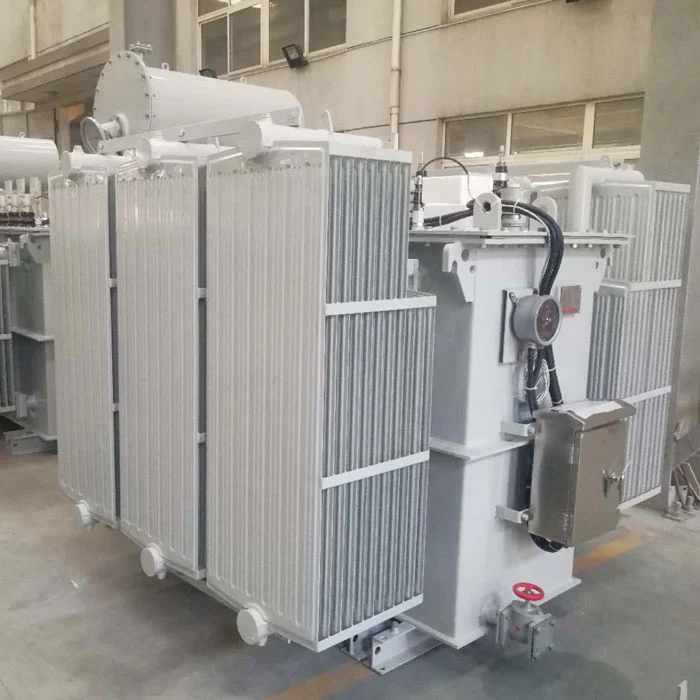

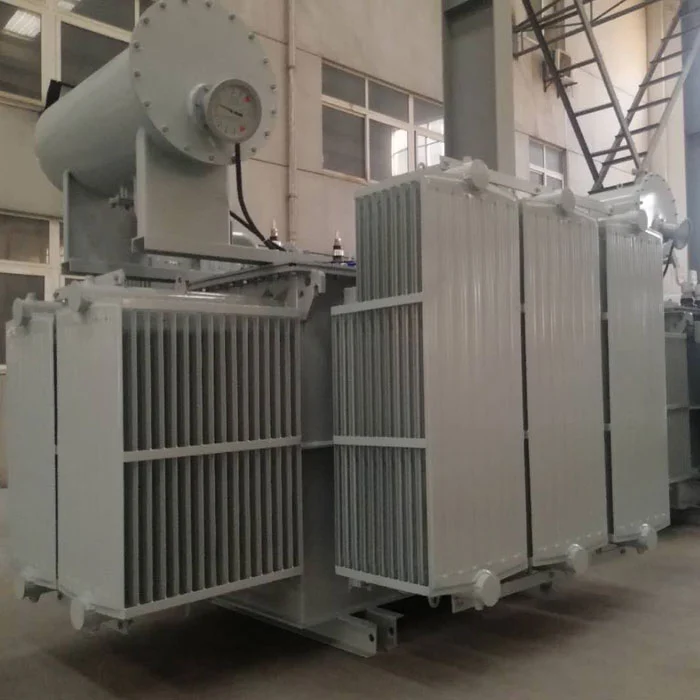

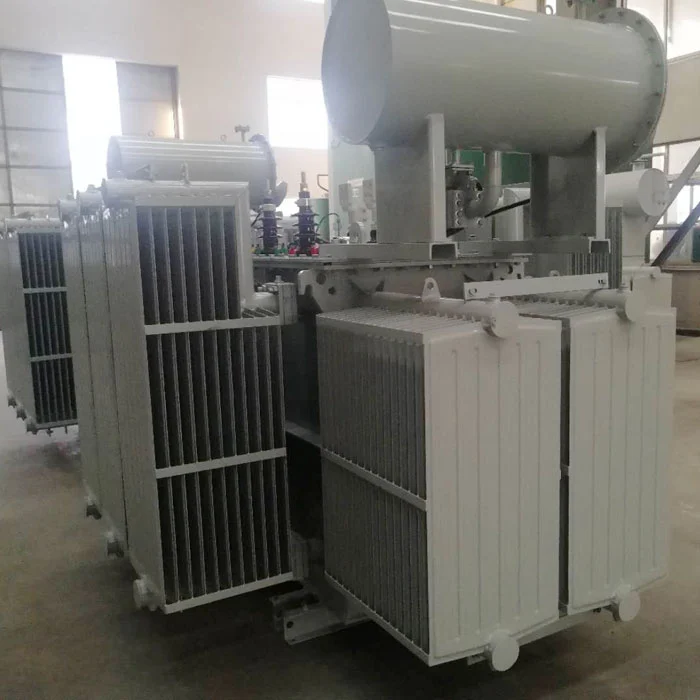

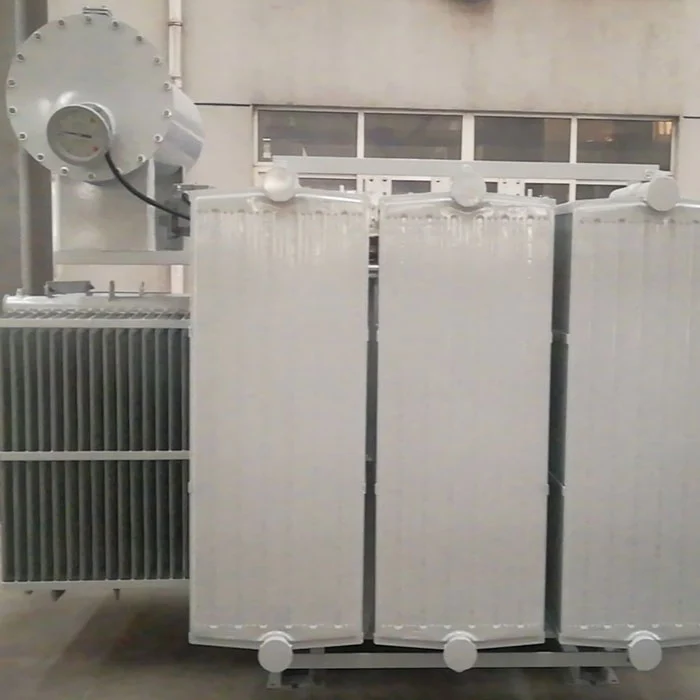

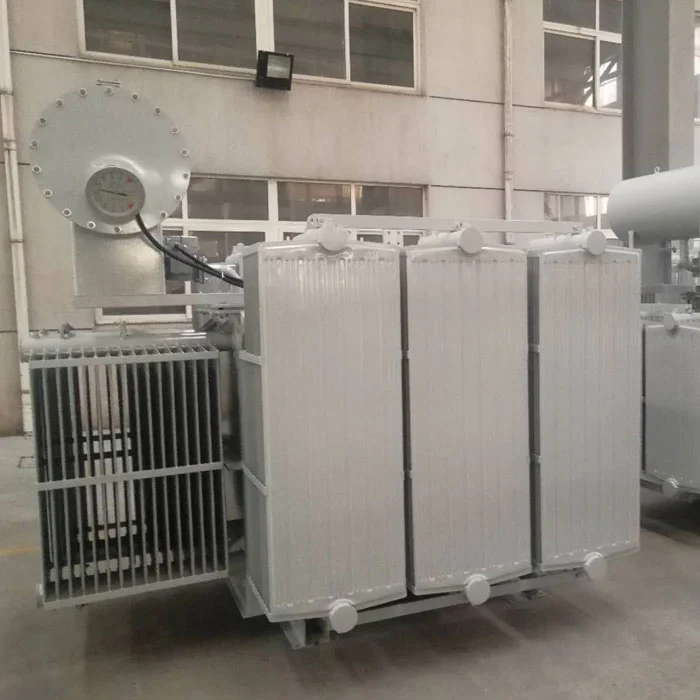

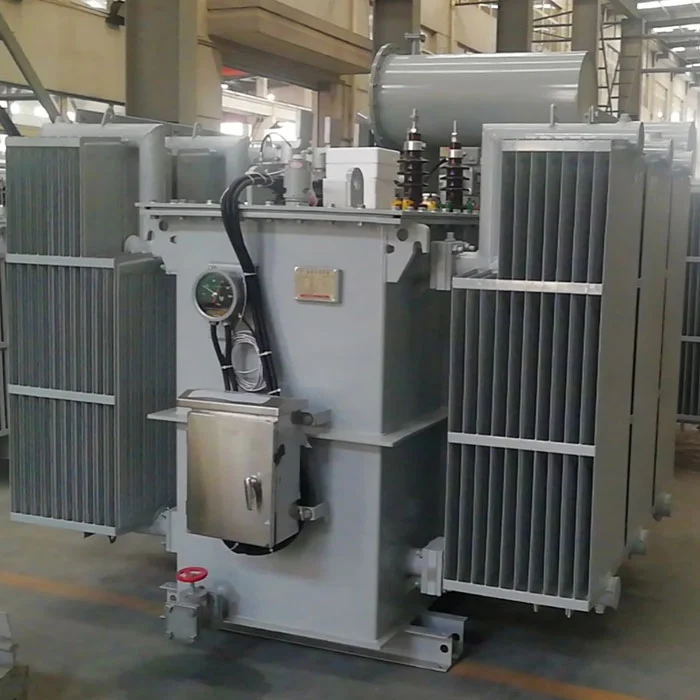

SGOB 4000kva Oil Immersed Transformer stands as a testament to technological advancements and the relentless pursuit of efficiency and reliability. This transformer, with its impressive capacity of 4000 kilovolt-amperes (kva), is specifically engineered to cater to the high-power demands of various industries, ensuring seamless and efficient energy transfer.
The SGOB 4000kva Oil Immersed Transformer is a pivotal component in the electrical infrastructure of various industries. Its combination of robust construction, advanced cooling systems, protective devices, and high efficiency makes it an ideal choice for industries seeking reliable, efficient, and cost-effective power solutions. As the demand for electrical power continues to grow, the SGOB 4000kva Oil Immersed Transformer will play an increasingly important role in ensuring the seamless and efficient operation of modern society's critical infrastructure.
Key Features and Benefits
Oil-Immersed Cooling System:
The transformer's core and windings are immersed in high-quality insulating oil, which serves as an effective coolant.
This system ensures that the transformer operates within safe temperature limits, even under heavy loads, thereby extending its lifespan and reducing maintenance costs.
Robust Construction:
Built with high-strength materials and precision engineering, the SGOB 4000kva Oil Immersed Transformer is designed to withstand the rigors of industrial environments.
Its welded steel tank provides excellent protection against leaks and external damage, ensuring continuous and reliable operation.
Advanced Protection Systems:
Equipped with a suite of protective devices, including overcurrent, overvoltage, and temperature relays, the transformer is capable of monitoring and regulating electrical parameters in real-time.
This ensures that any potential faults or anomalies are detected and addressed promptly, preventing costly downtime and ensuring the safety of personnel and equipment.
High Efficiency and Energy Savings:
The transformer is designed to minimize energy losses during power transfer, contributing to significant cost savings and reduced environmental impact.
Its efficient operation helps industries meet their sustainability goals and comply with relevant regulations and standards.
Versatility and Customization:
The SGOB 4000kva transformer can be customized to meet the unique power needs of various industries, including manufacturing, refining, healthcare, data centers, and utilities.
Its modular design facilitates easy installation, maintenance, and upgrades, making it an ideal choice for industries seeking flexible and scalable power solutions.
Applications and Industries
The SGOB 4000kva Oil-Immersed Transformer finds widespread application in a variety of industries, including:
Manufacturing: Provides reliable power for machinery, equipment, and production lines, ensuring seamless manufacturing processes.
Refining: Supports the operation of refining equipment and processes, contributing to the efficient production of fuels and chemicals.
Healthcare: Ensures continuous power supply for critical medical equipment and infrastructure, safeguarding patient care and safety.
Data Centers: Provides stable and reliable power for servers, storage systems, and networking equipment, ensuring uninterrupted data processing and communication.
Utilities: Supports the distribution and transmission of electrical power, ensuring that homes, businesses, and industries receive a consistent and reliable power supply.
PRODUCT FEATURES
The three-phase oil diffused distribution transformer produced by our company adopts a new insulation structure to improve the short-circuit resistance;the iron core is made of high-quality cold-rolled silicon steel sheet; the high-voltage winding is made of high-quality oxygen free copper wire and adopts multi-layer cylindrical structure;all fasteners are treated with special anti loosening treatment.
4000kva Oil Immersed Transformer has the characteristics of high efficiency and low loss which can several of power consumption and operation cost,and has significant social benefits.It is a high-tech product promoted by the state.
The SGOB 4000kva Oil Immersed Transformer , manufactured and supplied by a leading Chinese manufacturer, are highly advanced electrical devices engineered to meet the rigorous demands of modern power distribution systems. Crafted with precision and utilizing cutting-edge technology, these transformers are renowned for their exceptional durability, efficiency, and reliability. As a trusted supplier in China, the manufacturer offers a comprehensive range of 4000kva Oil Immersed Transformer tailored to suit various applications, ensuring optimal performance and long-term value to customers worldwide.
RELIABLE STRUCTURE
Based on the traditional structure and mature technology,our company has made many improvements.
◆ The spiral coil with longitudinal oil passage has better internal heat dissipation
◆ The effective support of coil end face is improved,and the ability of short-circuit current resistance is stronger;
◆ New hoisting structure and body positioning structure are adopted to ensure more reliable in long-distance transportation and operate or
◆ We also have many unique and reliable structures to serve you;
◆ The transformer with higher performance level will have higher technical content.
HIGH QUALITY MATERIALS
A series of additional surface treatment,this smoother and has no burr Sharp angle,so that he load loss of transformer is lower and the electric.
With the improvement of performance level,the silicon steel sheet with lower unit loss is used to reduce the no-load loss of transformer.
Choose high quality laminated wood insulation,never crack,even under the action of short-circuit current.
High quality rubber sealing material is selected to effectively prevent
All raw materials have passed the quality inspection,and all raw material manufacturers have passed the strict examination according to the national standard IS09000.
OUR THREE PHASE OIL IMMERSED TRANSFORMERS
● New insulating structure to improve the anti-short circuit ability
● High-quality cold-rolled silicon steel iron core
● Selected high-quality oxygen-free copper wire
● Multi-layer cylindrical structure high-voltage windings
● Special anti-loose treatment for all of the fasteners.
PARAMETERS
| MODEL |
CAPACITY (KVA) |
HV (KV) |
LV (KV) |
NO LOAD LOSS (KW) |
IMPENDENCE (%) |
WEIGHT (KG) |
DIMENSION (L*W*H MM) |
| S11-M-30/10 | 30 | 6-20 | 0.2-0.4 | 0.10 | 4 | 325 | 750*470*930 |
| S11-M-50/10 | 50 | 0.13 | 4 | 420 | 800*490*1000 | ||
| S11-M-630/10 | 63 | 0.15 | 4 | 470 | 840*500*1010 | ||
| S11-M-80/10 | 80 | 0.18 | 4 | 540 | 870*510*1130 | ||
| S11-M-100/10 | 100 | 0.20 | 4 | 605 | 890*520*1140 | ||
| S11-M-125/10 | 125 | 0.24 | 4 | 680 | 920*590*1150 | ||
| S11-M-160/10 | 160 | 0.27 | 4 | 790 | 1110*580*1170 | ||
| S11-M-200/10 | 200 | 0.33 | 4 | 930 | 1160*620*1225 | ||
| S11-M-250/10 | 250 | 0.40 | 4 | 1100 | 1230*660*1270 | ||
| S11-M-315/10 | 315 | 0.48 | 4 | 1250 | 1250*680*1300 | ||
| S11-M-400/10 | 400 | 0.57 | 4 | 1550 | 1380*750*1380 | ||
| S11-M-500/10 | 500 | 0.68 | 4 | 1820 | 1430*770*1420 | ||
| S11-M-630/10 | 630 | 0.81 | 4.5 | 2065 | 1560*865*1480 | ||
| S11-M-800/10 | 800 | 0.98 | 4.5 | 2510 | 1620*880*1520 | ||
| S11-M-1000/10 | 1000 | 1.15 | 4.5 | 2890 | 1830*1070*1540 | ||
| S11-M-1250/10 | 1250 | 1.36 | 4.5 | 3425 | 1850*1100*1660 | ||
| S11-M-1600/10 | 1600 | 1.64 | 4.5 | 4175 | 1950*1290*1730 | ||
| S11-M-2000/10 | 2000 | 2.05 | 4.5 | 4510 | 2090*1290*1760 | ||
| S11-M-2500/10 | 2500 | 2.50 | 5.5 | 5730 | 2140*1340*1910 | ||
| S11-M-3150/10 | 3150 | 2.80 | 5.5 | 7060 | 2980*2050*2400 |
COMPANY PROFILE
Shanghai Industry Transformers Co., Ltd (SGOB) is a full-range supplier of electrical distribution equipment. Our products include:
● Oil-immersed transformers
● 35KV oil-immersed transformers
● Expoxy resin insulation dry-type power transformers
● Amorphous alloy distribution transformers
● Photovoltaic transformers
● Wind power transformers
● Box-style substation transformers
Our company was founded in 2007 and today has a 40,000sqm workshop and more than 200 employees. Our products are widely used in a broad range of industries such as power generation and distribution, coal production, metallurgy, oil and gas, chemicals, construction, ports, airports, railway and municipal infrastructure.
We also produce related equipment such as electrical cabinets and enclosures, switchgear boxes Currently, we are expanding our product line into other power-related areas like hot shrink connectors, electrical cables and associated mechanical equipment etc. Our goal is to build a one-stop electrical equipment and parts supply platform for our global customer base.
We rely on our strict quality control system to deliver the highest quality products. Of our 200 employees, 46 are engineers experience. Our quality system includes qualifications for:
● National Transformers Quality Supervision Center of China
● ISO-9001:2008 Quality Management System
● ISO-14001:2004 Environmental Management System
● OHSMS18000 Health and Safety System
Our Patents:
Our production and quality testing capabilities include:
● Automatic foil winding
● Digital silicone steel sheeting and slitting
● Fully automatic vacuum drying oven and varnish line
● HAEFLY partial discharge tester
● HAEFLY power analyzer
● HAEFLY harmonic analyzer
The result is a superior product of high efficiency, lower power dissipation and low noise to maximize your infrastructure investment.
