As a professional transformer manufacturer in China, SGOB offers reliable 50kva Oil Immersed Transformer. Suitable for installation on power towers or in substations, these transformers provide basic power for daily lighting systems and industrial production facilities. Their performance parameters and requirements comply with IEC and Chinese national standards, ensuring safe and stable energy conversion and transmission under various operating conditions.

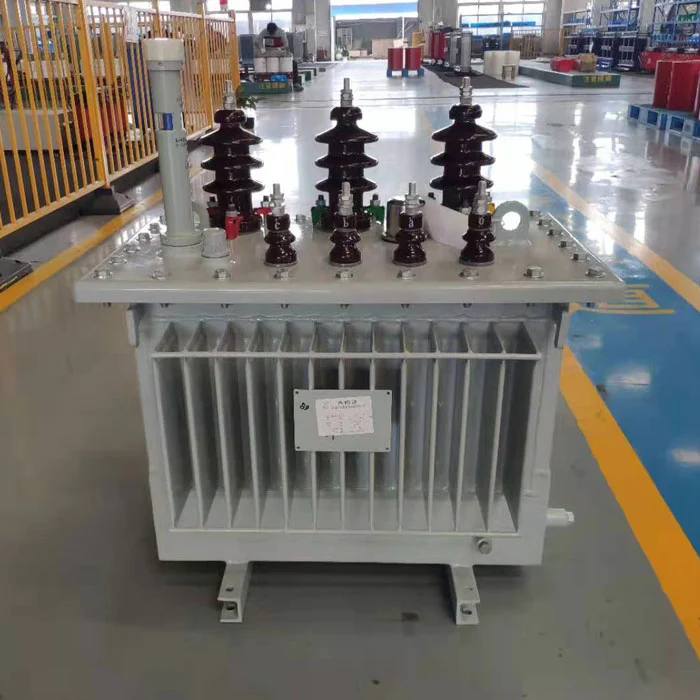

SGOB's high quality 50kVA Oil Distribution Transformer has a rated power of 50kVA and a low-voltage output of up to 0.4kV. It is a fully sealed transformer without an oil conservator, completely isolating the transformer oil from air and sunlight, preventing oxidation and moisture, thereby slowing insulation aging and extending its service life. Our 50kVA distribution transformers are designed with advanced technology and utilize high-quality materials and components for reliable quality and a long service life.
SGOB ensures that every transformer we deliver undergoes comprehensive acceptance testing, and we have maintained a zero-failure record to date. SGOB 50kva transformer adheres to international standards such as IEC60076 and GB1094, ensuring its quality and safety. It is certified with ISO9001-2015, ISO14001-2004, and OHSMS18000, which further validates its compliance with quality, environmental, and occupational health and safety management systems.
The SGOB 50kVA Oil Distribution Transformer utilizes an innovative sealed structure, replacing traditional oil storage devices with a nitrogen-shielded protective design to effectively isolate it from external environmental corrosion. This technology significantly reduces the oxidation rate of the internal medium by 80% and keeps annual moisture absorption to extremely low levels, significantly slowing the aging process and extending its overall service life to 30 years.
The insulation system utilizes a special oil-liquid combination of materials, achieving the highest level of protection in the industry. Its ability to withstand extreme voltage surges exceeds international standards by 20%, ensuring stable operation in harsh environments. This design, through optimized material ratios and structural layout, maintains excellent electrical performance and mechanical strength even under continuous high-intensity operation.
The SGOB 50kVA Oil Distribution Transformer excels in structural stability and operational reliability, meeting the stable power supply needs of industrial applications. The manufacturer strictly adheres to international technical specifications and employs a comprehensive quality control system to ensure the product has passed multiple safety certifications. This transformer is suitable for applications in energy, transportation, and construction, and is particularly suited to continuous operation under complex operating conditions.
Structural Features
The 50kVA Oil Distribution Transformer utilizes a reinforced insulation structure for enhanced shock resistance. Core components are constructed from high-permeability silicon steel sheets, and the conductors are wound with high-purity copper in multiple layers. Key connections are treated to prevent loosening. Its low-loss characteristics can reduce energy consumption by nearly 30%, meeting national standards for energy-saving technology promotion.
Material Processing
Refined surface treatment eliminates sharp structural angles, effectively controlling load losses. Low-loss silicon steel sheets are used as the magnetic material to reduce no-load energy consumption. Wooden insulation components resist deformation, and sealing materials eliminate leakage risks. All raw materials are verified under national quality standards, and supplier qualifications are subject to access control.
Company Qualifications
The company boasts a 40,000 square meter production facility and a professional R&D team, offering products covering over 30 categories of power equipment. With a comprehensive quality control process and numerous national patents, the company is equipped with advanced production lines such as automatic winding and vacuum impregnation, along with precision testing equipment, ensuring its products' high efficiency, energy saving, low noise, and stability.
HIGH QUALITY MATERIALS
A series of additional surface treatments are employed to ensure a smoother finish with no sharp edges, which contributes to reducing the transformer's load loss and enhancing its electrical performance.
As performance standards continue to rise, silicon steel sheets with lower unit losses are utilized to minimize the transformer's no-load losses.
High-quality laminated wood insulation is chosen for its durability, ensuring 50kVA Oil Distribution Transformer never cracks, even under the stress of short-circuit currents.
We have selected premium rubber sealing material to effectively prevent leakage and ensure tightness.
All raw materials have undergone rigorous quality inspections, and their manufacturers have been thoroughly examined in accordance with the national IS09000 standard.
OUR THREE PHASE OIL DISTRIBUTION TRANSFORMERS
● New insulating structure to improve the anti-short circuit ability
● High-quality cold-rolled silicon steel iron core
● Selected high-quality oxygen-free copper wire
● Multi-layer cylindrical structure high-voltage windings
● Special anti-loose treatment for all of the fasteners.
PARAMETERS
| MODEL |
CAPACITY (KVA) |
HV (KV) |
LV (KV) |
NO LOAD LOSS (KW) |
IMPENDENCE (%) |
WEIGHT (KG) |
DIMENSION (L*W*H MM) |
| S11-M-30/10 | 30 | 6-20 | 0.2-0.4 | 0.10 | 4 | 325 | 750*470*930 |
| S11-M-50/10 | 50 | 0.13 | 4 | 420 | 800*490*1000 | ||
| S11-M-630/10 | 63 | 0.15 | 4 | 470 | 840*500*1010 | ||
| S11-M-80/10 | 80 | 0.18 | 4 | 540 | 870*510*1130 | ||
| S11-M-100/10 | 100 | 0.20 | 4 | 605 | 890*520*1140 | ||
| S11-M-125/10 | 125 | 0.24 | 4 | 680 | 920*590*1150 | ||
| S11-M-160/10 | 160 | 0.27 | 4 | 790 | 1110*580*1170 | ||
| S11-M-200/10 | 200 | 0.33 | 4 | 930 | 1160*620*1225 | ||
| S11-M-250/10 | 250 | 0.40 | 4 | 1100 | 1230*660*1270 | ||
| S11-M-315/10 | 315 | 0.48 | 4 | 1250 | 1250*680*1300 | ||
| S11-M-400/10 | 400 | 0.57 | 4 | 1550 | 1380*750*1380 | ||
| S11-M-500/10 | 500 | 0.68 | 4 | 1820 | 1430*770*1420 | ||
| S11-M-630/10 | 630 | 0.81 | 4.5 | 2065 | 1560*865*1480 | ||
| S11-M-800/10 | 800 | 0.98 | 4.5 | 2510 | 1620*880*1520 | ||
| S11-M-1000/10 | 1000 | 1.15 | 4.5 | 2890 | 1830*1070*1540 | ||
| S11-M-1250/10 | 1250 | 1.36 | 4.5 | 3425 | 1850*1100*1660 | ||
| S11-M-1600/10 | 1600 | 1.64 | 4.5 | 4175 | 1950*1290*1730 | ||
| S11-M-2000/10 | 2000 | 2.05 | 4.5 | 4510 | 2090*1290*1760 | ||
| S11-M-2500/10 | 2500 | 2.50 | 5.5 | 5730 | 2140*1340*1910 | ||
| S11-M-3150/10 | 3150 | 2.80 | 5.5 | 7060 | 2980*2050*2400 |
We also produce related equipment such as electrical cabinets and enclosures, switchgear boxes Currently, we are expanding our product line into other power-related areas like hot shrink connectors, electrical cables and associated mechanical equipment etc. Our goal is to build a one-stop electrical equipment and parts supply platform for our global customer base.
Our production and quality testing capabilities include:
● Automatic foil winding
● Digital silicone steel sheeting and slitting
● Fully automatic vacuum drying oven and varnish line
● HAEFLY partial discharge tester
● HAEFLY power analyzer
● HAEFLY harmonic analyzer
The result is a superior product of high efficiency, lower power dissipation and low noise to maximize your infrastructure investment.
