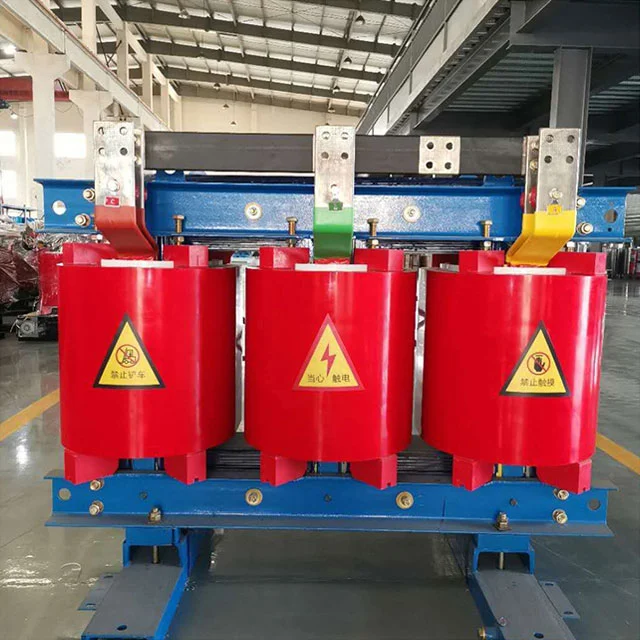

SGOB is a leading China 630kva Dry Transformer supplier. It boasts a compact footprint and durable construction, making it ideal for installation in space-constrained environments. Its robust build ensures long-term reliability and seamless operation, even in demanding industrial settings. The transformer's ability to support substantial loads makes it an excellent choice for applications where consistent high power demands are critical.
Product Advantages
SGOB 630kva Dry Transformer is a high-capacity electrical device, specially designed to meet the strict requirements of modern industrial, commercial and institutional environments. Its powerful rated power of 630kVA makes it a reliable and efficient power solution.
The 630kva Dry Type Transformer achieves a fusion of power, efficiency and environmental sustainability in a reliable product. This transformer, with its compact design, robust structure and advanced insulating materials, is an ideal choice for a variety of applications, ensuring smooth power distribution and excellent operation.
SGOB 630kva Insulation Dry Type Transformer Transformer eliminates the risk of oil leaks, reducing maintenance and environmental impact. This environmentally friendly transformer aligns with global sustainability efforts, promoting cleaner energy solutions and minimizing carbon emissions.
Thank to SGOB 630kva Dry Transformer Dry-type transformers's compact and durable design features, can adapt to installation environments with limited space and withstand large power loads. This feature makes it an ideal choice for critical locations with tight space conditions and continuous high power demands. Its robust structural design ensures that the equipment can maintain long-term reliable and stable operation even in harsh industrial environments.
In addition to its robust power handling capabilities, the SGOB 630kva Dry Type Power Distribution Transformer offers impressive energy efficiency. It minimizes energy losses, maximizing power delivery to the load and reducing operational costs. This makes it an ideal choice for businesses seeking to optimize their energy consumption and reduce their carbon footprint.
What does Dry Transformer do?
Dry-type transformers are mainly used to achieve safe voltage transformation and efficient distribution. They are naturally cooled by air rather than insulating oil, thus having outstanding advantages such as good fire resistance, environmental friendliness and easy maintenance. This type of transformer is particularly suitable for indoor places or sensitive environments with high requirements for safety and cleanliness, such as hospitals, schools, large shopping malls and industrial plants. Meanwhile, in special scenarios such as tunnels and mines where there are potential flammability risks or space limitations, it is also an ideal choice for ensuring reliable power supply and reducing fire hazards.
PRODUCT FEATURES
SGOB 630kva Epoxy Resin Cast Dry Type Transformer produced by Shanghai Industrial Transformer Co., Ltd. is developed and designed in cooperation with Shenyang Transformer Research Institute by introducing advanced foreign technology. The product reliability index has reached the international advanced level.
It is safe, flame-retardant and fire-proof, pollution-free, and can be directly installed in the load center. It is maintenance-free, easy to install, has low comprehensive operating cost, low loss, good moisture-proof performance, can operate normally at 100% humidity, and can be put into operation without pre-drying after shutdown. It has low partial discharge, low noise, strong heat dissipation function, and can operate at 150% rated load under forced air cooling conditions.
It's now widely used in high-rise buildings, commercial centers, airports, stations, docks, subways, factories, underground distribution stations, offshore oil drilling platforms, power plants and other places with harsh environments and use conditions.
Main materials and features
The iron core of the transformer is made of 30EH120 series of high-permeability cold-rolled silicon steel sheets with orderly grain orientation imported from Nippon Steel, Japan, with 45° full-bevel joints and four-level step-by-step stacking. The surface of the iron core is sealed with insulating resin paint to prevent moisture and rust, and the two clamps and fasteners have anti-corrosion protective layers. The entire iron core adopts a non-stacked iron yoke and steel pull plate structure, which effectively reduces no-load loss, no-load current and iron core noise.
For low voltage and high current coils, the short circuit stress is large when short circuit occurs, and the number of low voltage turns is small. The larger the low voltage current is, the more prominent the problem of unstable ampere-turns will be when the wire winding type is used. The heat dissipation problem also needs to be considered. At this time, the use of foil winding for low voltage can better solve the above problems. First of all, foil products do not have axial turns and axial winding spiral angles. The ampere-turns of high and low voltage windings are balanced, and the axial stress of the transformer is small when short circuit occurs. Secondly, due to its thin insulation, multi-layer air ducts can be set at will in the process, and the heat dissipation problem is also better solved. The internal welding of the coil adopts xenon protection welding on the fully automatic foil winding machine, which has high precision, low welding resistance, and no external welding process. DMD insulation is used between the winding layers, and the ends are sealed and cured with resin after winding.
The coil uses F-class insulated copper wire as conductor and glass fiber and epoxy resin composite material as insulation. Its expansion coefficient is close to that of copper conductor and has good impact resistance, temperature change resistance and crack resistance. All components of glass fiber and epoxy resin are self-extinguishing and will not continue to burn. At the same time, the high-voltage coil is cast with epoxy resin under 1mbar vacuum state, and there are no bubbles inside the coil, ensuring that the partial discharge of the coil is small. At the same time, the loss of the transformer is effectively reduced.
The cross-flow top-blowing cooling fan is adopted, which has the characteristics of low noise, high wind pressure, beautiful appearance, etc., and enhances the overload capacity of the transformer. The temperature control adopts an intelligent temperature controller to improve the safety and reliability of the transformer operation.
PRODUCT DESCRIPTION
Epoxy resin insulated dry type transformer is very safe product. It can be directly installed in the load center. It works well in the 100% humidity environment without pre-drying. It has been widely used in the constructions field, commercial center, airport, station, port, subway, factory, underground power distribution station, offshore oil drilling platform, power plant etc.
PRODUCT FEATURES
● Fire-resistant
● Moisture resistance
● Easy maintenance and installation
● Running well during rough environment conditions
● Non-polluting product
● Low loss during the comprehensive operation
PARAMETERS
| MODEL |
NO LOAD LOSS (W) |
LOAD LOSS (120%) |
IMPENDENCE (%) |
NOLOAD CURRENT (%) |
NOISE LEVEL (Lpa) dB |
WEIGHT (KG) |
| SC(B)10-30/10 | 205 | 750 | 4 | 2.3 | 57 | 290 |
| SC(B)10-50/10 | 285 | 1060 | 2.2 | 57 | 360 | |
| SC(B)10-80/10 | 380 | 1460 | 1.7 | 59 | 590 | |
| SC(B)10-100/10 | 410 | 1670 | 1.7 | 59 | 640 | |
| SC(B)10-125/10 | 470 | 1960 | 1.5 | 60 | 670 | |
| SC(B)10-160/10 | 550 | 2250 | 1.5 | 60 | 870 | |
| SC(B)10-200/10 | 650 | 2680 | 1.3 | 61 | 1040 | |
| SC(B)10-250/10 | 740 | 2920 | 1.3 | 61 | 1220 | |
| SC(B)10-315/10 | 880 | 3670 | 1.1 | 63 | 1470 | |
| SC(B)10-400/10 | 1000 | 4220 | 1.1 | 63 | 1760 | |
| SC(B)10-500/10 | 1180 | 5170 | 1.1 | 64 | 2050 | |
| SC(B)10-630/10 | 1300 | 6310 | 6 | 0.9 | 65 | 2360 |
| SC(B)10-800/10 | 1540 | 7360 | 0.9 | 65 | 2730 | |
| SC(B)10-1000/10 | 1750 | 8610 | 0.9 | 65 | 3270 | |
| SC(B)10-1250/10 | 2030 | 10260 | 0.9 | 67 | 3840 | |
| SC(B)10-1600/10 | 2700 | 12400 | 0.9 | 68 | 4920 | |
| SC(B)10-2000/10 | 3000 | 15300 | 0.7 | 70 | 5780 | |
| SC(B)10-2500/10 | 3500 | 18180 | 0.7 | 71 | 6600 | |
| SC(B)10-3150/10 | 4000 | 18800 | 0.5 | 71 | 7800 | |
| SC(B)10-4000/10 | 4700 | 22000 | 0.5 | 76 | 10000 |
| MODEL | DIMENSION(MM) | |||||||||
| a | b | c | d | e | f | g | h | K1 | K2 | |
| SC(Z)(B) 10-30/10 | 1120 | 850 | 1100 | 400 | 750 | 640 | 290 | 260 | 270 | 135 |
| SC(Z)(B) 10-50/10 | 1170 | 850 | 1160 | 400 | 810 | 700 | 310 | 270 | 290 | 145 |
| SC(Z)(B)10-80/10 | 1210 | 900 | 1240 | 450 | 890 | 760 | 320 | 280 | 290 | 145 |
| SC(Z)(B)10-100/10 | 1240 | 900 | 1280 | 450 | 940 | 880 | 320 | 275 | 295 | 142.5 |
| SC(Z)(B)10-125/10 | 1270 | 950 | 1330 | 550 | 980 | 920 | 325 | 280 | 310 | 155 |
| SC(Z)(B)10-160/10 | 1310 | 1100 | 1360 | 550 | 1010 | 960 | 305 | 260 | 315 | 157.5 |
| SC(Z)(B)10-200/10 | 1350 | 1140 | 1400 | 660 | 1050 | 980 | 310 | 265 | 340 | 170 |
| SC(Z)(B)10-250/10 | 1420 | 1210 | 1430 | 660 | 1075 | 1010 | 300 | 255 | 355 | 177.5 |
| SC(Z)(B)10-315/10 | 1460 | 1250 | 1460 | 660 | 1100 | 1050 | 305 | 260 | 365 | 182.5 |
| SC(Z)(B)10-400/10 | 1520 | 1280 | 1520 | 660 | 1165 | 1090 | 315 | 270 | 375 | 187.5 |
| SC(Z)(B)10-500/10 | 1530 | 1320 | 1580 | 660 | 1205 | 1150 | 320 | 275 | 385 | 182.5 |
| SC(Z)(B)10-630/10 | 1670 | 1350 | 1630 | 660 | 1280 | 1200 | 325 | 280 | 430 | 215 |
| SC(Z)(B)10-800/10 | 1680 | 1350 | 1650 | 820 | 1300 | 1220 | 340 | 295 | 445 | 222.5 |
| SC(Z)(B)10-1000/10 | 1770 | 1420 | 1750 | 820 | 1390 | 1310 | 345 | 300 | 465 | 232.5 |
| SC(Z)(B)10-1250/10 | 1880 | 1530 | 1790 | 820 | 1430 | 1350 | 355 | 310 | 485 | 242.5 |
| SC(Z)(B)10-1600/10 | 1960 | 1530 | 1860 | 1070 | 1520 | 1420 | 375 | 330 | 510 | 255 |
| SC(Z)(B)10-2000/10 | 2000 | 1620 | 1960 | 1070 | 1600 | 1500 | 395 | 350 | 510 | 255 |
| SC(Z)(B)10-2500/10 | 2100 | 1680 | 2040 | 1070 | 1680 | 1560 | 425 | 380 | 550 | 275 |
| SC(Z)(B)10-3150/10 | 2240 | 1750 | 2150 | 1070 | 1800 | 1660 | 460 | 410 | 580 | 290 |
| SC(Z)(B) 10-4000/10 | 2370 | 1840 | 2310 | 1070 | 1960 | 1800 | 500 | 450 | 630 | 315 |
| MODEL | CAPACITY (KVA) |
LENGTH (MM) |
WIDTH (MM) |
HEIGHT (MM) |
LONGITUDINAL (MM) | HORIZONTAL (MM) | WEIGHT (KG) |
| SC(Z)(B) 10-30/10 | 30 | 770 | 500 | 750 | 400 | 450 | 285 |
| SC(Z)(B) 10-50/10 | 50 | 820 | 500 | 810 | 400 | 450 | 330 |
| SC(Z)(B)10-80/10 | 80 | 860 | 550 | 890 | 450 | 500 | 465 |
| SC(Z)(B)10-100/10 | 100 | 890 | 650 | 940 | 450 | 600 | 530 |
| SC(Z)(B)10-125/10 | 125 | 920 | 650 | 980 | 550 | 600 | 640 |
| SC(Z)(B)10-160/10 | 160 | 960 | 800 | 1010 | 550 | 750 | 760 |
| SC(Z)(B)10-200/10 | 200 | 1000 | 800 | 1050 | 660 | 750 | 905 |
| SC(Z)(B)10-250/10 | 250 | 1070 | 900 | 1075 | 660 | 850 | 1085 |
| SC(Z)(B)10-315/10 | 315 | 1110 | 900 | 1100 | 660 | 850 | 1175 |
| SC(Z)(B)10-400/10 | 400 | 1170 | 900 | 1165 | 660 | 850 | 1460 |
| SC(Z)(B) 10-500/10 | 500 | 1180 | 970 | 1205 | 660 | 920 | 1670 |
| SC(Z)(B) 10-630/10 | 630 | 1320 | 1000 | 1280 | 660 | 950 | 1890 |
| SC(Z)(B)10-800/10 | 800 | 1325 | 1000 | 1300 | 820 | 950 | 2320 |
| SC(Z)(B)10-1000/10 | 1000 | 1420 | 1180 | 1390 | 820 | 950 | 2800 |
| SC(Z)(B)10-1250/10 | 1250 | 1530 | 1320 | 1430 | 820 | 1270 | 3255 |
| SC(Z)(B)10-1600/10 | 1600 | 1610 | 1320 | 1520 | 1070 | 1270 | 4115 |
| SC(Z)(B) 10-2000/10 | 2000 | 1650 | 1500 | 1600 | 1070 | 1450 | 4690 |
| SC(Z)(B)10-2500/10 | 2500 | 1750 | 1550 | 1680 | 1070 | 1500 | 5620 |
| SC(Z)(B) 10-3150/10 | 3150 | 1890 | 1550 | 1800 | 1070 | 1500 | 6850 |
| SC(Z)(B) 10-4000/10 | 4000 | 2020 | 1630 | 1960 | 1070 | 1580 | 8110 |
COMPANY PROFILE
Shanghai Industry Transformers Co., Ltd (SGOB) is a full-range supplier of electrical distribution equipment. Our products include:
● Oil-immersed transformers
● 35KV oil-immersed transformers
● Expoxy resin insulation dry-type power transformers
● Amorphous alloy distribution transformers
● Photovoltaic transformers
● Wind power transformers
● Box-style substation transformers
Our company was founded in 2007 and today has a 40,000sqm workshop and more than 200 employees. Our products are widely used in a broad range of industries such as power generation and distribution, coal production, metallurgy, oil and gas, chemicals, construction, ports, airports, railway and municipal infrastructure.
We also produce related equipment such as electrical cabinets and enclosures, switchgear boxes Currently, we are expanding our product line into other power-related areas like hot shrink connectors, electrical cables and associated mechanical equipment etc. Our goal is to build a one-stop electrical equipment and parts supply platform for our global customer base.
We rely on our strict quality control system to deliver the highest quality products. Of our 200 employees, 46 are engineers experience. Our quality system includes qualifications for:
● National Transformers Quality Supervision Center of China
● ISO-9001:2008 Quality Management System
● ISO-14001:2004 Environmental Management System
● OHSMS18000 Health and Safety System
Our Patents:
Our production and quality testing capabilities include:
● Automatic foil winding
● Digital silicone steel sheeting and slitting
● Fully automatic vacuum drying oven and varnish line
● HAEFLY partial discharge tester
● HAEFLY power analyzer
● HAEFLY harmonic analyzer
The result is a superior product of high efficiency, lower power dissipation and low noise to maximize your infrastructure investment.
