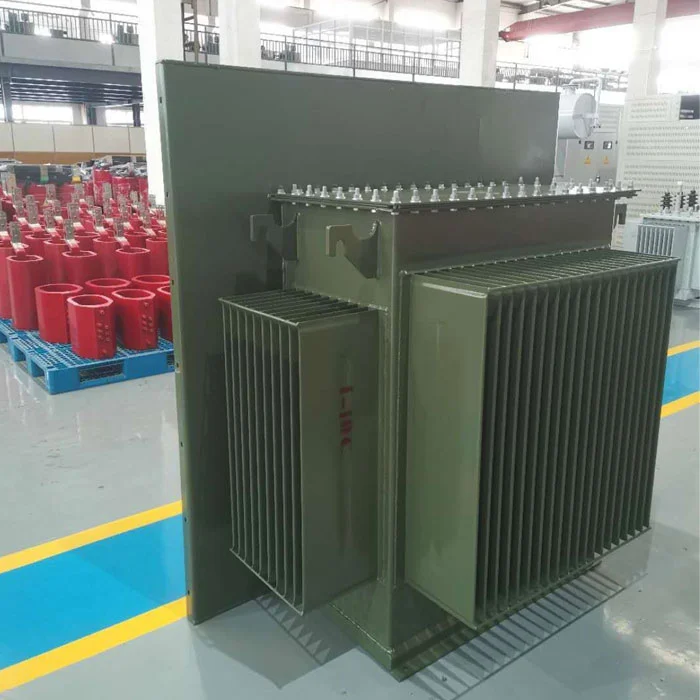

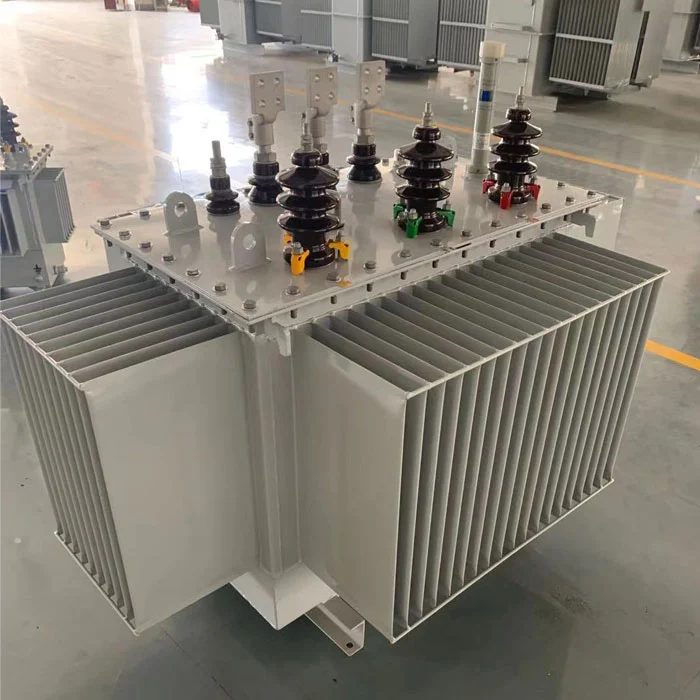

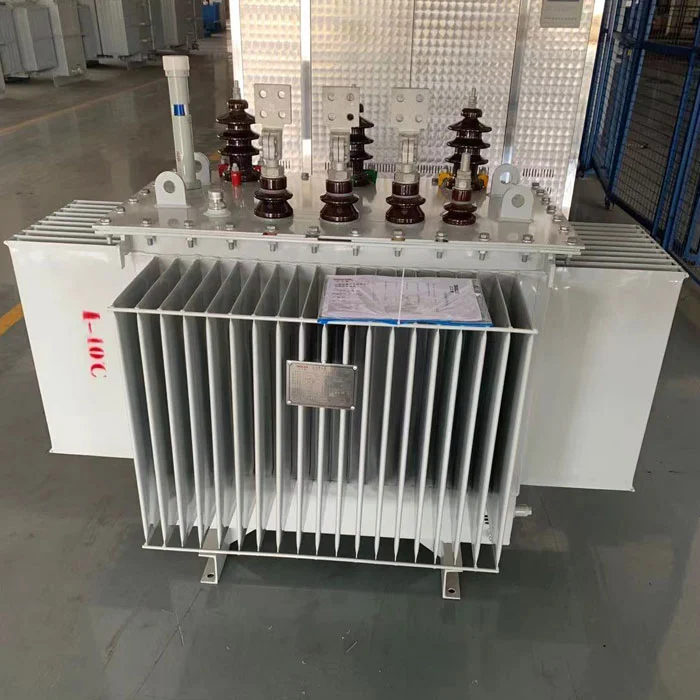

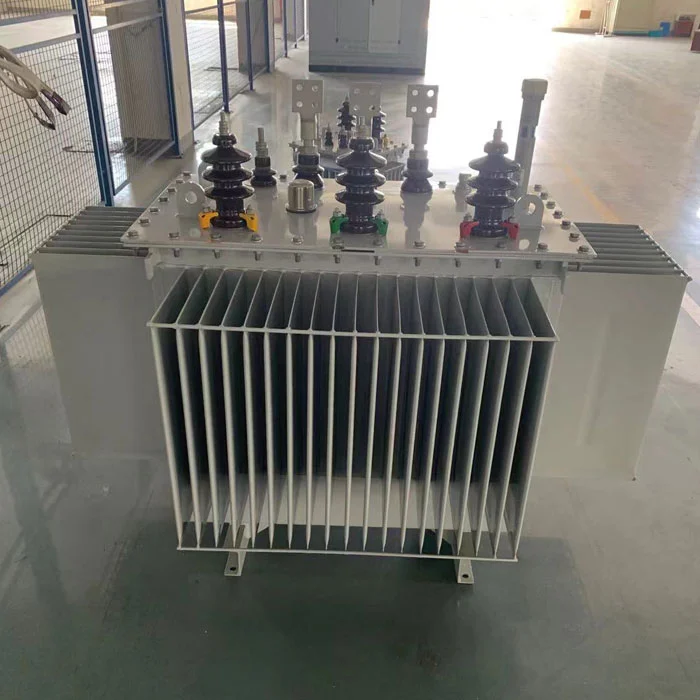

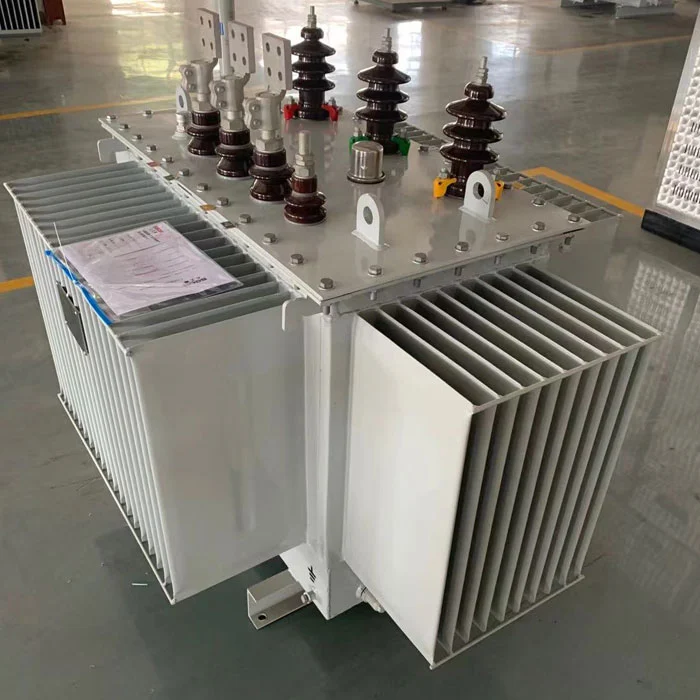

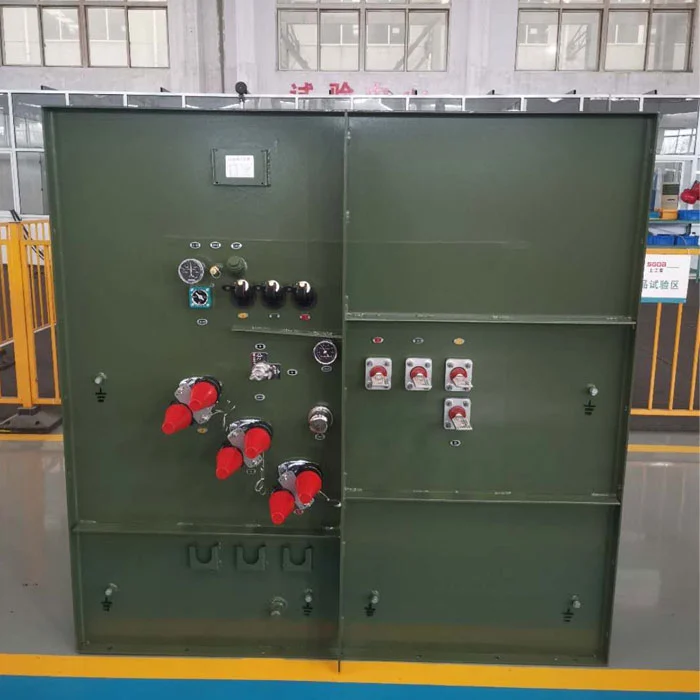

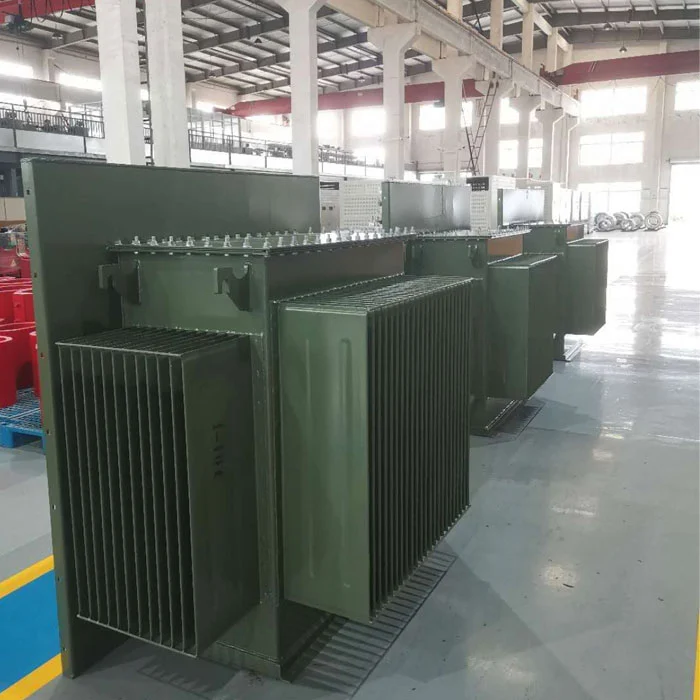

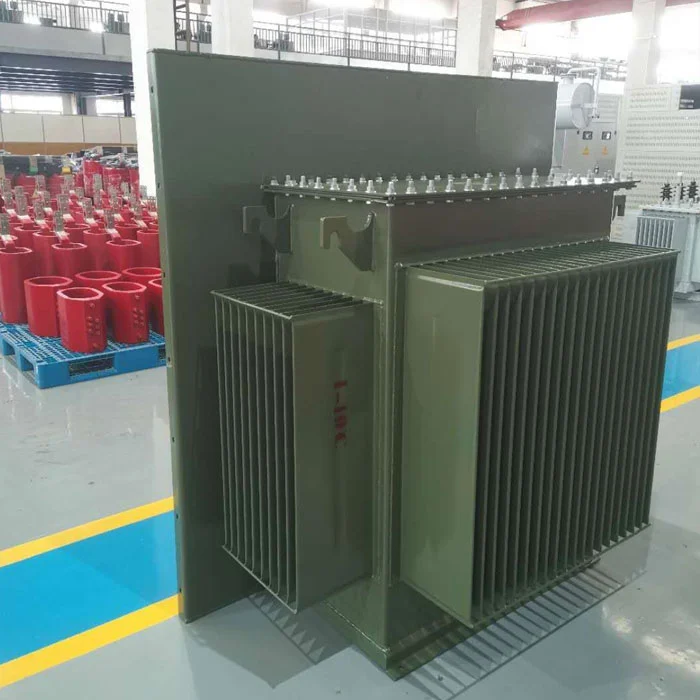

The SGOB 630kva Oil Immersed Transformer is a robust and versatile industrial-grade electrical device designed to meet the high-power demands of modern industrial applications. With a rated power output of 630 kilovolt-amperes (kva), this transformer is engineered to handle significant electrical loads, making it ideal for use in factories, manufacturing plants, mining operations, and other industrial settings where reliable and efficient power distribution is crucial.
The oil-immersed design of the SGOB 630kva Oil Immersed Transformer is a key feature that sets it apart from other transformers. By immersing the transformer's core and windings in high-quality transformer oil, the device is able to maintain optimal operating temperatures and provide effective insulation. This not only enhances the transformer's durability and lifespan but also ensures that it operates safely and efficiently under demanding conditions.
The transformer's core and windings are constructed using high-grade materials to ensure optimal performance and reliability. The core is made of cold-rolled silicon steel laminations, which minimize energy losses and contribute to the transformer's overall efficiency. The windings are constructed using high-conductivity copper wire, which is wound in layers to maximize heat dissipation and minimize electrical losses.
The SGOB 630kva Oil Immersed Transformer is equipped with advanced protection features to ensure safe and reliable operation. These include overload and short-circuit protection, which automatically shut down the transformer in the event of a fault, preventing damage to the equipment and ensuring the safety of personnel. Additionally, the transformer is designed with easy-to-access terminals and connections, making it simple to install and maintain.
The compact and rugged design of the SGOB 630kva Oil Immersed Transformer allows it to be installed in a variety of industrial environments, including those with limited space and harsh conditions. Its oil-immersed design also simplifies maintenance, as the oil acts as a natural lubricant and coolant, reducing friction and wear on internal components.
PRODUCT FEATURES
The three-phase oil diffused distribution transformer produced by our company adopts a new insulation structure to improve the short-circuit resistance;the iron core is made of high-quality cold-rolled silicon steel sheet; the high-voltage winding is made of high-quality oxygen free copper wire and adopts multi-layer cylindrical structure;all fasteners are treated with special anti loosening treatment.
630kva Oil Immersed Transformer has the characteristics of high efficiency and low loss which can several of power consumption and operation cost,and has significant social benefits.It is a high-tech product promoted by the state.
The SGOB 630kva Oil Immersed Transformer , manufactured and supplied by a leading Chinese manufacturer, are highly advanced electrical devices engineered to meet the rigorous demands of modern power distribution systems. Crafted with precision and utilizing cutting-edge technology, these transformers are renowned for their exceptional durability, efficiency, and reliability. As a trusted supplier in China, the manufacturer offers a comprehensive range of 630kva Oil Immersed Transformer tailored to suit various applications, ensuring optimal performance and long-term value to customers worldwide.
RELIABLE STRUCTURE
Based on the traditional structure and mature technology,our company has made many improvements.
◆ The spiral coil with longitudinal oil passage has better internal heat dissipation
◆ The effective support of coil end face is improved,and the ability of short-circuit current resistance is stronger;
◆ New hoisting structure and body positioning structure are adopted to ensure more reliable in long-distance transportation and operate or
◆ We also have many unique and reliable structures to serve you;
◆ The transformer with higher performance level will have higher technical content.
HIGH QUALITY MATERIALS
A series of additional surface treatment,this smoother and has no burr Sharp angle,so that he load loss of transformer is lower and the electric.
With the improvement of performance level,the silicon steel sheet with lower unit loss is used to reduce the no-load loss of transformer.
Choose high quality laminated wood insulation,never crack,even under the action of short-circuit current.
High quality rubber sealing material is selected to effectively prevent
All raw materials have passed the quality inspection,and all raw material manufacturers have passed the strict examination according to the national standard IS09000.
OUR THREE PHASE OIL IMMERSED TRANSFORMERS
● New insulating structure to improve the anti-short circuit ability
● High-quality cold-rolled silicon steel iron core
● Selected high-quality oxygen-free copper wire
● Multi-layer cylindrical structure high-voltage windings
● Special anti-loose treatment for all of the fasteners.
PARAMETERS
| MODEL |
CAPACITY (KVA) |
HV (KV) |
LV (KV) |
NO LOAD LOSS (KW) |
IMPENDENCE (%) |
WEIGHT (KG) |
DIMENSION (L*W*H MM) |
| S11-M-30/10 | 30 | 6-20 | 0.2-0.4 | 0.10 | 4 | 325 | 750*470*930 |
| S11-M-50/10 | 50 | 0.13 | 4 | 420 | 800*490*1000 | ||
| S11-M-630/10 | 63 | 0.15 | 4 | 470 | 840*500*1010 | ||
| S11-M-80/10 | 80 | 0.18 | 4 | 540 | 870*510*1130 | ||
| S11-M-100/10 | 100 | 0.20 | 4 | 605 | 890*520*1140 | ||
| S11-M-125/10 | 125 | 0.24 | 4 | 680 | 920*590*1150 | ||
| S11-M-160/10 | 160 | 0.27 | 4 | 790 | 1110*580*1170 | ||
| S11-M-200/10 | 200 | 0.33 | 4 | 930 | 1160*620*1225 | ||
| S11-M-250/10 | 250 | 0.40 | 4 | 1100 | 1230*660*1270 | ||
| S11-M-315/10 | 315 | 0.48 | 4 | 1250 | 1250*680*1300 | ||
| S11-M-400/10 | 400 | 0.57 | 4 | 1550 | 1380*750*1380 | ||
| S11-M-500/10 | 500 | 0.68 | 4 | 1820 | 1430*770*1420 | ||
| S11-M-630/10 | 630 | 0.81 | 4.5 | 2065 | 1560*865*1480 | ||
| S11-M-800/10 | 800 | 0.98 | 4.5 | 2510 | 1620*880*1520 | ||
| S11-M-1000/10 | 1000 | 1.15 | 4.5 | 2890 | 1830*1070*1540 | ||
| S11-M-1250/10 | 1250 | 1.36 | 4.5 | 3425 | 1850*1100*1660 | ||
| S11-M-1600/10 | 1600 | 1.64 | 4.5 | 4175 | 1950*1290*1730 | ||
| S11-M-2000/10 | 2000 | 2.05 | 4.5 | 4510 | 2090*1290*1760 | ||
| S11-M-2500/10 | 2500 | 2.50 | 5.5 | 5730 | 2140*1340*1910 | ||
| S11-M-3150/10 | 3150 | 2.80 | 5.5 | 7060 | 2980*2050*2400 |
COMPANY PROFILE
Shanghai Industry Transformers Co., Ltd (SGOB) is a full-range supplier of electrical distribution equipment. Our products include:
● Oil-immersed transformers
● 35KV oil-immersed transformers
● Expoxy resin insulation dry-type power transformers
● Amorphous alloy distribution transformers
● Photovoltaic transformers
● Wind power transformers
● Box-style substation transformers
Our company was founded in 2007 and today has a 40,000sqm workshop and more than 200 employees. Our products are widely used in a broad range of industries such as power generation and distribution, coal production, metallurgy, oil and gas, chemicals, construction, ports, airports, railway and municipal infrastructure.
We also produce related equipment such as electrical cabinets and enclosures, switchgear boxes Currently, we are expanding our product line into other power-related areas like hot shrink connectors, electrical cables and associated mechanical equipment etc. Our goal is to build a one-stop electrical equipment and parts supply platform for our global customer base.
We rely on our strict quality control system to deliver the highest quality products. Of our 200 employees, 46 are engineers experience. Our quality system includes qualifications for:
● National Transformers Quality Supervision Center of China
● ISO-9001:2008 Quality Management System
● ISO-14001:2004 Environmental Management System
● OHSMS18000 Health and Safety System
Our Patents:
Our production and quality testing capabilities include:
● Automatic foil winding
● Digital silicone steel sheeting and slitting
● Fully automatic vacuum drying oven and varnish line
● HAEFLY partial discharge tester
● HAEFLY power analyzer
● HAEFLY harmonic analyzer
The result is a superior product of high efficiency, lower power dissipation and low noise to maximize your infrastructure investment.
