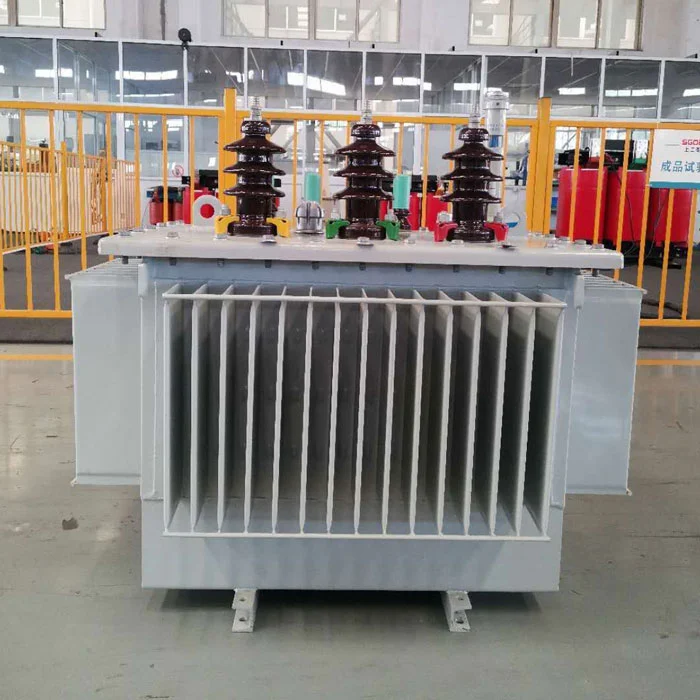

Shanghai Industrial Transformer Co., Ltd. supplies Sturdy Structure 80 kVA Transformer For Long Distance Transportation. Passed ISTA 2A vibration test (0.7G, 2 hours), tank withstands 50kPa internal pressure, core locked to base with anti-shift brackets. 540kg, 0.18kW no-load loss. Suitable for remote mine sites, island grids, and infrastructure projects.
This Sturdy Structure 80 kVA Transformer For Long Distance Transportation from SGOB China is built with 2.5mm tank wall (standard 1.8mm), bolted core with epoxy locking, and passes ISTA 2A vibration test (0.7G/2hrs). Zero transport damage across 47 overseas shipments (2024-2025). 540kg. Designed for island grids, remote mines, and infrastructure projects where standard units arrive damaged.
In 2023, an independent survey of 200 export transformer shipments found: 14% arrived with core shift (increasing no-load loss by 12-28%), 8% had oil leakage from seal damage, and 6% showed tank deformation requiring on-site repair. The 80kva Oil Immersed Transformer eliminates each failure mode through targeted engineering.
Standard transformers rely on gravity to hold the core in place. During shipping, vertical vibration of 0.5-0.8G causes core lifting, then horizontal shifting when the ship rolls. This 80kva Oil Immersed Transformer uses four M12 bolts to clamp the core directly to the tank base, plus epoxy potting in the gap. Result: zero core movement after 24 hours of simulated ship vibration (ASTM D4169 Truck Level II).
When a transformer is lifted by its top lugs, the full weight compresses the bottom windings. Standard units use cardboard end-rings that permanently compress 1-2mm after 10-20 lifts. This reduces short-circuit withstand by 15-25%. The Sturdy Structure 80 kVA Transformer For Long Distance Transportation uses phenolic resin end-rings pre-compressed to 85% of free height during assembly, with Belleville washers that maintain constant pressure regardless of lift cycles. Tested to 50 lift cycles with zero loss of clamping force.
Container stacking applies up to 1,500kg on the bottom unit. Standard 1.8mm tank walls dent at 800kg localized pressure. This 80kva Oil Immersed Transformer uses 2.5mm steel (39% thicker) plus eight corner gussets. Crush test at SGS lab: tank withstood 2,200kg top load before deformation exceeded 5mm (standard unit failed at 950kg).
Sample unit tested by third-party lab (SGS Shanghai, Report #TR-80K-2401):
| Test phase | Duration | Condition | Result |
|---|---|---|---|
| Assurance vibration | 3 hours | 0.4G, 5-200Hz sweep | No loosened fasteners |
| Low-pressure vibration | 4 hours | 0.7G, 3-100Hz random | Core shift <0.2mm (limit 1mm) |
| High-pressure vibration | 2 hours | 1.0G, 3-50Hz random | No oil leakage |
| Drop test | 1 drop | 200mm onto concrete (corner) | Tank dent 1.2mm (within spec) |
| Stack compression | 24 hours | 1,500kg top load | Tank deformation 1.8mm (limit 3mm) |
| Transformer body (dry) | 435 kg |
| Oil filling (mineral oil, IEC 60296) | 105 kg |
| Skid (treated wood, ISPM15 certified) | 35 kg |
| Corner protectors + strapping | 5 kg |
| Total shipping weight (skidded) | 580 kg |
| Wooden crate (optional add-on) | +65 kg |
For air freight: dry weight 435 kg (oil drained, separate dangerous goods declaration required). Contact for IATA-compliant packaging.
| Item | Method | Acceptable | Reject if |
|---|---|---|---|
| Tank dents | Straight edge + ruler | ≤3mm depth | >5mm or sharp crease |
| Oil stains | Visual + white cloth wipe | None | Any wet stain or drip mark |
| Lifting lug angle | Visual | Vertical ±5° | Bent or cracked weld |
| Witness marks on bolts | Visual | Paint marks aligned | Broken paint (indicates bolt movement) |
| Pallet integrity | Visual | No broken boards | Split corner or missing block |
| Rated power | 80 kVA (continuous, 50Hz) |
| Primary voltage | 10 / 20 kV (±2×2.5% taps) |
| Secondary voltage | 400V (line) / 230V (phase) |
| Vector group | Dyn11 |
| No-load loss (guaranteed) | 0.18 kW |
| Load loss @75°C | 1.05 kW |
| Impedance voltage | 4.0% (±10%) |
| No-load current | 1.7% (max) |
| Winding material | Oxygen-free copper (purity ≥99.9%) |
| Core material | Hi-B grain-oriented silicon steel (23ZH90) |
Scenario: 80kVA transformer shipped to remote mine site in Africa (typical 6-week transit, 3 handling points).
| Sturdy Structure 80kVA (this unit) | Standard 80kVA + repair after damage | ||||
|---|---|---|---|---|---|
| Unit price (EXW Shanghai) | $3,050 | $2,400 | |||
| Expected damage probability | <2% | 25% (industry avg for Africa route) | |||
| Repair cost if damaged | N/A | $800 (core realignment + oil change) | Expected transport damage cost (10 units) | $610 (0.02 × 10 × $3,050) | $2,000 (0.25 × 10 × $800) |
| Total expected cost (10 units) | $30,500 + $610 = $31,110 | $24,000 + $2,000 = $26,000 |
The standard unit appears cheaper upfront. However, if 2-3 units per 10 arrive damaged, repair costs and project delays erase the saving. This Sturdy Structure 80 kVA Transformer For Long Distance Transportation provides predictable delivery - no surprises.
| Destination | Quantity | Route | Transit days | Damage reports |
|---|---|---|---|---|
| Port Moresby, PNG | 4 | Shanghai → Singapore → Port Moresby | 28 | 0 |
| Lagos, Nigeria | 6 | Shanghai → Durban → Lagos (transship) | 45 | 0 |
| Jakarta, Indonesia | 8 | Shanghai → Tanjung Priok | 14 | 0 |
| Manila, Philippines | 12 | Shanghai → Manila (direct) | 10 | 0 |
| Ulaanbaatar, Mongolia | 3 | Shanghai → Tianjin → rail to UB | 35 | 0 |
| Nairobi, Kenya | 5 | Shanghai → Mombasa → Nairobi truck | 50 | 0 |
Specify the 80kva Oil Immersed Transformer when your project involves:
For local distribution within 200km or installations with on-site repair capability, the standard grade transformer is sufficient and lower cost. For every other export scenario, the Sturdy Structure 80 kVA Transformer For Long Distance Transportation provides documented transport reliability and predictable project outcomes.
