A 200kVA dry transformer plays a crucial role in stable and efficient power distribution across commercial buildings, industrial facilities, hospitals, and infrastructure projects. Unlike oil-immersed transformers, dry-type transformers eliminate liquid insulation, reducing fire hazards and environmental risks while ensuring easier maintenance and safer operation. This article provides a comprehensive guide to understanding the structure, working principles, advantages, applications, technical specifications, installation considerations, and long-term value of a 200kVA dry transformer. It is designed to help engineers, procurement managers, and project planners make informed decisions while solving common pain points such as safety concerns, energy efficiency, installation limitations, and maintenance costs.
In modern electrical infrastructure, stable voltage conversion is essential for ensuring uninterrupted power supply. Among various transformer capacities used in mid-scale industrial and commercial applications, the 200kVA dry transformer stands out as one of the most balanced solutions in terms of performance, safety, and cost efficiency.
As cities expand and industries become more dependent on sensitive electronic equipment, demand for safer and more environmentally friendly power solutions has increased. Dry-type transformers eliminate the use of oil-based cooling systems, significantly reducing fire risk and environmental contamination while maintaining excellent electrical performance.
Whether used in hospitals requiring uninterrupted power, shopping malls with high energy loads, or industrial plants with heavy machinery, the 200kVA dry transformer ensures reliability in demanding environments.

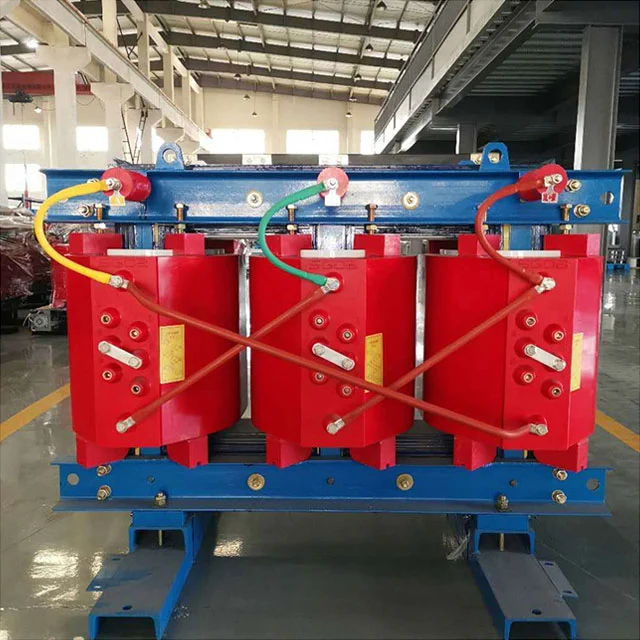

A 200kVA dry transformer is an electrical device designed to transfer electrical energy between circuits while stepping voltage levels up or down. The "200kVA" rating indicates its capacity to handle up to 200 kilovolt-amperes of load.
Unlike oil-immersed transformers, dry transformers use air and solid insulation materials such as epoxy resin or cast resin for cooling and insulation. This makes them safer for indoor applications and areas with strict fire safety regulations.
In essence, it is a static electrical device that operates without moving parts, ensuring high reliability and long operational life with minimal maintenance requirements.
The versatility of the 200kVA dry transformer makes it suitable for a wide range of applications:
Its ability to perform consistently under varying load conditions makes it a preferred choice for critical infrastructure.
Choosing a 200kVA dry transformer offers multiple advantages:
These benefits make it especially attractive for facilities where downtime and maintenance interruptions must be minimized.
Many facility managers and engineers face recurring challenges in power distribution systems. The 200kVA dry transformer addresses these issues effectively:
| Parameter | Specification |
|---|---|
| Rated Capacity | 200 kVA |
| Primary Voltage | 6kV / 10kV / 11kV (customizable) |
| Secondary Voltage | 400V / 415V |
| Cooling Method | Air Natural Cooling (AN) / Forced Air (AF) |
| Insulation Class | Class F / Class H |
| Frequency | 50Hz / 60Hz |
| Noise Level | ≤ 55 dB |
| Efficiency | Up to 98% |
| Feature | Dry Transformer | Oil-Immersed Transformer |
|---|---|---|
| Cooling Medium | Air / Resin | Insulating Oil |
| Fire Safety | High | Moderate |
| Maintenance | Low | Higher |
| Environmental Impact | Eco-friendly | Risk of oil leakage |
| Installation | Indoor-friendly | Mostly outdoor |
Proper installation ensures long-term reliability and performance. Key considerations include:
Although dry transformers require less maintenance, periodic checks are essential:
Safety is one of the strongest advantages of a dry transformer system. Its design eliminates fire hazards associated with oil leakage. Additionally, compliance with international standards ensures reliability in critical infrastructure environments such as hospitals and data centers.
When selecting a 200kVA dry transformer, consider the following factors:
Q1: What is the lifespan of a 200kVA dry transformer?
Typically, it can last 20–30 years with proper maintenance.
Q2: Can it be used outdoors?
It is primarily designed for indoor use, but protective enclosures allow limited outdoor installation.
Q3: Is it more expensive than oil transformers?
Initial cost may be higher, but lower maintenance and safety benefits reduce long-term costs.
Q4: Does it require frequent servicing?
No, only periodic inspection and basic cleaning are needed.
Q5: Is it suitable for sensitive equipment?
Yes, it provides stable voltage and low noise, making it ideal for sensitive systems.
The 200kVA dry transformer represents a modern solution for safe, efficient, and environmentally responsible power distribution. Its robust design, low maintenance requirements, and adaptability across various industries make it a preferred choice for engineers and facility managers worldwide.
By eliminating oil-based cooling systems and enhancing safety standards, it addresses many traditional challenges associated with power transformation systems. Whether for commercial, industrial, or critical infrastructure use, this transformer ensures consistent performance and long-term value.
Shanghai Industrial Transformer Co., Ltd. specializes in manufacturing high-quality dry-type transformers designed for reliability, safety, and efficiency in demanding applications. With advanced production technology and strict quality control systems, we are committed to delivering power solutions that meet global standards.
If you are looking for a dependable partner for your next electrical infrastructure project, contact us today to learn more about our 200kVA dry transformer solutions and customized engineering support.
